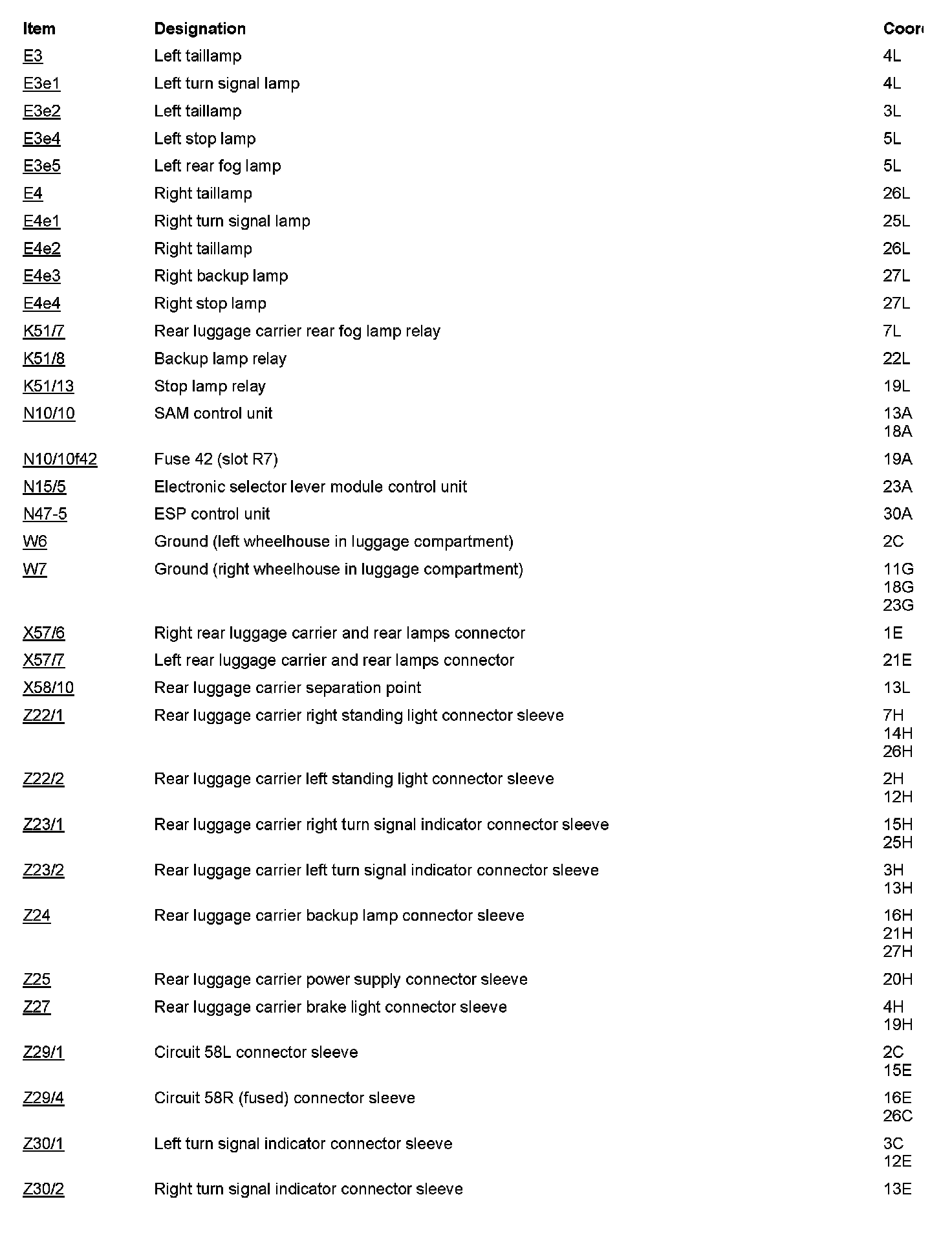

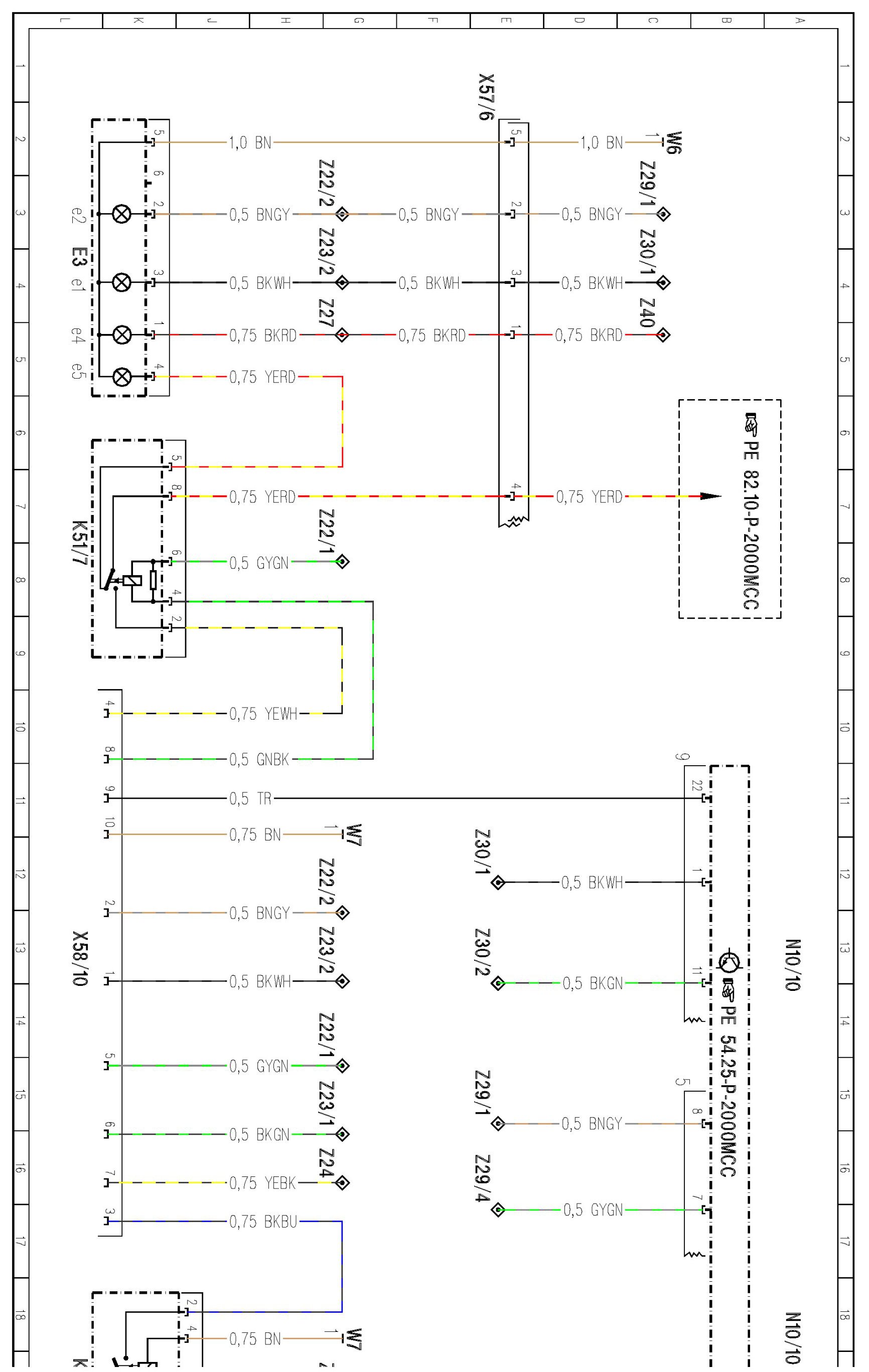

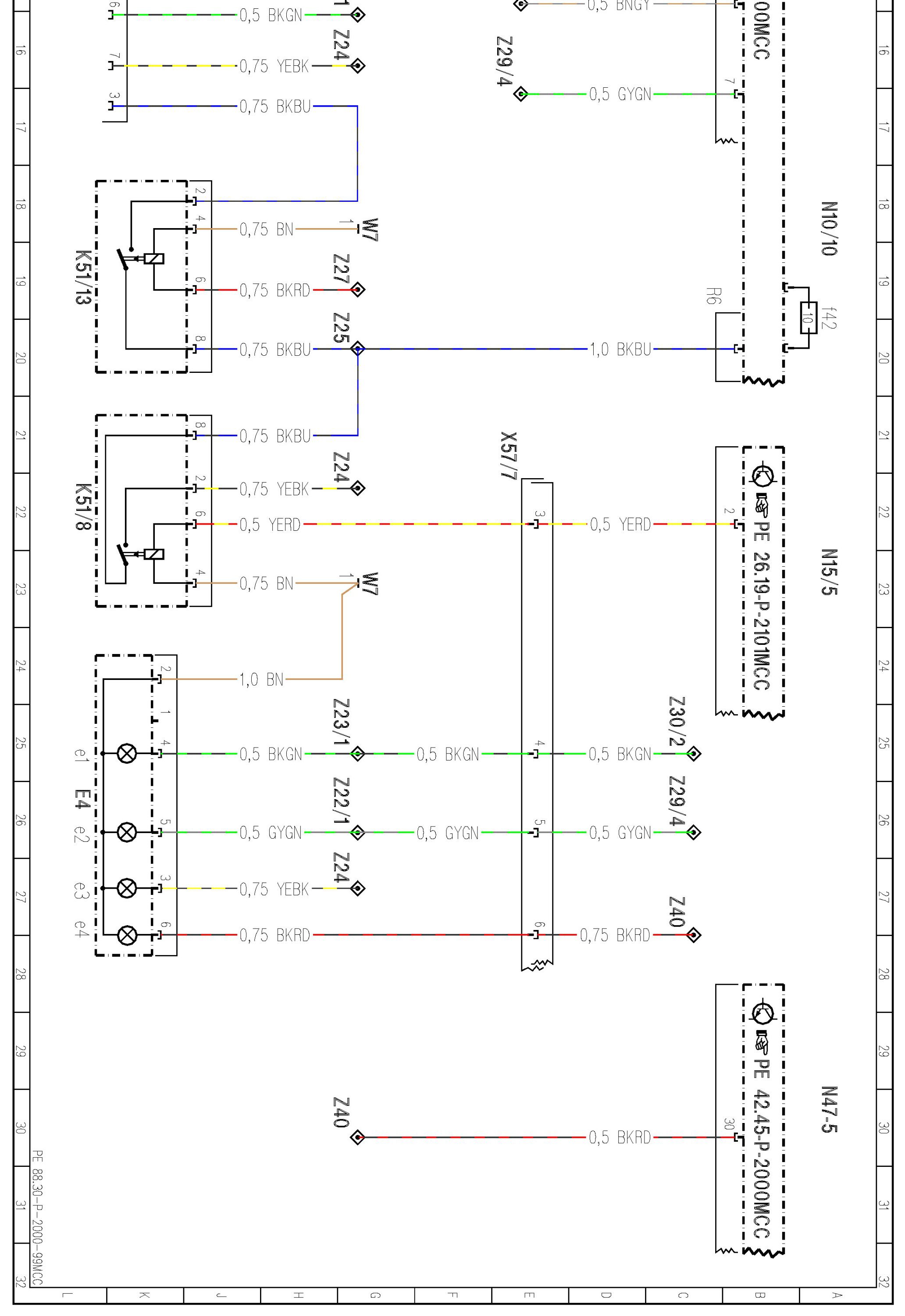

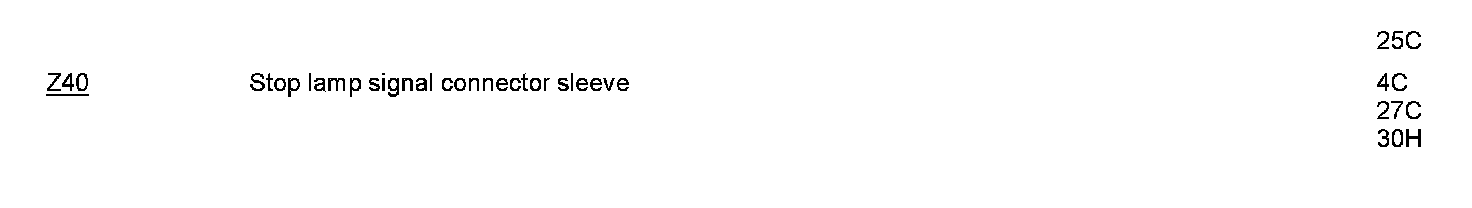

PE88.30-P-2000MCC Electric Wiring Diagram For Rear Luggage Carrier



PE88.30-P-2000MCC Electric Wiring Diagram For Rear Luggage Carrier

451 88 Exterior Equipment
MODEL 451 to 013644
