AR42.30-P-0714MCU Remove/Install Rear Axle Speed Sensor

AR42.30-P-0714MCU Remove/Install Rear Axle Speed Sensor

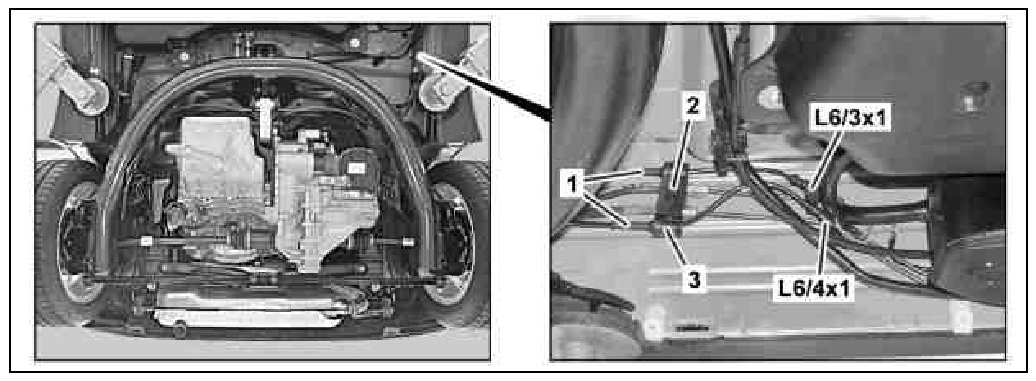

Shown on model 451.3







1 Electrical line
2 Plastic nuts
3 Folding clamp
L6/3x1 Rpm sensor connector
L6/4x1 Rpm sensor connector

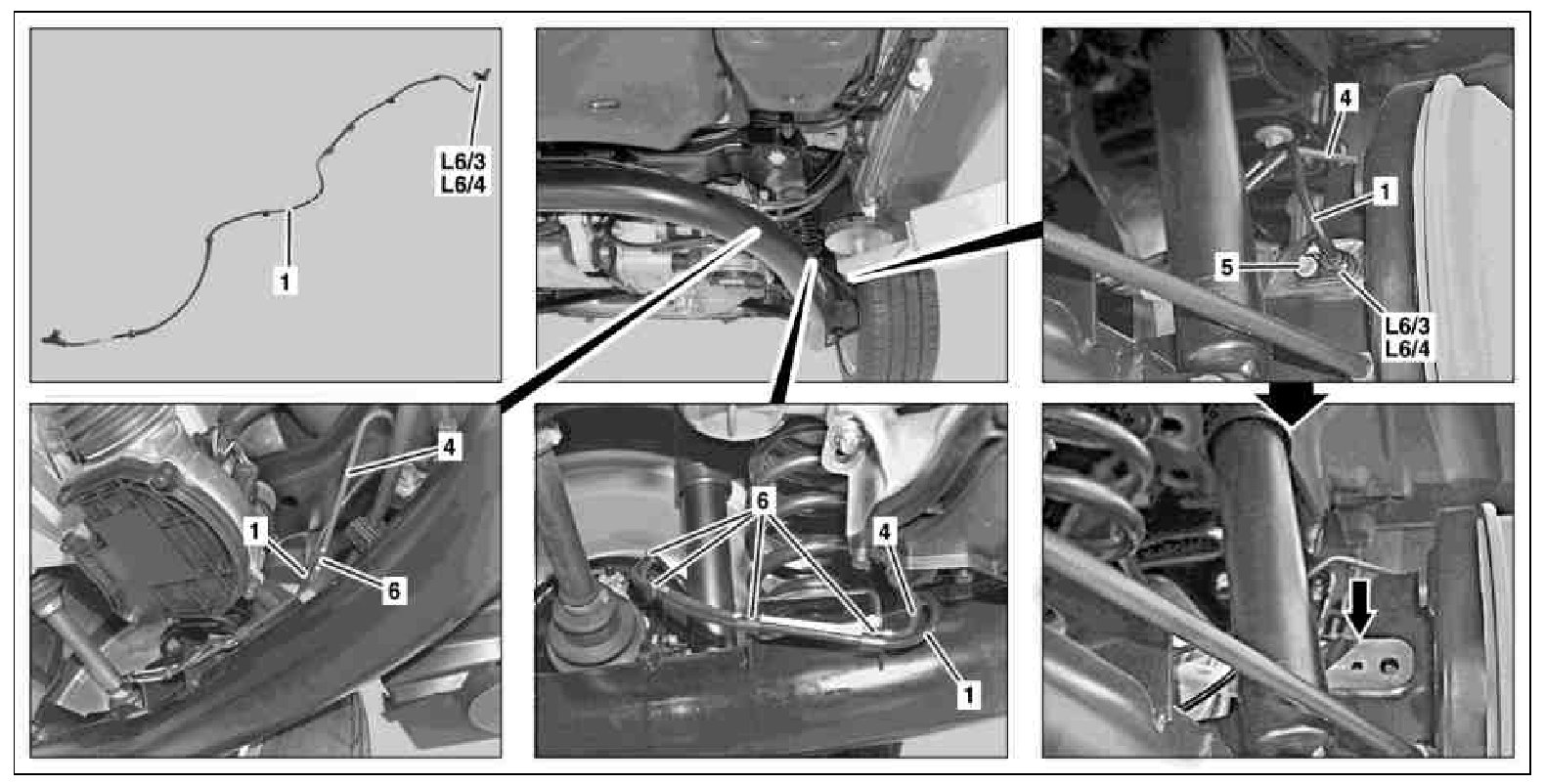

Shown on left side of vehicle on model 451.3







1 Electrical line
4 Brake line
5 Screw
6 Brackets
L6/3 Left rear rpm sensor
L6/4 right rear rpm sensor
