Vacuum Pump: Service and Repair

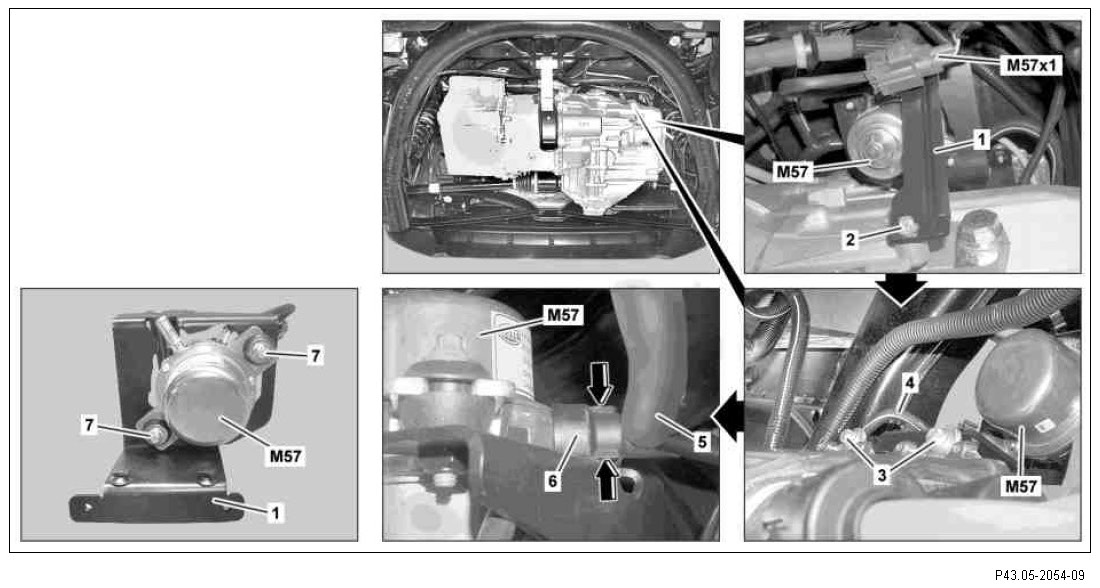

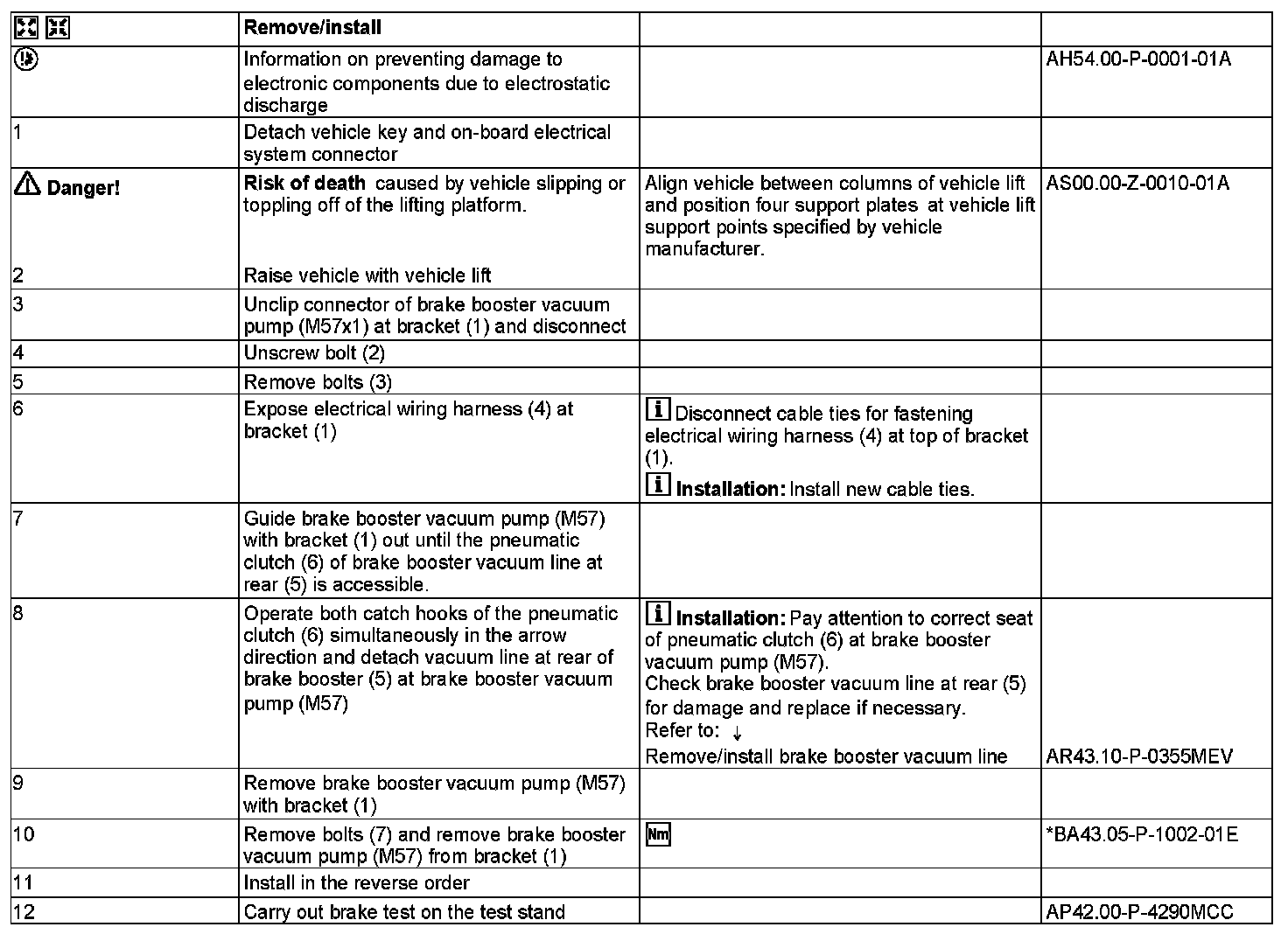

AR43.05-P-1320MEV Remove/install Vacuum Pump
- MODEL 451.391 /491 with ENGINE 780.009







1 Bracket
2 Screw
3 Bolts
4 Wiring harness
5 Vacuum line at rear of brake booster
6 Pneumatic clutch
7 Screw

M57 Vacuum pump brake booster
M57x1 Brake booster vacuum pump connector
