Vacuum Pump: Diagrams

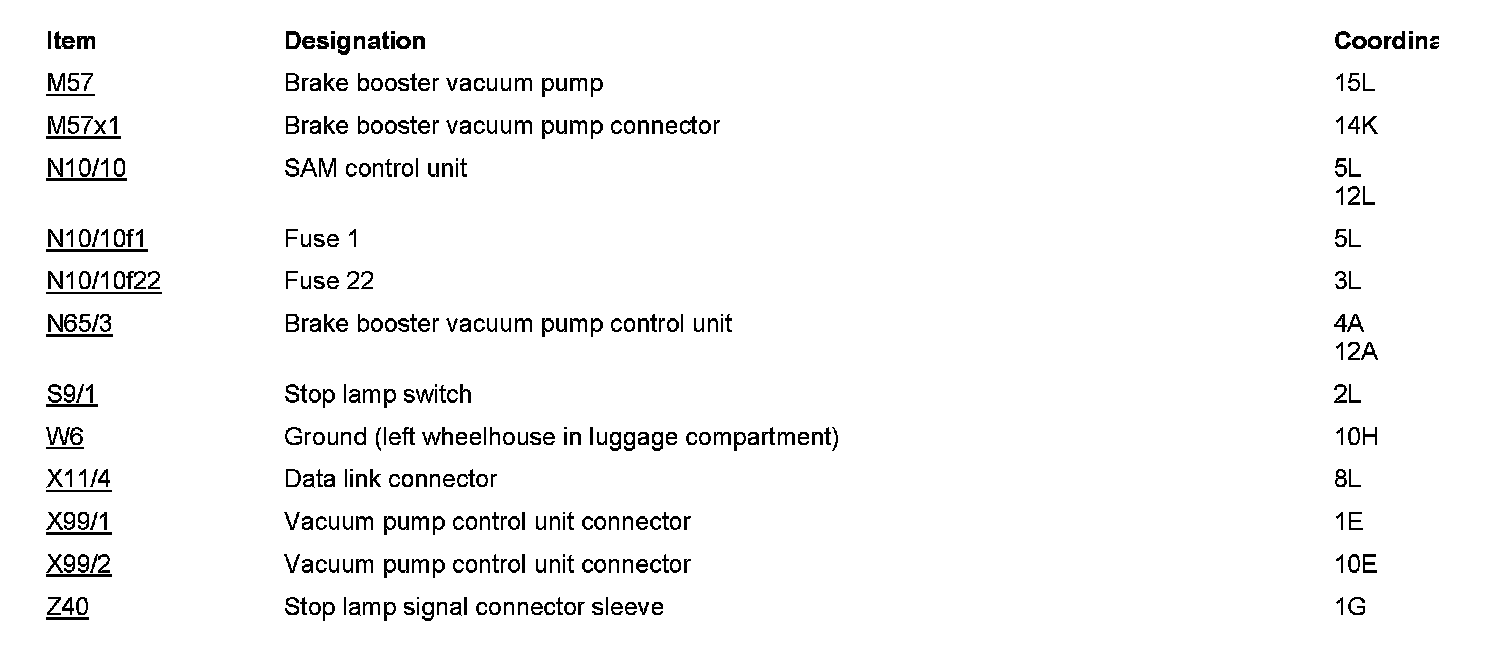

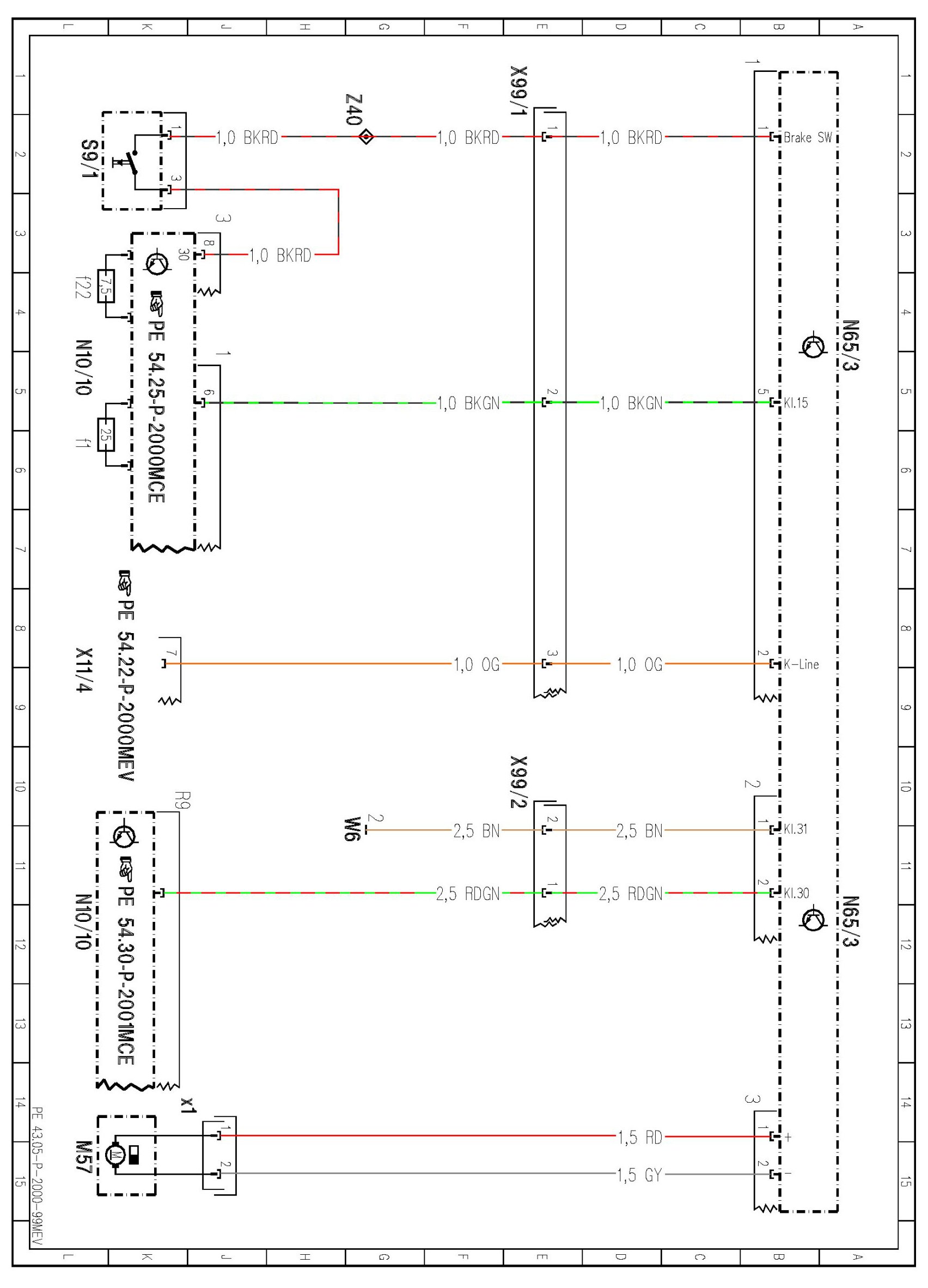

PE43.05-P-2000MEV Vacuum Pump Control Unit

451 43 Overview of wiring diagrams for brakes - pneumatic systems and auxiliary brakes
