Vacuum Brake Booster: Service and Repair

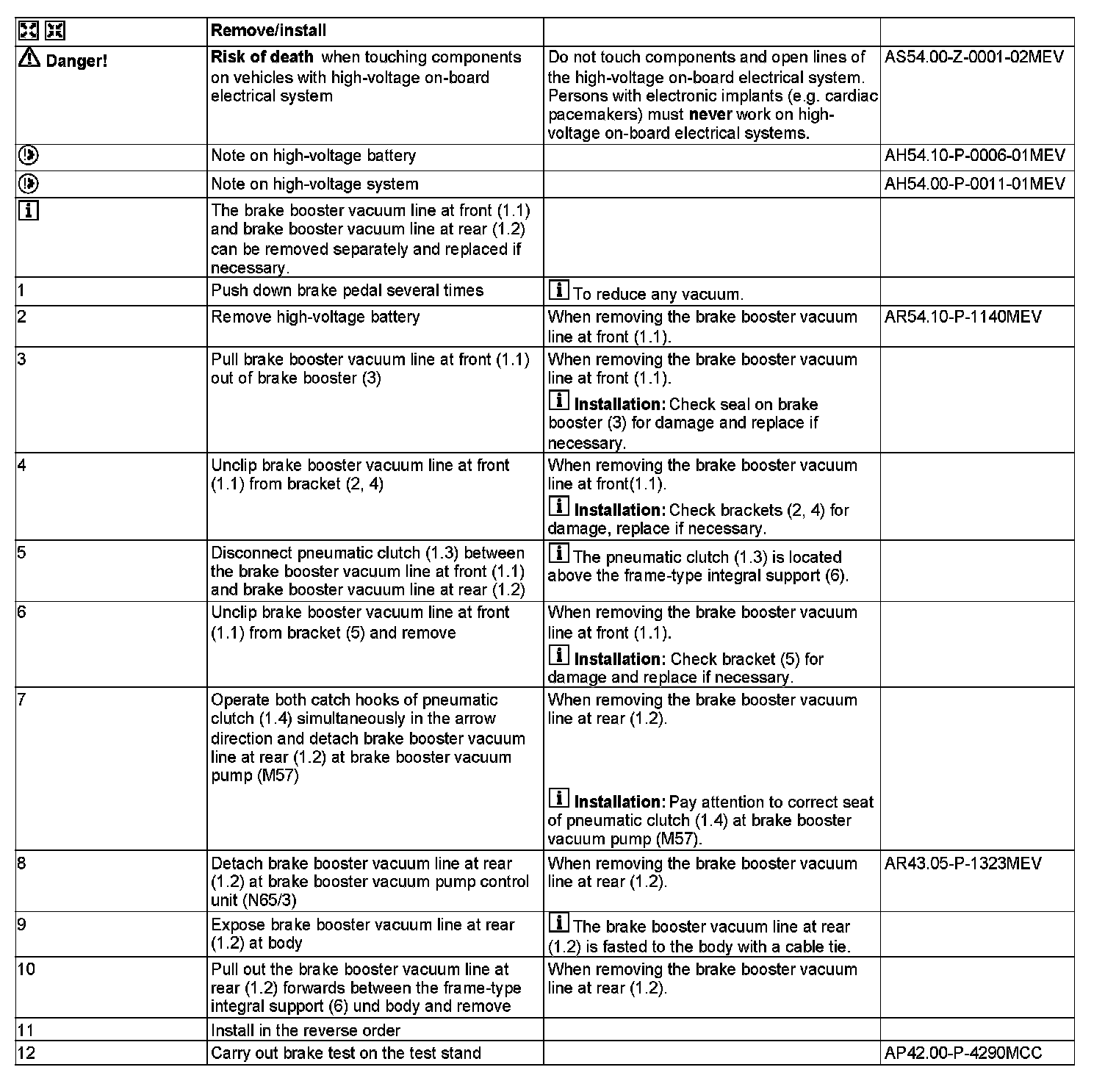

AR43.10-P-0355MEV Remove/install Brake Booster Vacuum Line
- MODEL 451.391/ 491

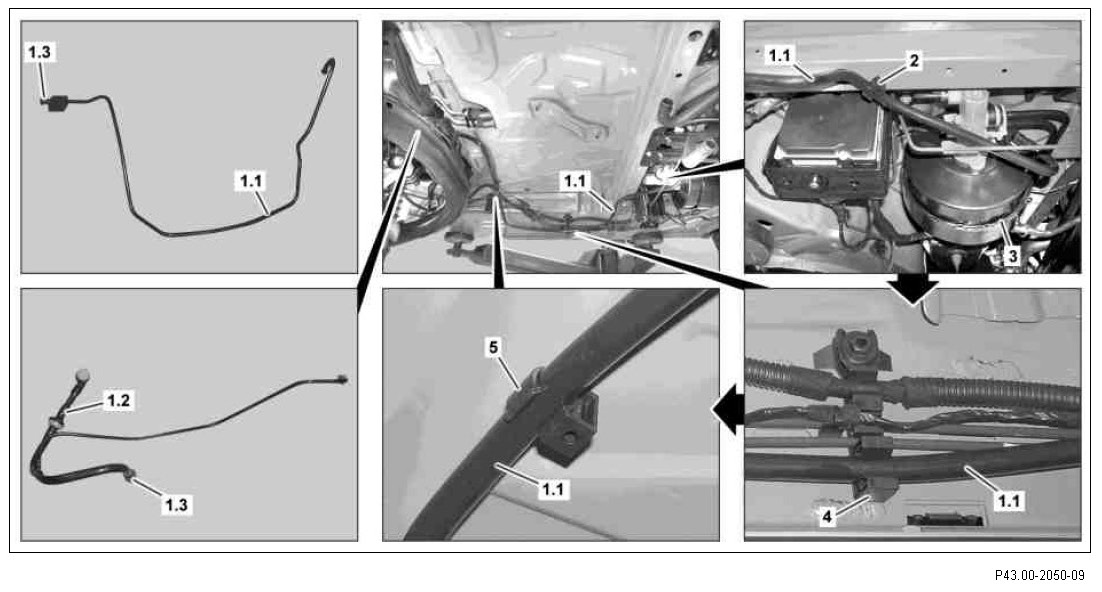

1.1 Vacuum line at front of brake booster
1.2 Vacuum line at rear of brake booster
1.3 Pneumatic clutch
2 Bracket
3 Brake booster
4 Bracket
5 Bracket

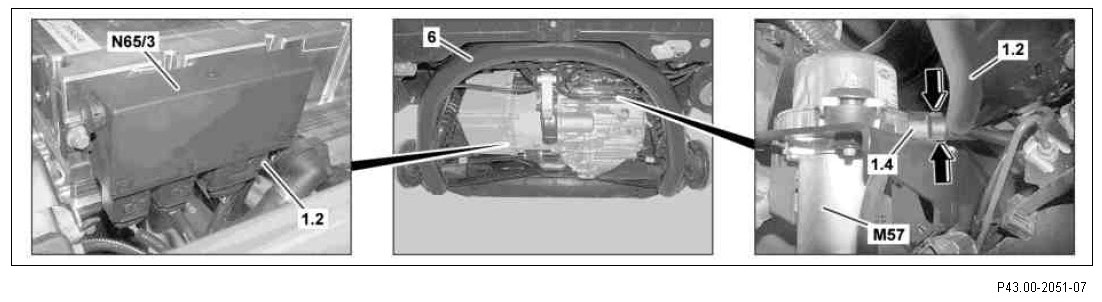

1.2 Vacuum line at rear of brake booster
1.4 Pneumatic clutch
6 Frame-type integral support

M57 Vacuum pump brake booster
N65/3 Brake booster vacuum pump control unit
