Brake Master Cylinder: Service and Repair

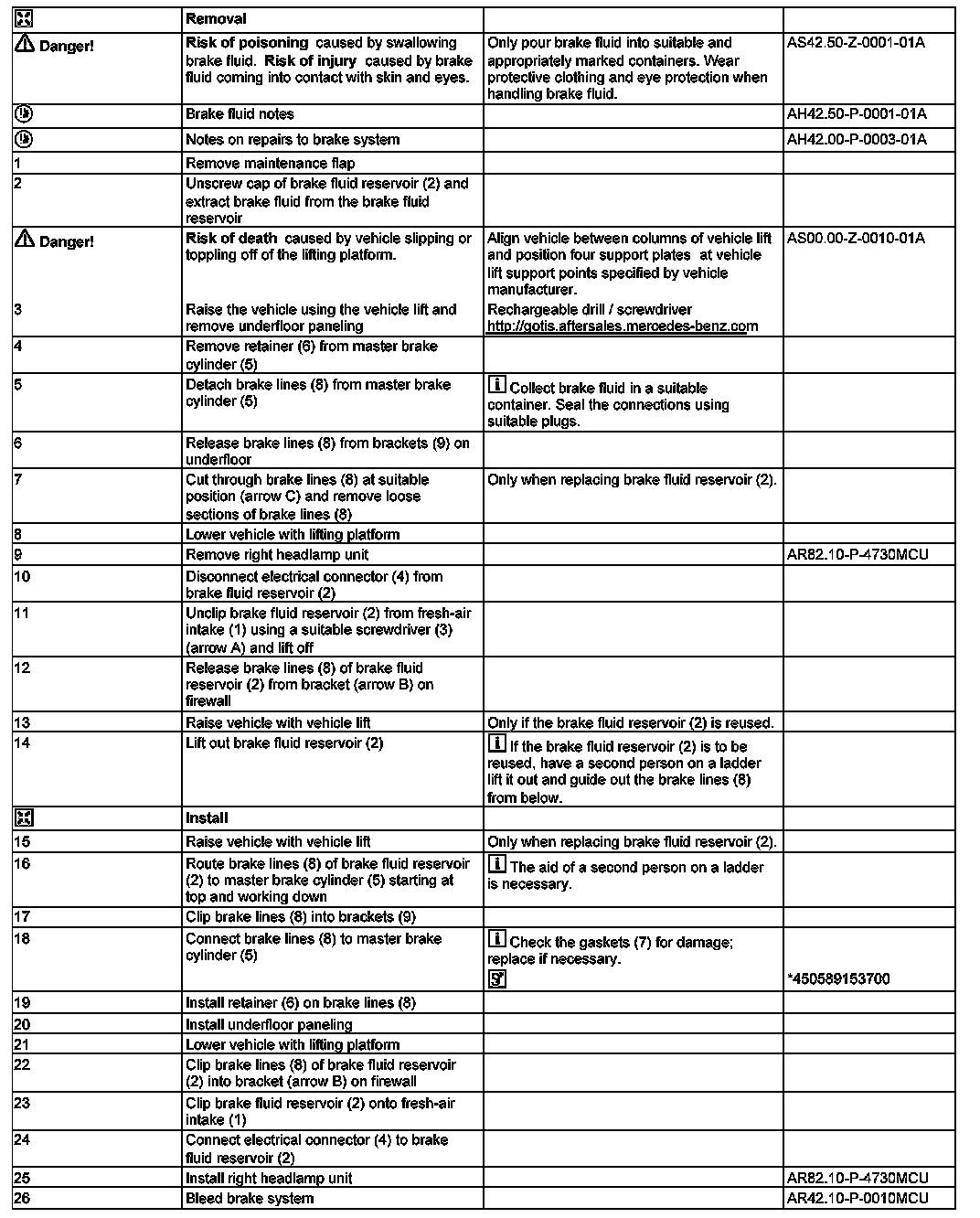

AR42.10-P-0301MCU Remove/Install Brake Fluid Reservoir

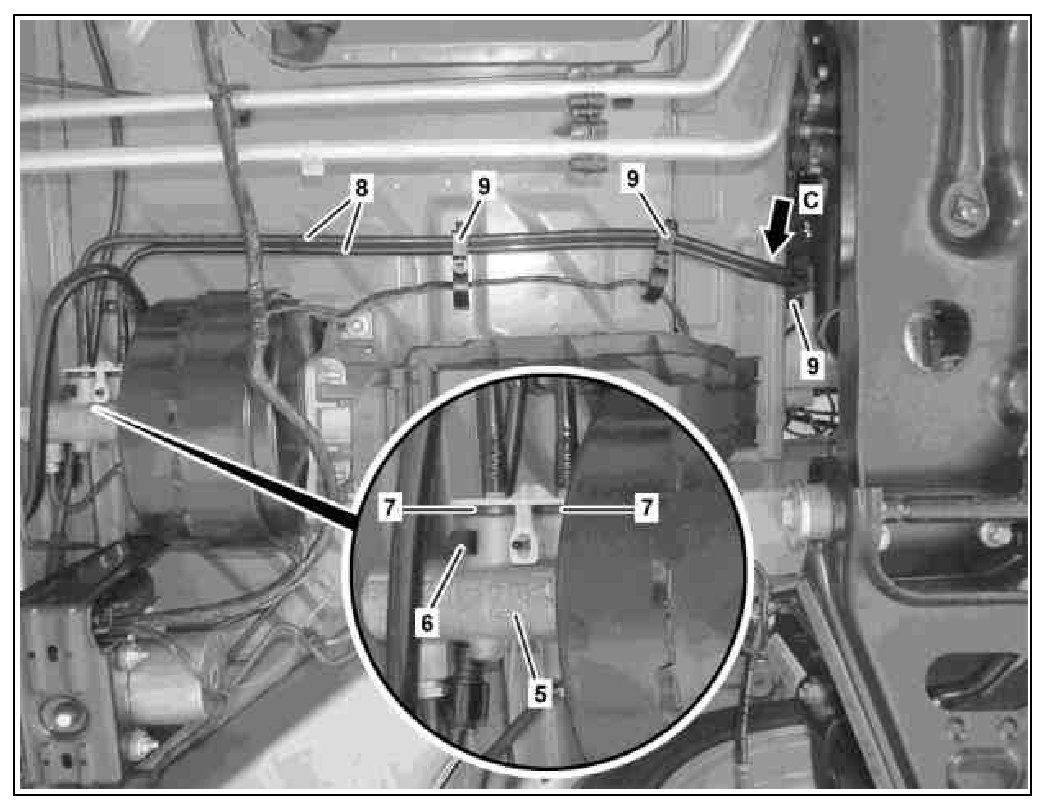

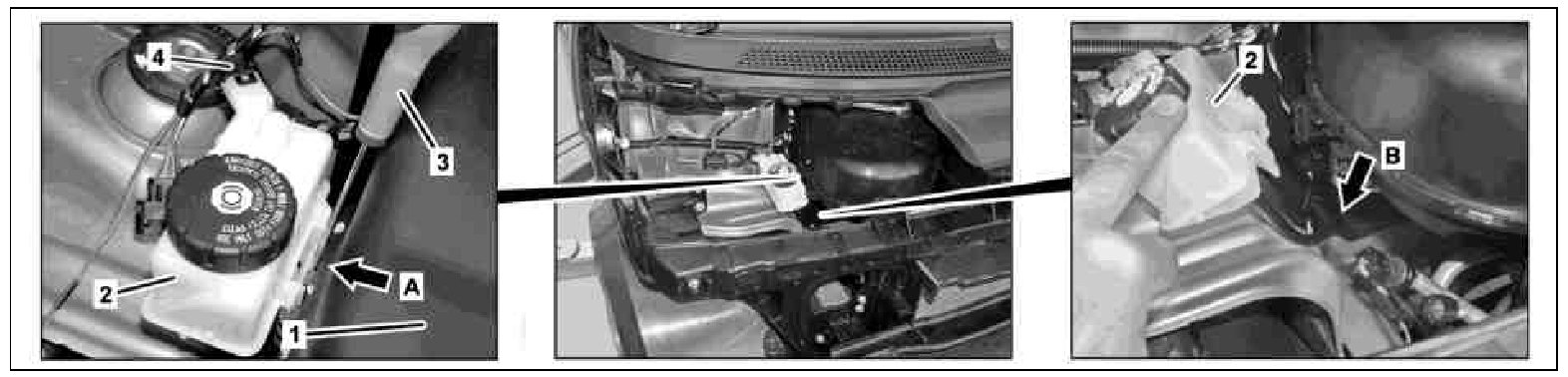

1 Fresh-air intake
2 Brake fluid reservoir
3 Screwdriver
4 Electrical connector







5 Master brake cylinder
6 Fuse
7 Gasket
8 Brake lines
9 Bracket

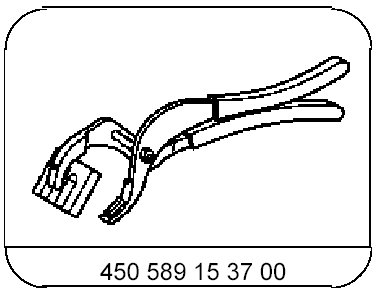

450 589 15 37 00, Pliers
