Disc Brake Dust / Mud Shield: Service and Repair

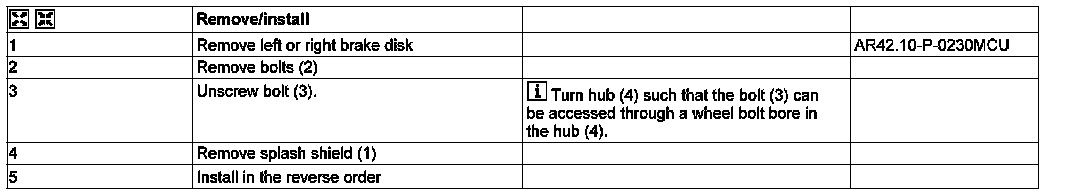

AR42.10-P-0233MCU Remove/Install Splash Shield On Front Brake

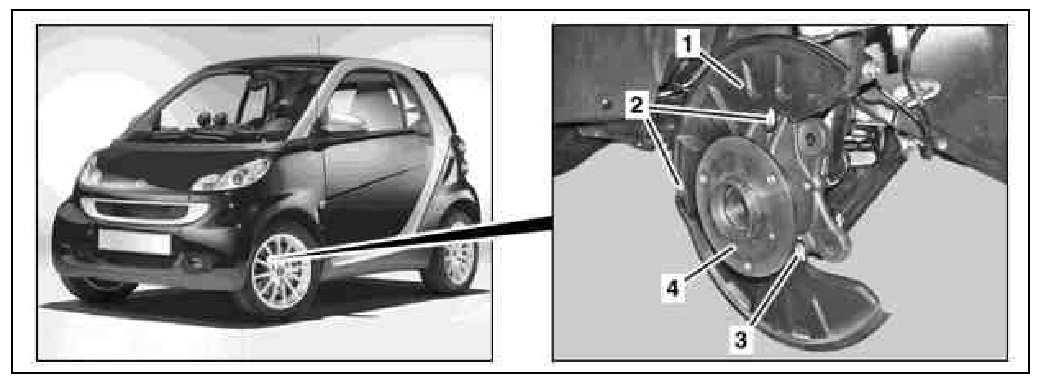

1 Splash shield
2 Bolts
3 Screw
4 Hub
