Brake Pad: Service and Repair

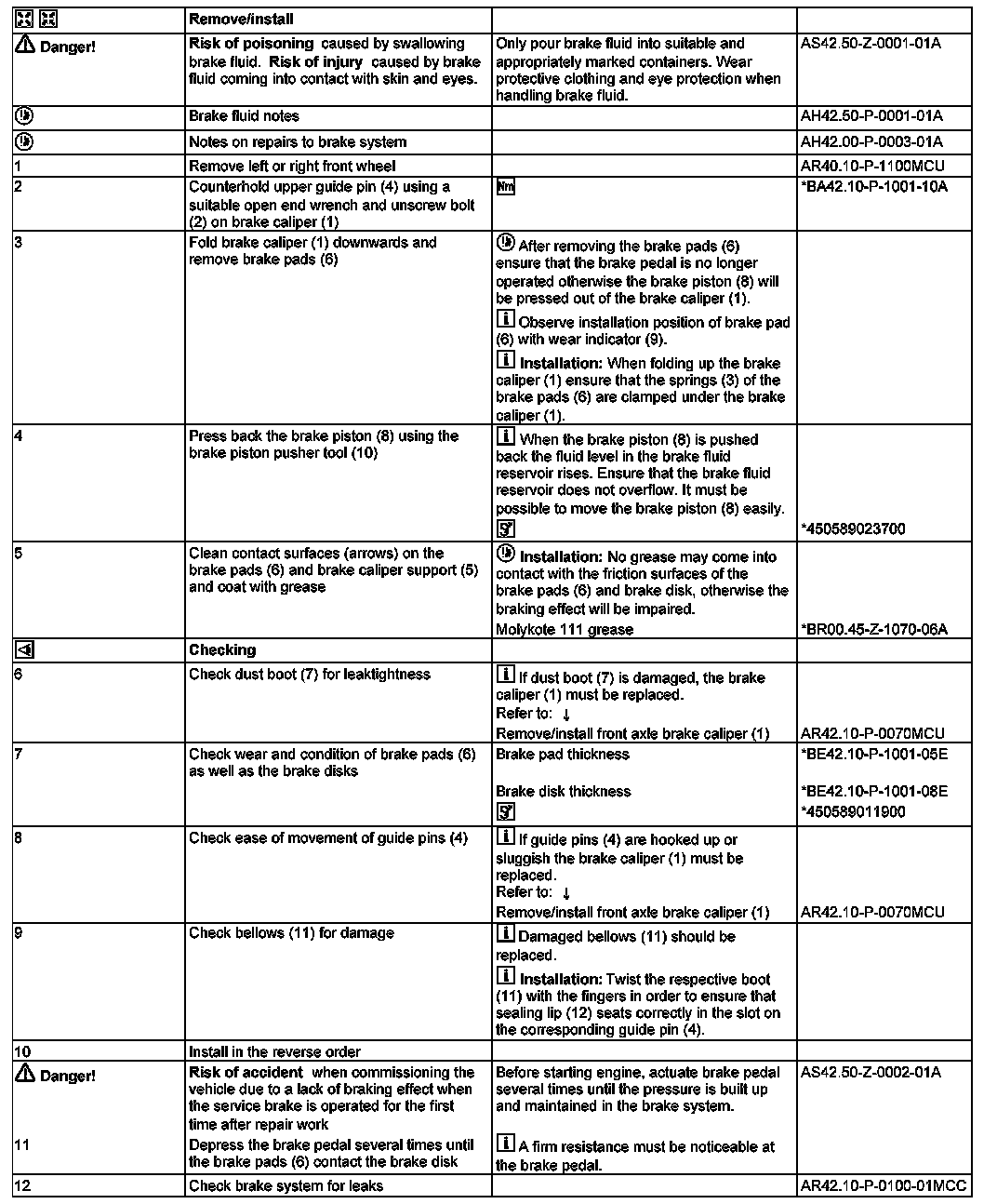

AR42.10-P-1600MCU Remove/Check/Install Front Axle Brake Pads

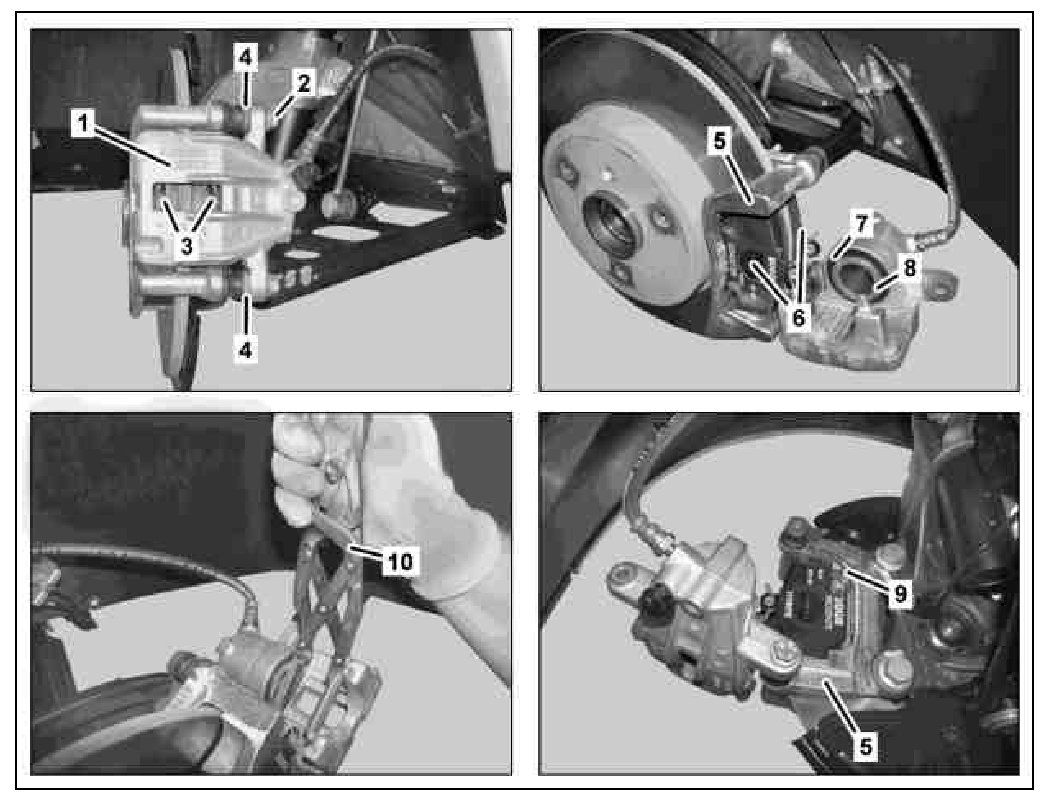

1 Brake caliper
2 Screw
3 Springs
4 Guide bolts
5 Caliper support
6 Brake pads
7 Dust boot
8 Brake piston
9 Wear indicator
10 Brake piston pusher tool







4 Guide bolts
5 Caliper support

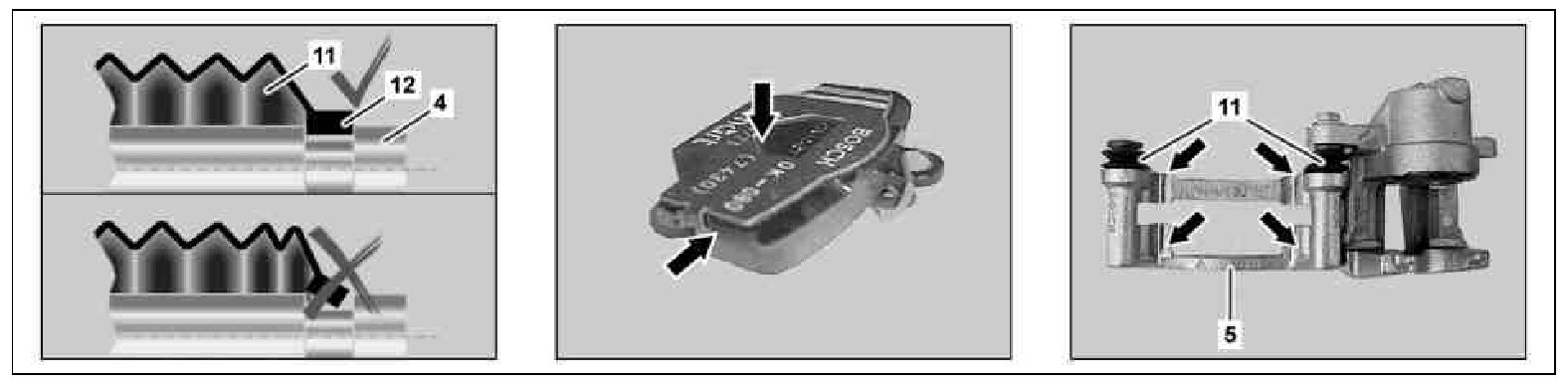

11 Bellows
12 Lip



























450 589 01 19 00, Vernier caliper

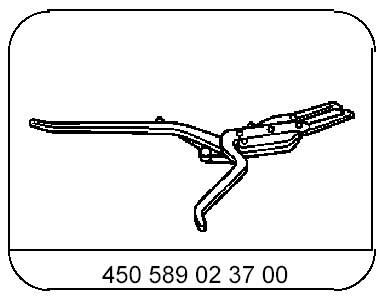

450 589 02 37 00, Brake piston resetting device
