AR42.10-P-0500MCU Remove/Install Brake Carrier



AR42.10-P-0500MCU Remove/Install Brake Carrier

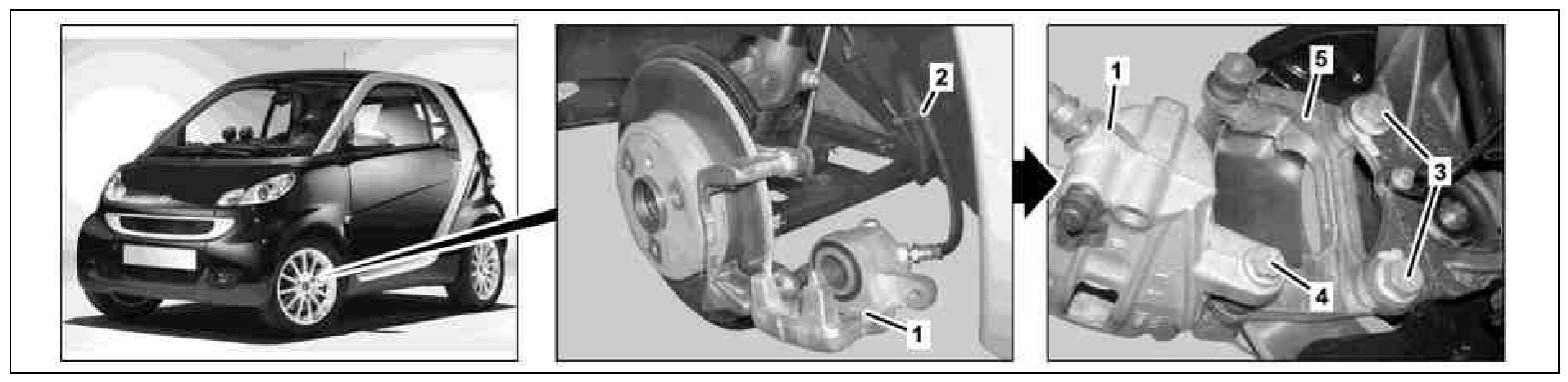

1 Brake caliper
2 Brake hose
3 Bolts
4 Screw
5 Caliper support
