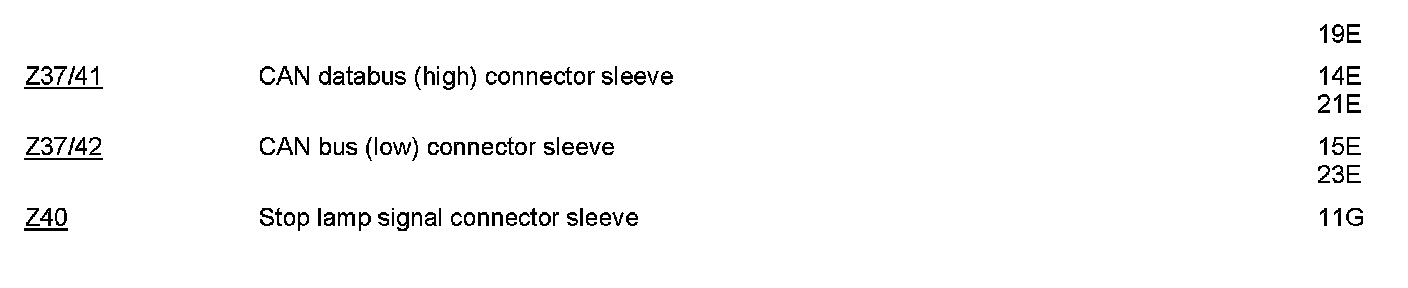

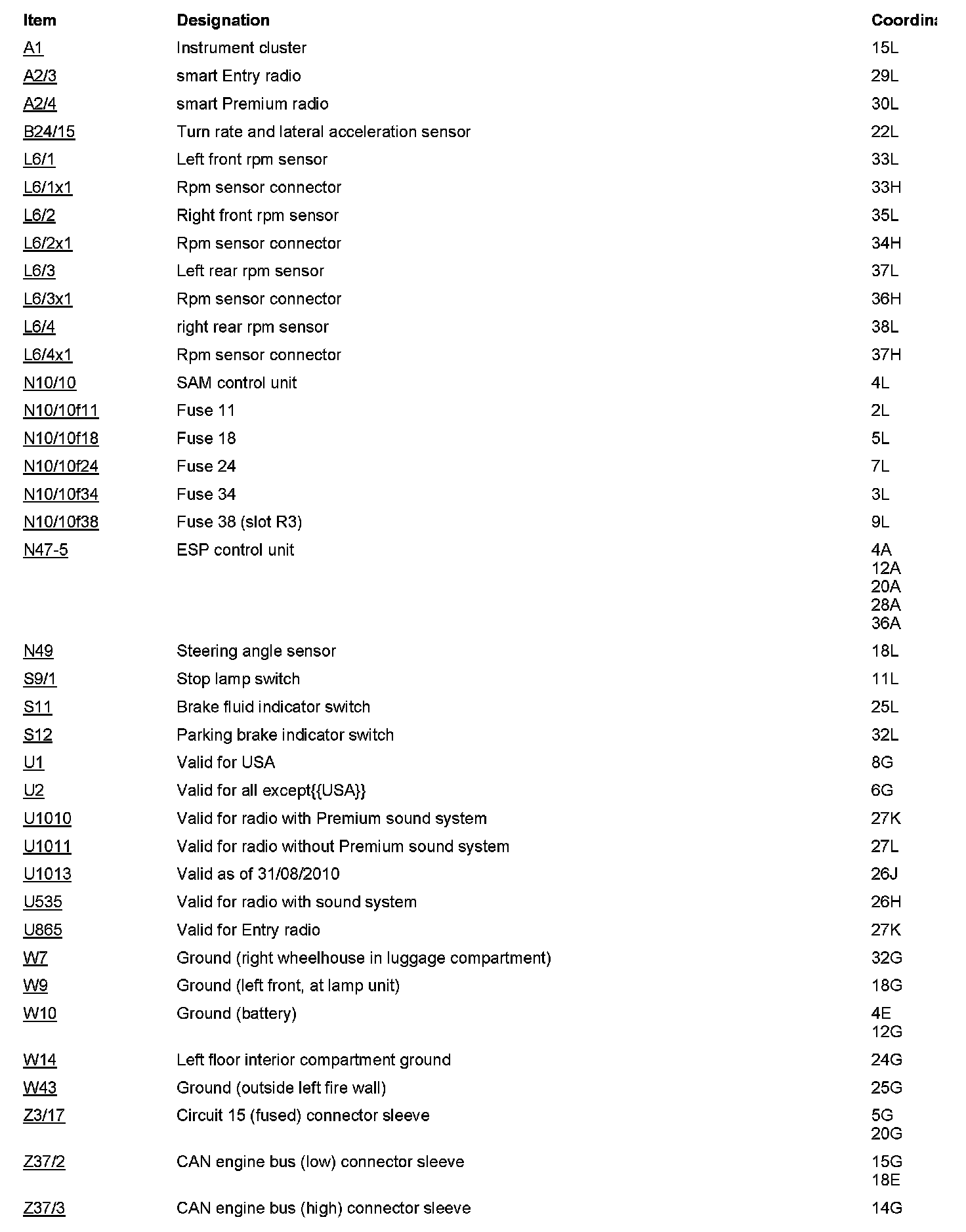

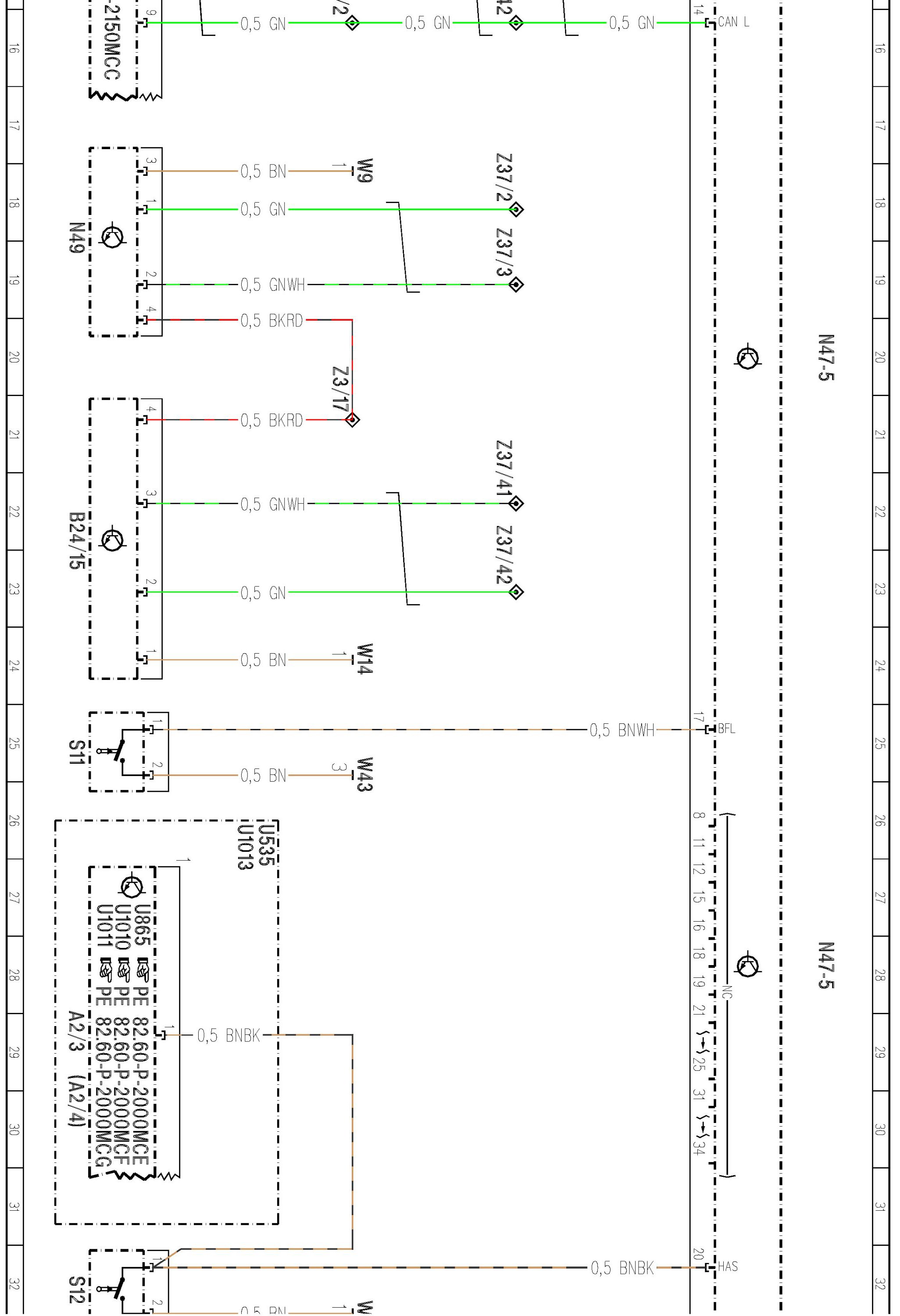

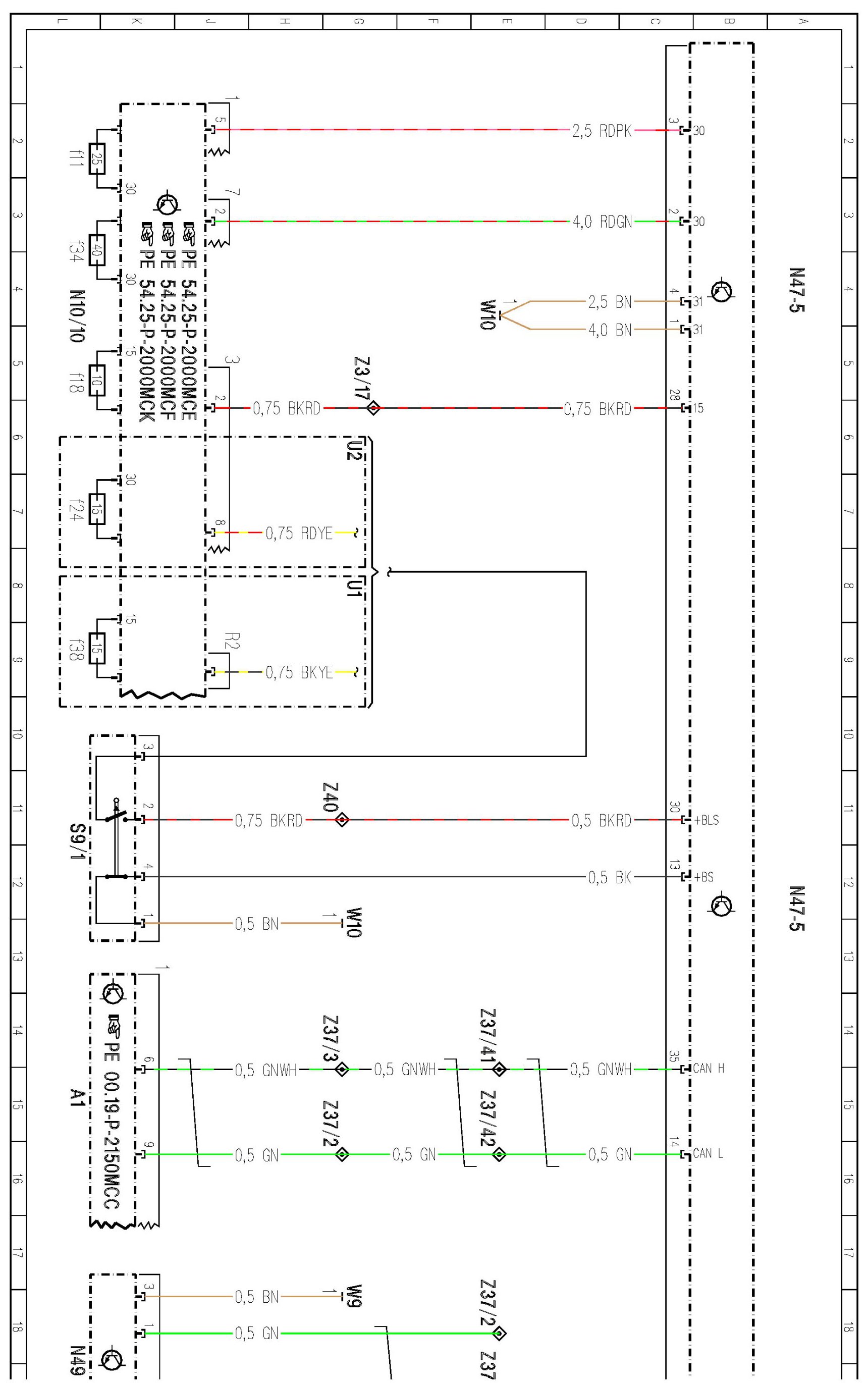

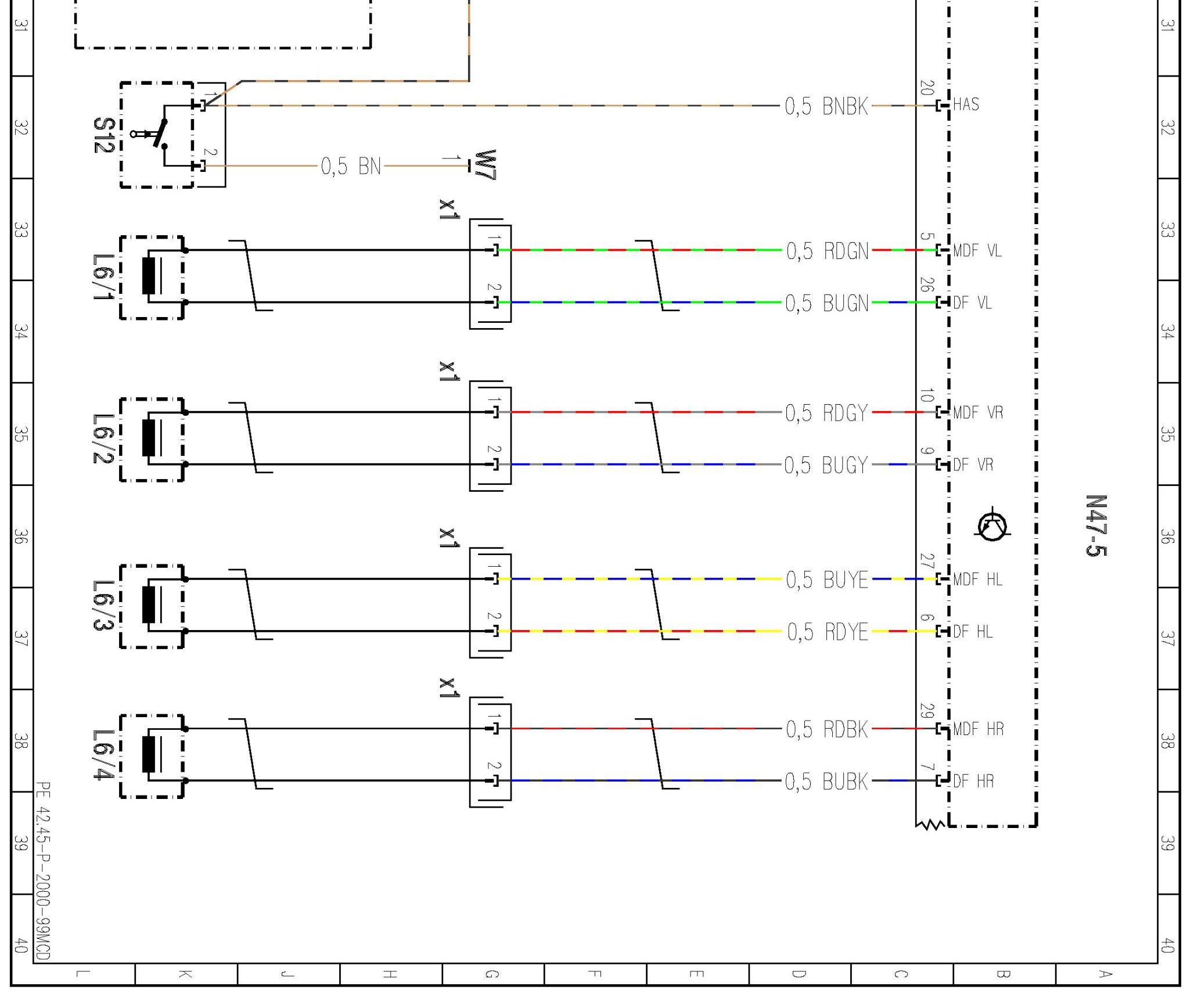

PE42.45-P-2000MCD Electronic Stability Program (ESP)



PE42.45-P-2000MCD Electronic Stability Program (ESP)

451 42 Brakes
Model 451 as of 013645, except 451.334/ 380/ 480
