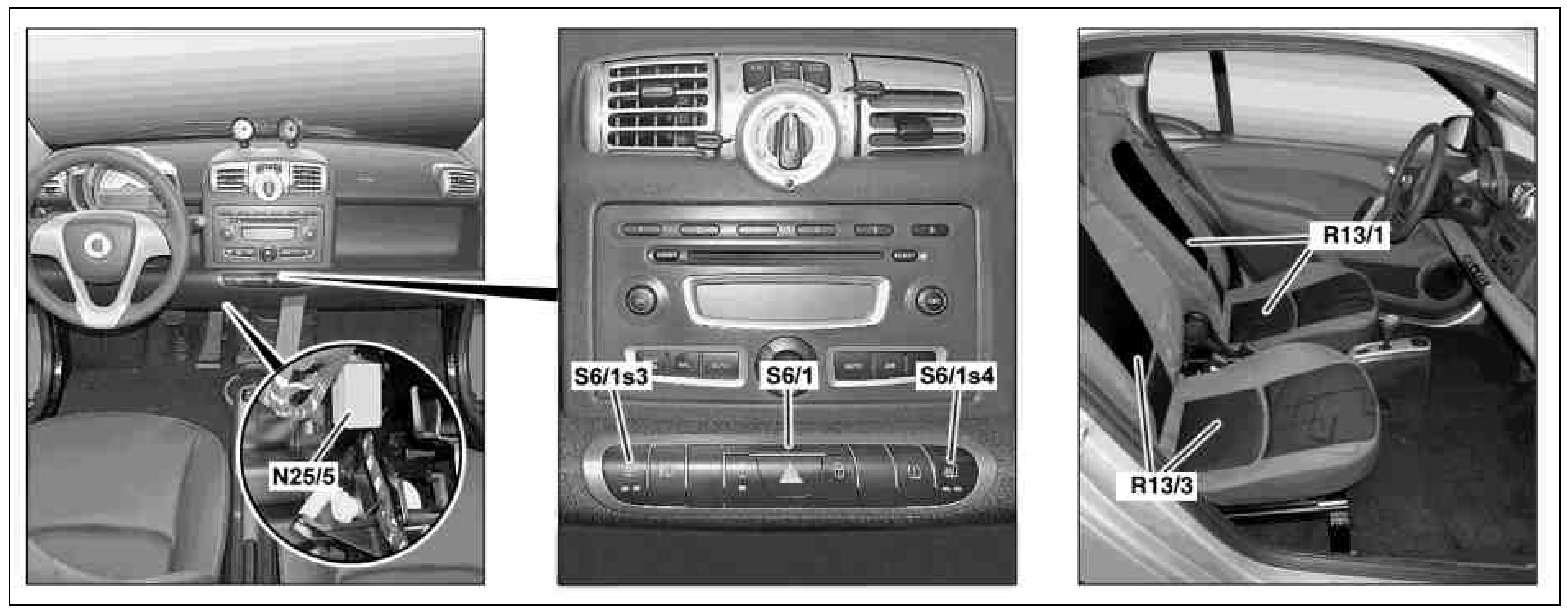

GF91.30-P-0003-02MCU Seat heater (SIH) location of components

GF91.30-P-0003-02MCU Seat Heater (SIH) Location Of Components
- with CODE (S17) Heated seats (FFO)







N25/5 Front HS [SIH] control unit
R13/1 Left seat heated cushion
R13/3 Right seat heated cushion
S6/1 Cockpit switch group
S6/1s3 Left seat heater switch
S6/1s4 Right seat heater switch
