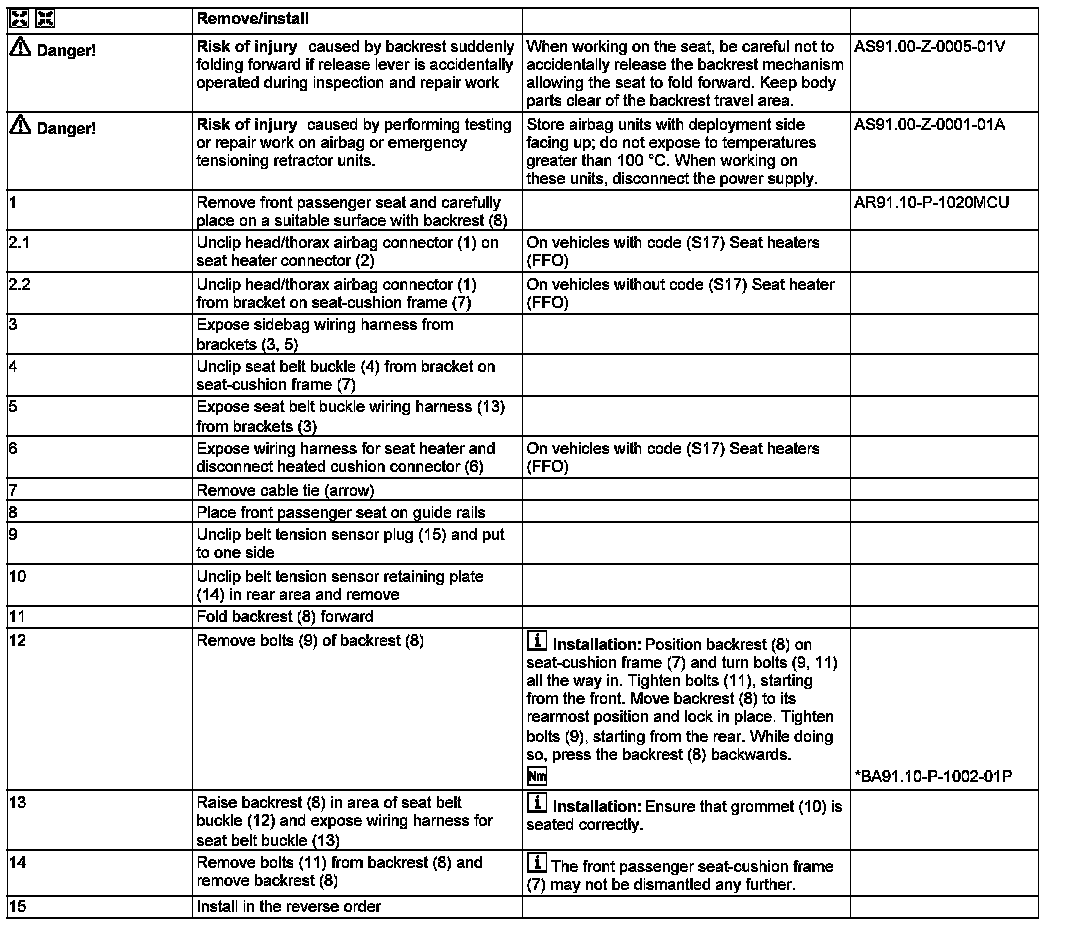

AR91.10-P-3334MCV Remove/Install Seat Cushion Frame

AR91.10-P-3334MCV Remove/Install Seat Cushion Frame
- Front passenger seat


Shown on code (S17) Seat heaters (FFO)







1 Head/thorax airbag connector
2 Seat heater plug (with code (S17) Seat heater (FFO))
3 Bracket
4 Seat belt buckle plug
5 Bracket
6 Heated cushion connector (with code (S17) Seat heater (FFO))
7 Seat cushion frame







7 Seat cushion frame
8 Seat backrest

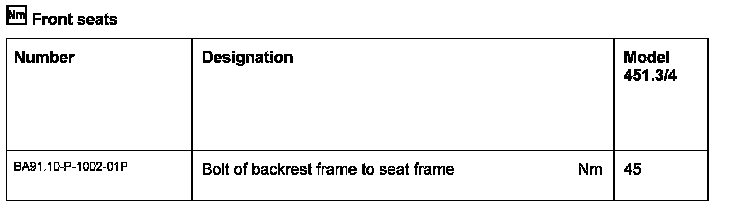

9 Screw
10 Grommet
11 Screw
12 Seat belt buckle
13 Seat belt buckle wiring harness
14 Belt tension sensor retaining plate
15 Belt tension sensor plug
