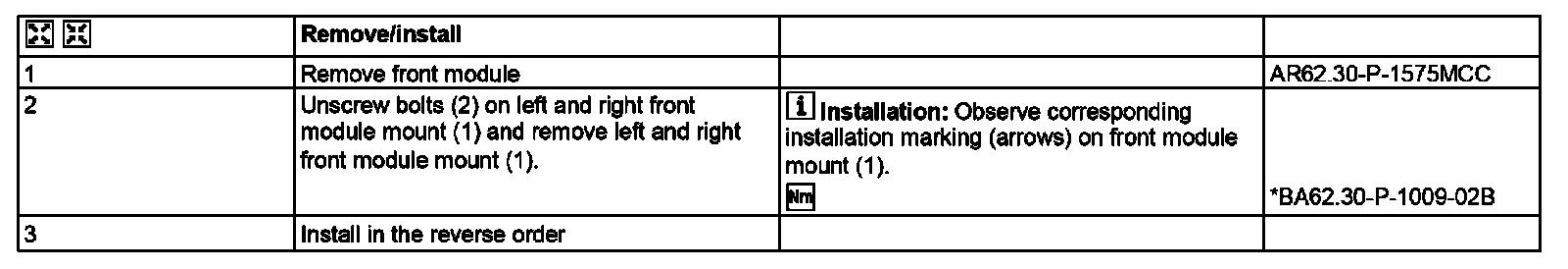

AR62.30-P-1576MCC Remove/Install Front Module Mount
AR62.30-P-1576MCC Remove/Install Front Module Mount
AR62.30-P-1576MCC Remove/Install Front Module Mount

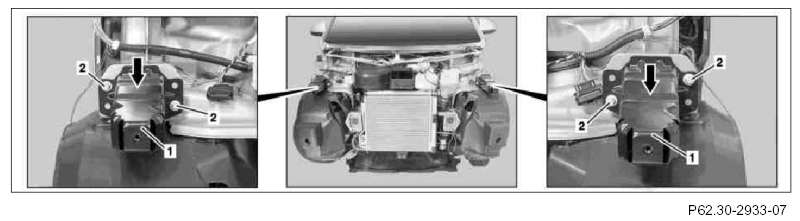

1
Front module mount
2
Screw
