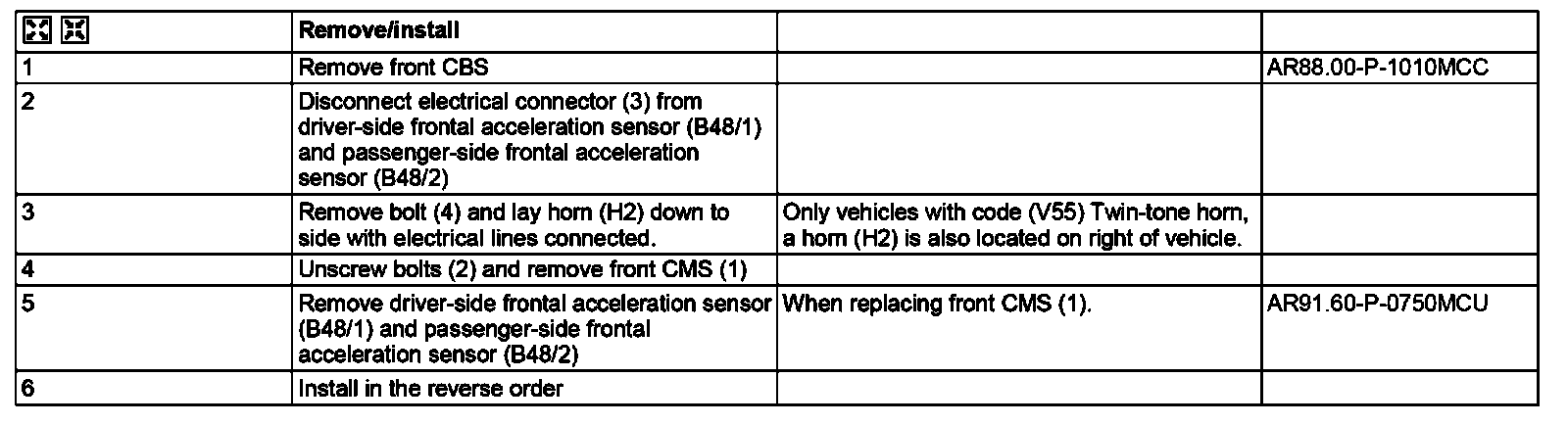

AR62.10-P-1020MCU Remove/Install CMS Front

AR62.10-P-1020MCU Remove/install CMS Front

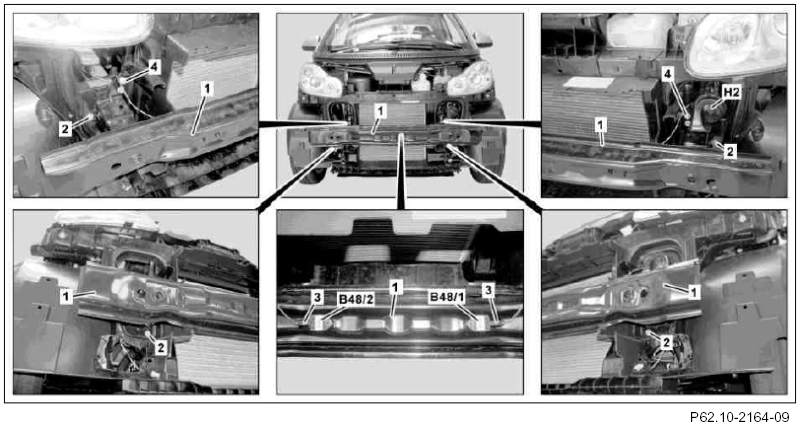

1 Front CMS
2 Screw
3 Electrical connector
4 Screw
B48/1 Driver-side frontal acceleration sensor
B48/2 Passenger-side frontal acceleration sensor
H2 Horn
