ForTwo Elec. Coupe (451.391) ELE-Electric Engine (780.009)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Service and Repair
>>

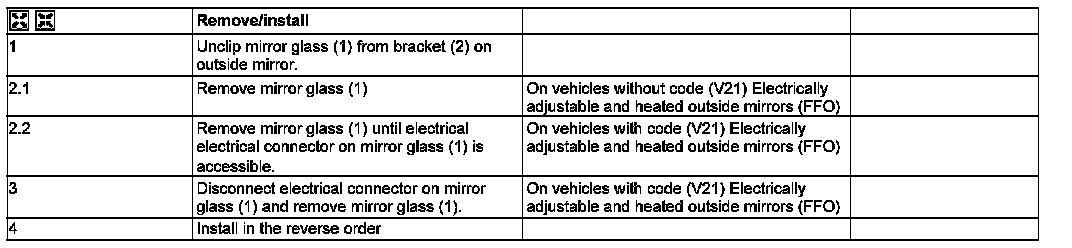

AR88.70-P-9020MCC Remove/Install Mirror Glass
AR88.70-P-9020MCC Remove/Install Mirror Glass
AR88.70-P-9020MCC Remove/Install Mirror Glass

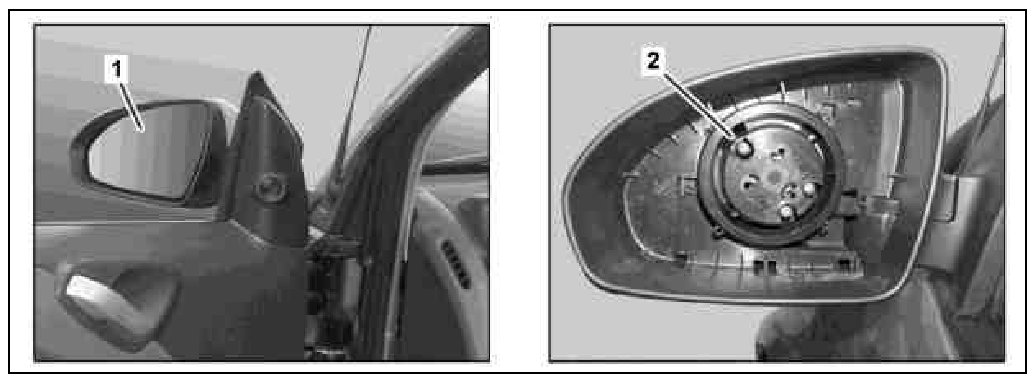

1
Mirror glass
2
Bracket
