Home >> Smart >> 2012 >> ForTwo Elec. Coupe (451.391) ELE-Electric Engine (780.009) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Service and Repair >> AR68.40-P-0001MCU Remove/install inside rearview mirror

AR68.40-P-0001MCU Remove/install inside rearview mirror

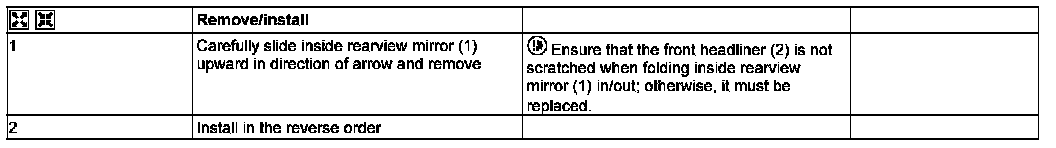

AR68.40-P-0001MCU Remove/Install Inside Rearview Mirror

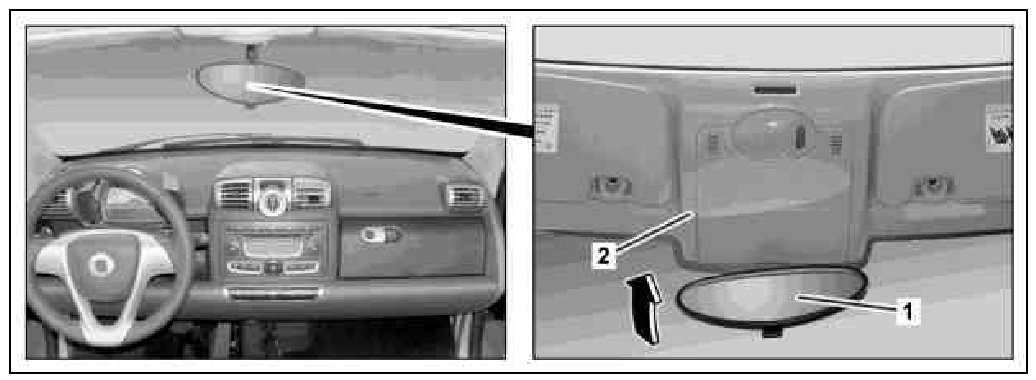

1 Inside rearview mirror
2 Front headliner
