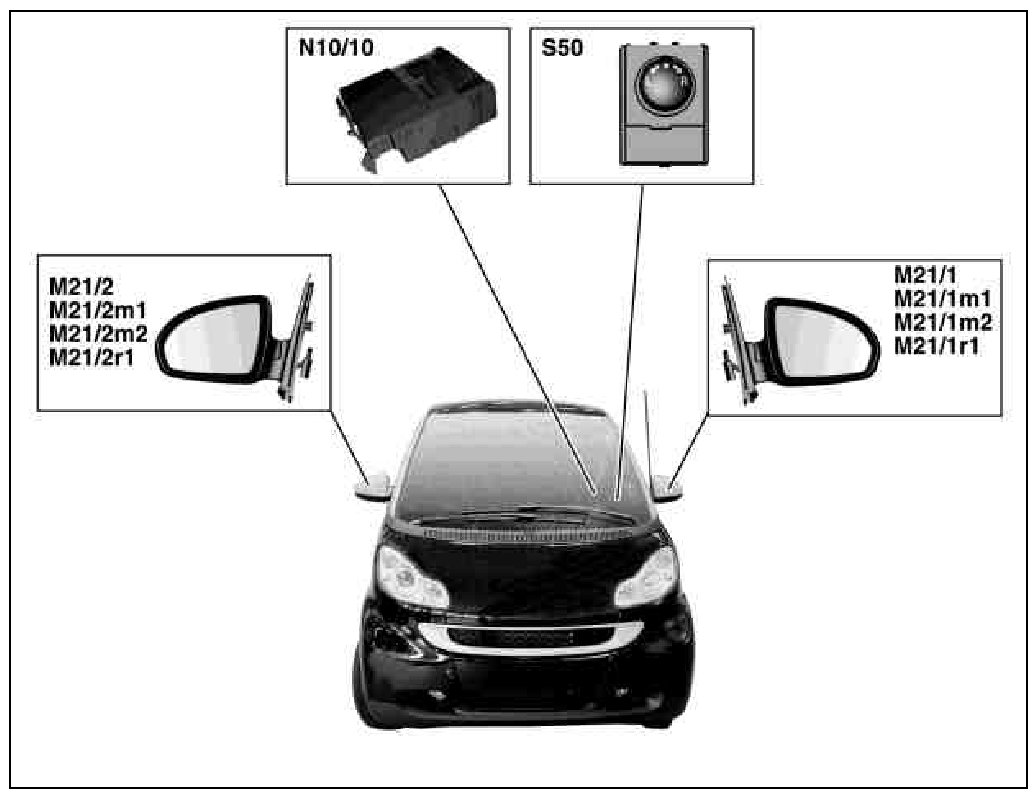

GF88.79-P-0005-01MCC Electrically Adjustable Outside Mirrors, Location of Components

GF88.79-P-0005-01MCC Electrically Adjustable Outside Mirrors, Location Of Components
- with CODE (V21) Electrically adjustable and heated outside mirrors (FFO)






M21/1 Left electrically adjustable and heated outside mirror
M21/1m1 Mirror up/down adjustment motor
M21/1m2 Mirror in/out adjustment motor
M21/1r1 Mirror heater
M21/2 Right electrically adjustable and heated outside mirror
M21/2m1 Mirror up/down adjustment motor
M21/2m2 Mirror in/out adjustment motor
M21/2r1 Mirror heater
N10/10 SAM control unit
S50 Outside rearview mirror adjustment switch
