Power Door Lock Actuator: Service and Repair

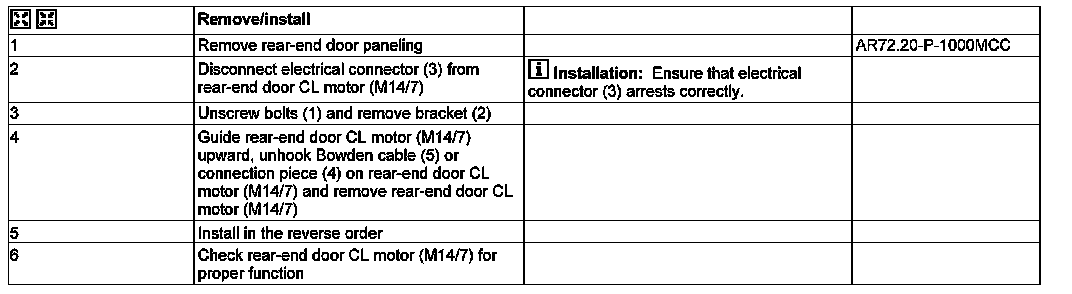

AR80.20-P-4005MCC Remove/Install Central Locking Motor On Rear-end Door

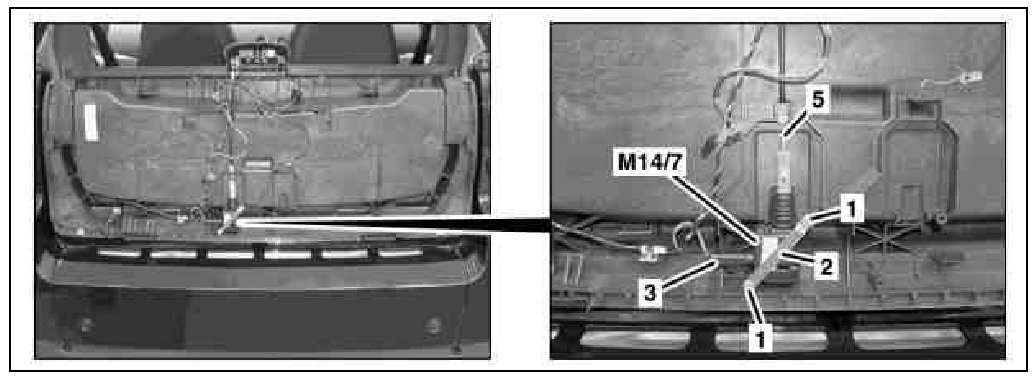

Shown on model 451.3







1 Screw
2 Bracket
3 Electrical connector
5 Bowden cable (on model 451.3)
M14/7 Rear-end door CL [ZV] motor

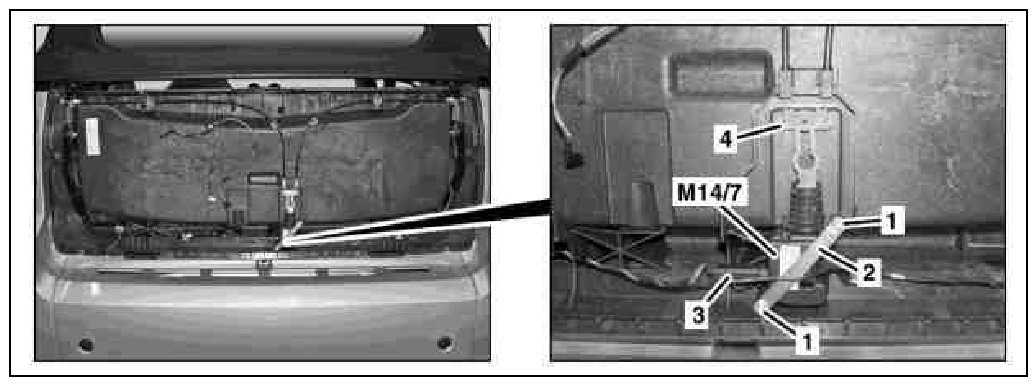

Shown on model 451.4







1 Screw
2 Bracket
3 Electrical connector
4 Connection piece (on model 451.4)
M14/7 Rear-end door CL [ZV] motor
