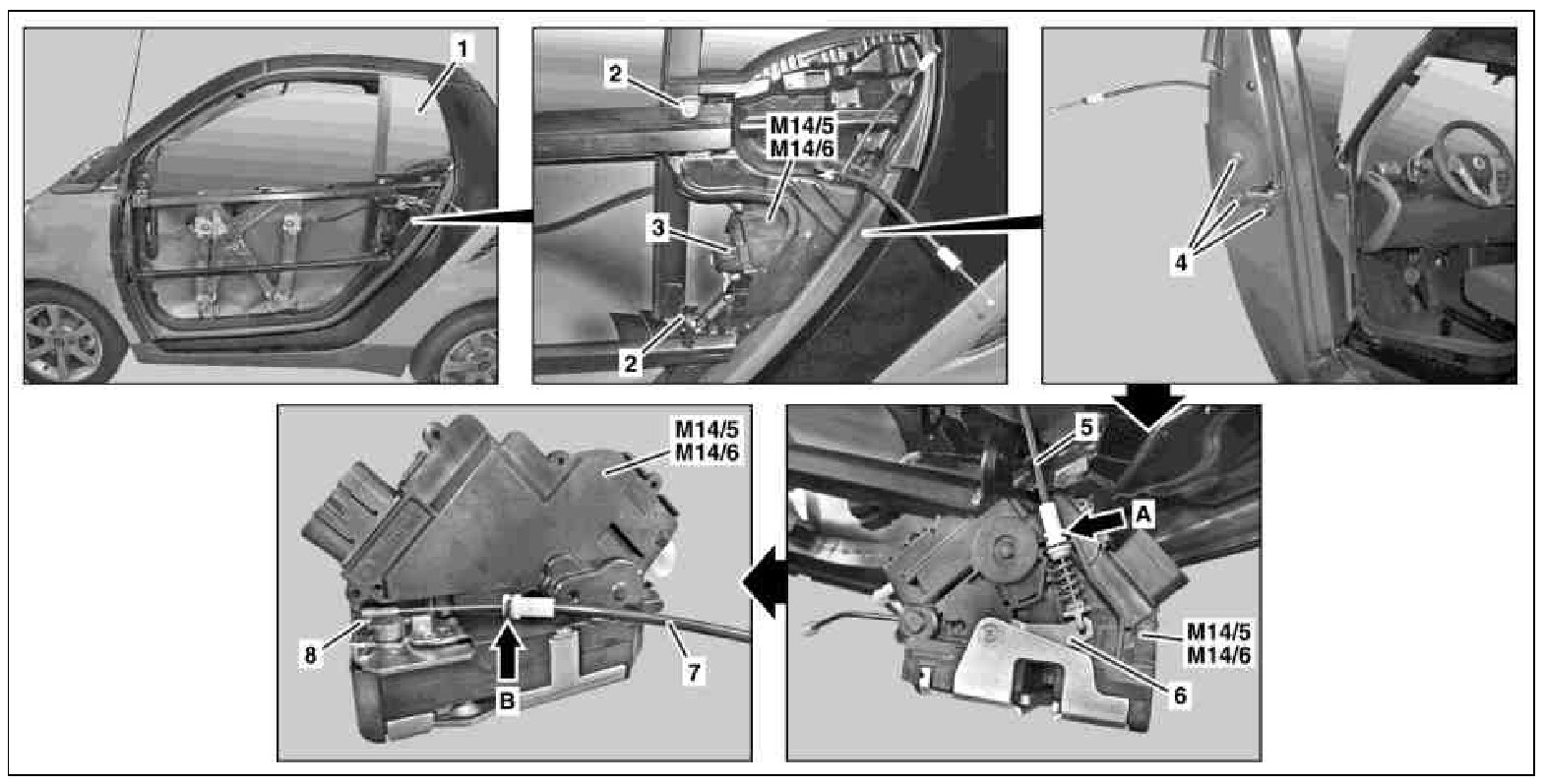

AR72.10-P-4011MCC Remove/install front door lock

AR72.10-P-4011MCC Remove/Install Front Door Lock







1 Washer
2 Bolt
3 Electrical connector
4 Bolts
5 Cable
6 Relay lever
7 Cable
8 Relay lever
M14/5 Right door CL [ZV] motor
M14/6 Left door CL [ZV] motor
