AR72.10-P-1410MCC Remove/Install Front Outside Door Opener Cable

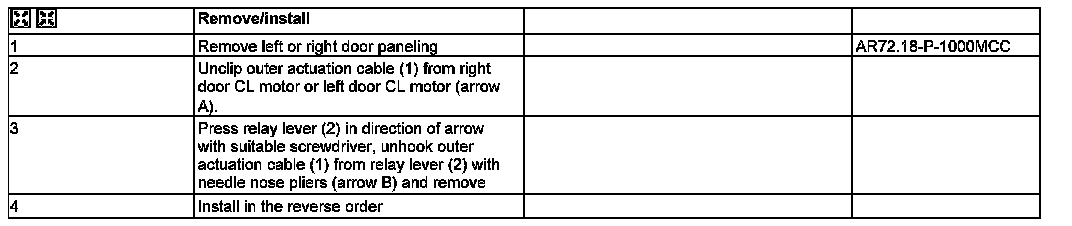

AR72.10-P-1410MCC Remove/Install Front Outside Door Opener Cable

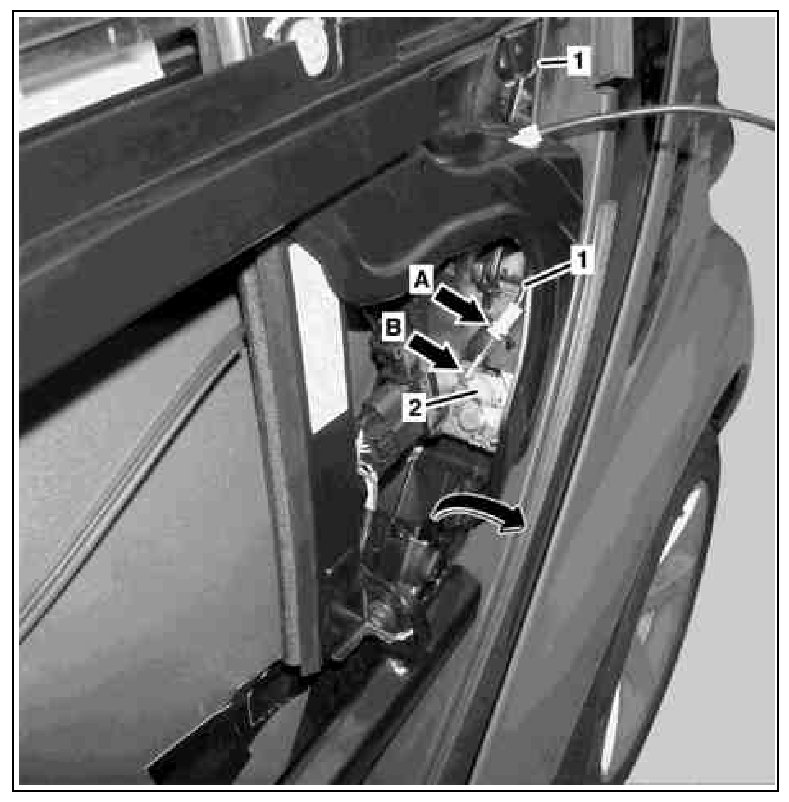

1 Outer actuation cable
2 Relay lever
