AR72.10-P-4015MCC Remove/Install Front Door Lock Cylinder

AR72.10-P-4015MCC Remove/Install Front Door Lock Cylinder
- except CODE (L15) United Kingdom

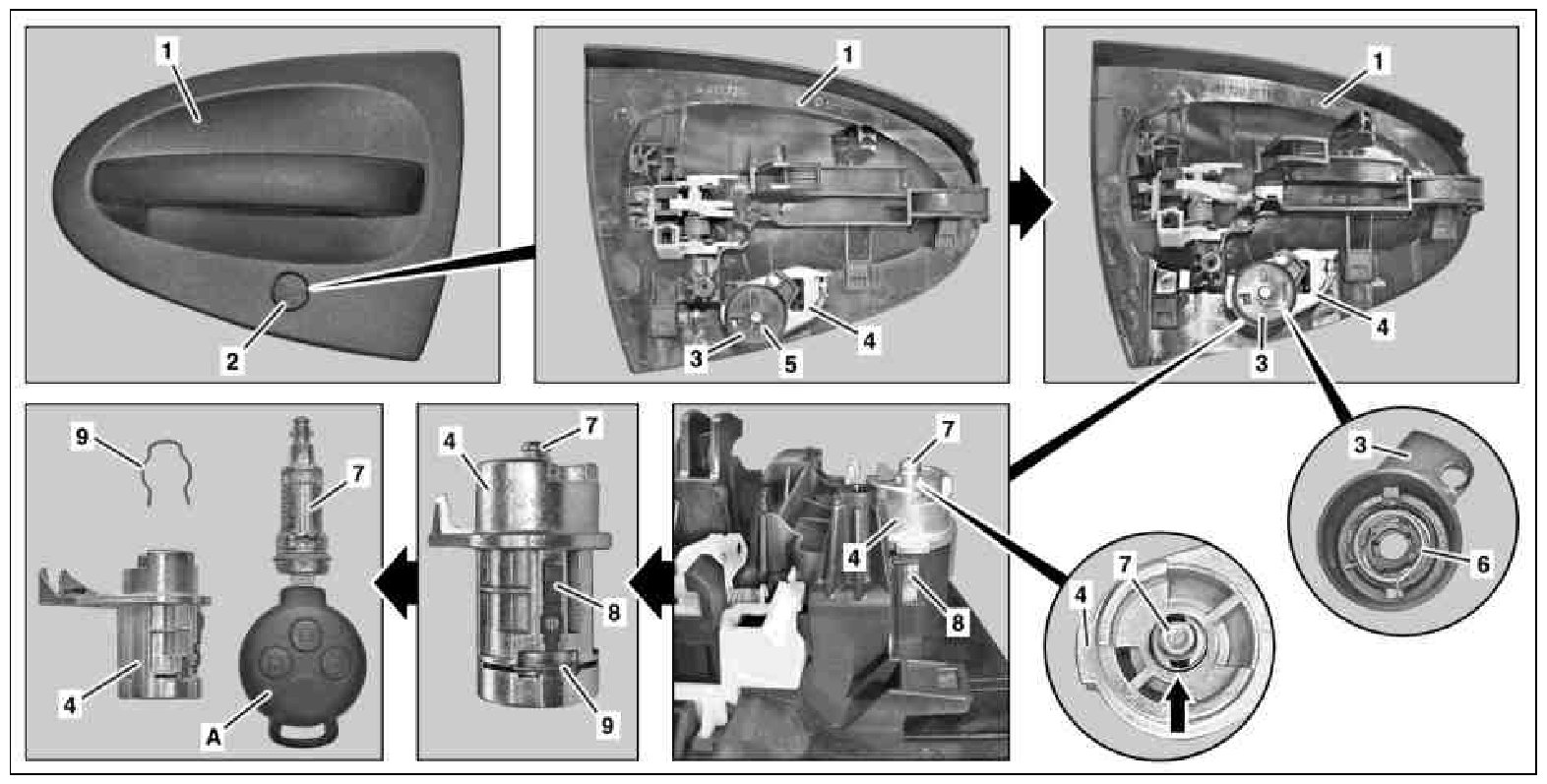

1 Door handle
2 Cover
3 Relay lever
4 Stator
5 Retaining spring
6 Spring
7 Lock cylinder
8 Bracket
9 Retaining spring
A Transmitter key
