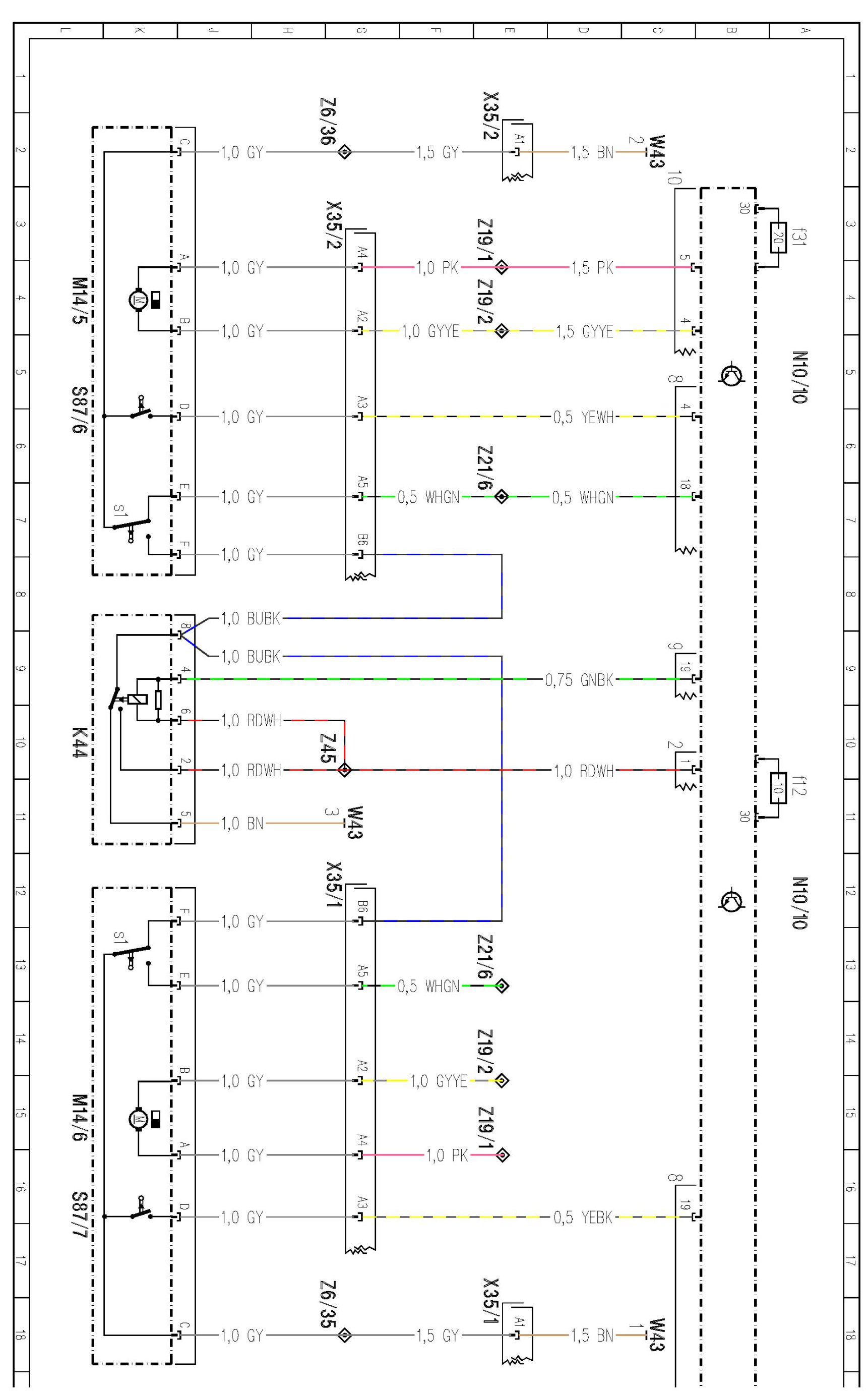

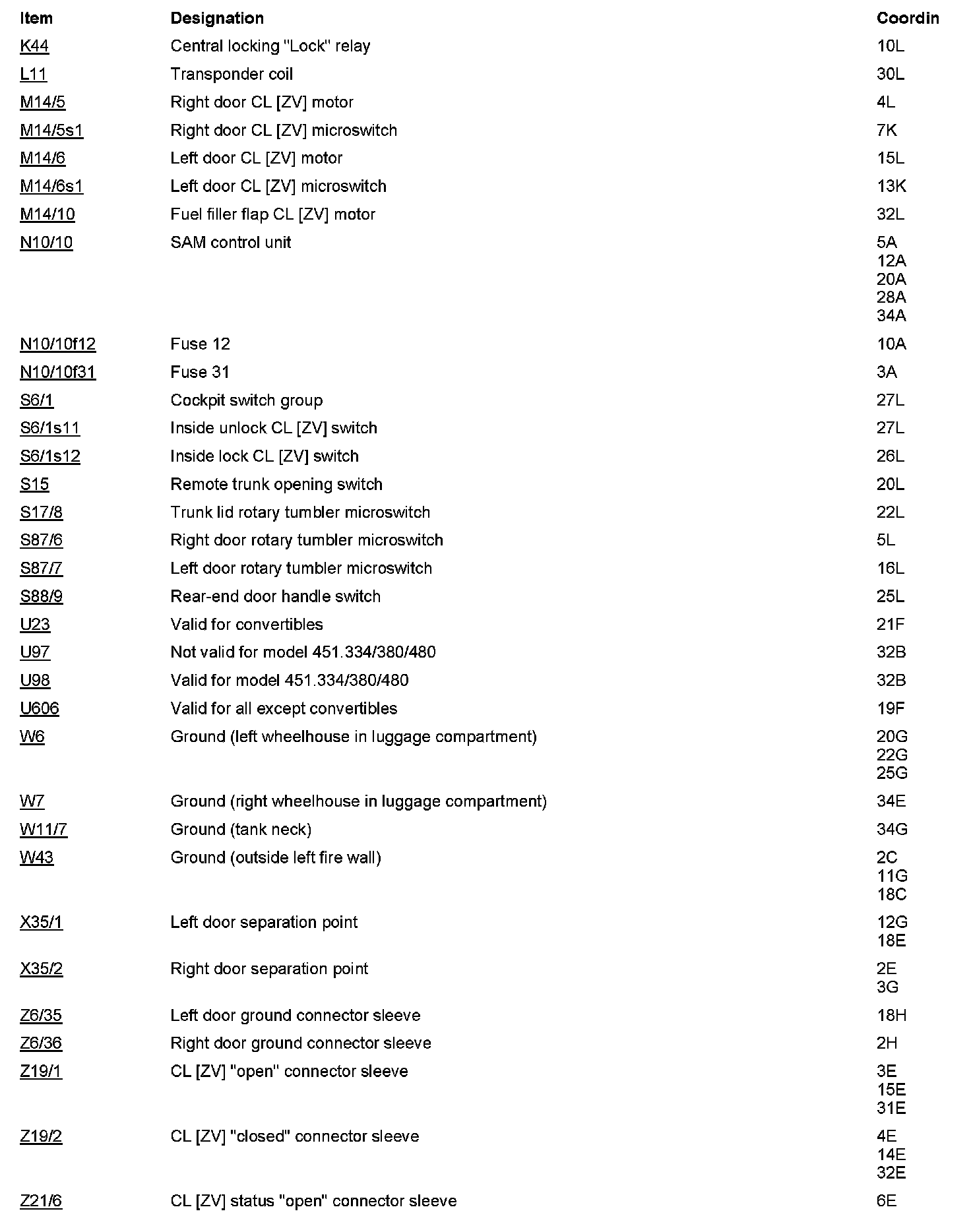

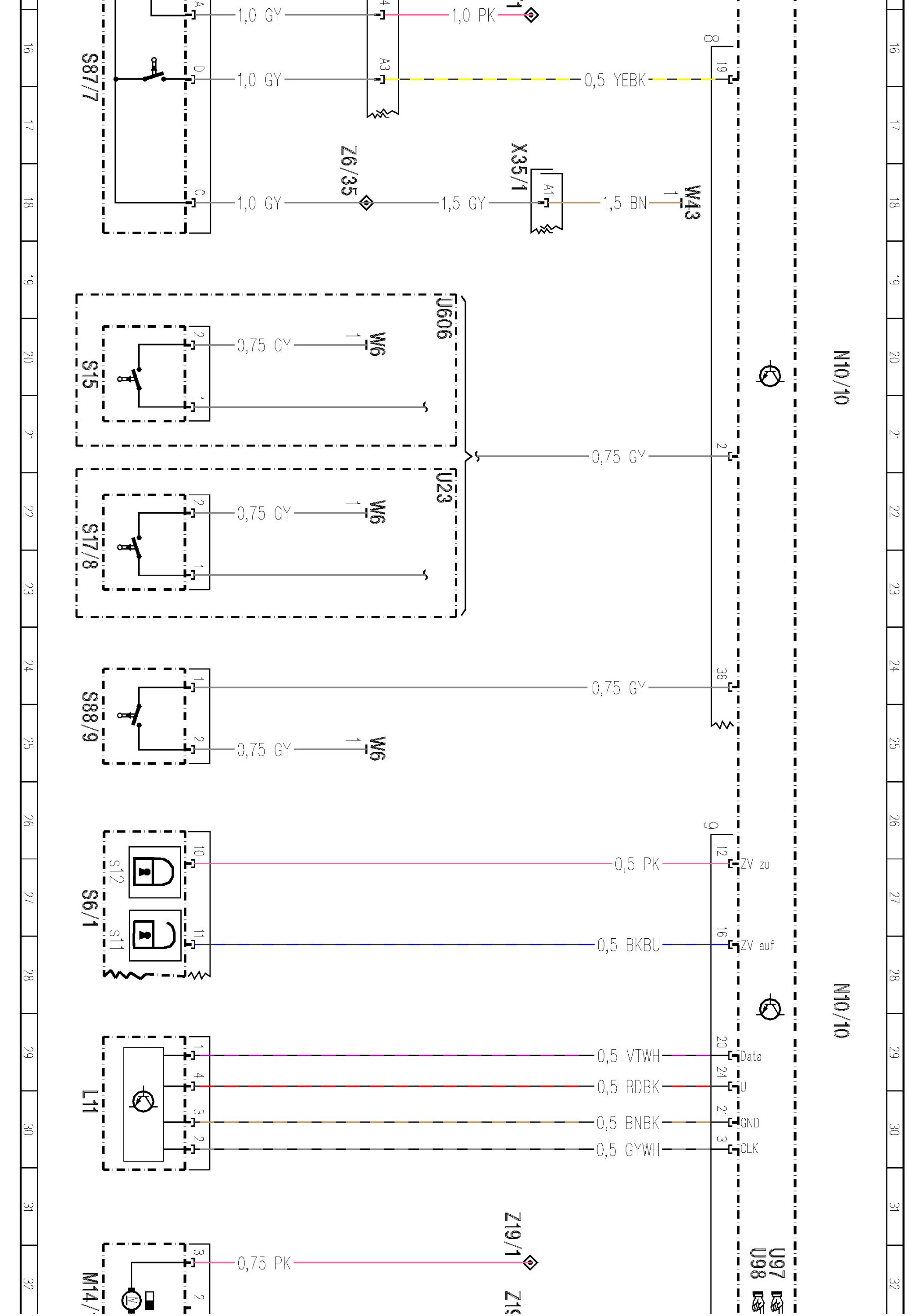

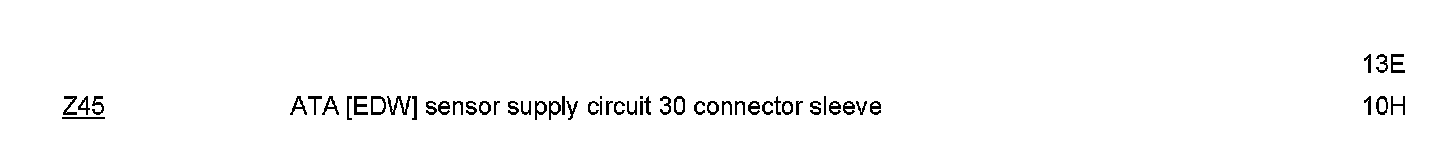

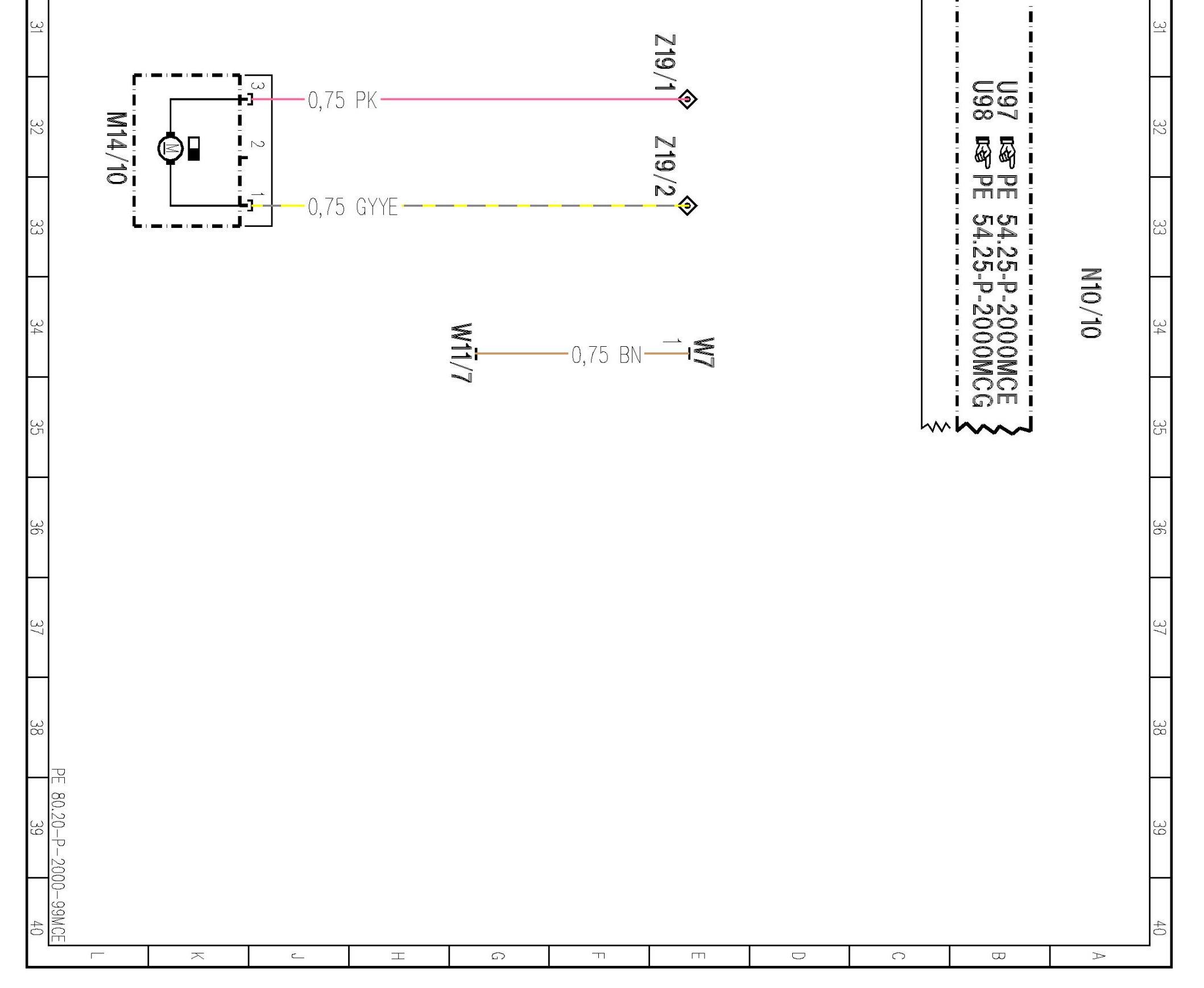

PE80.20-P-2000MCE Central Locking (CL)
PE80.20-P-2000MCE Central Locking (CL)
PE80.20-P-2000MCE Central Locking (CL)
451 80 Central Locking
Model 451 as of 013645 Only for UK
