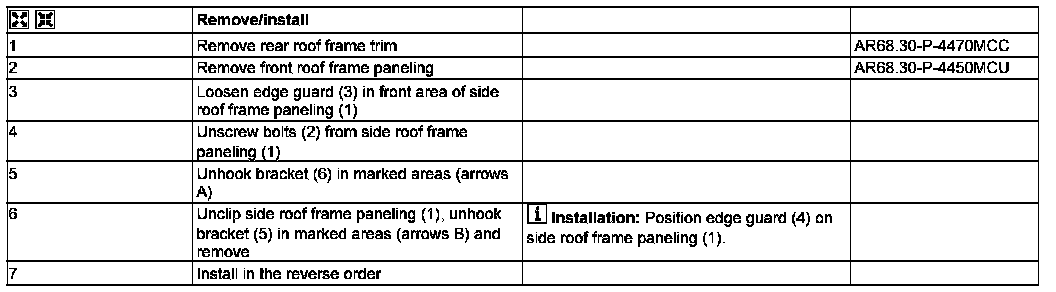

AR68.30-P-4480MCU Remove/Install Side Roof Frame Paneling



AR68.30-P-4480MCU Remove/Install Side Roof Frame Paneling

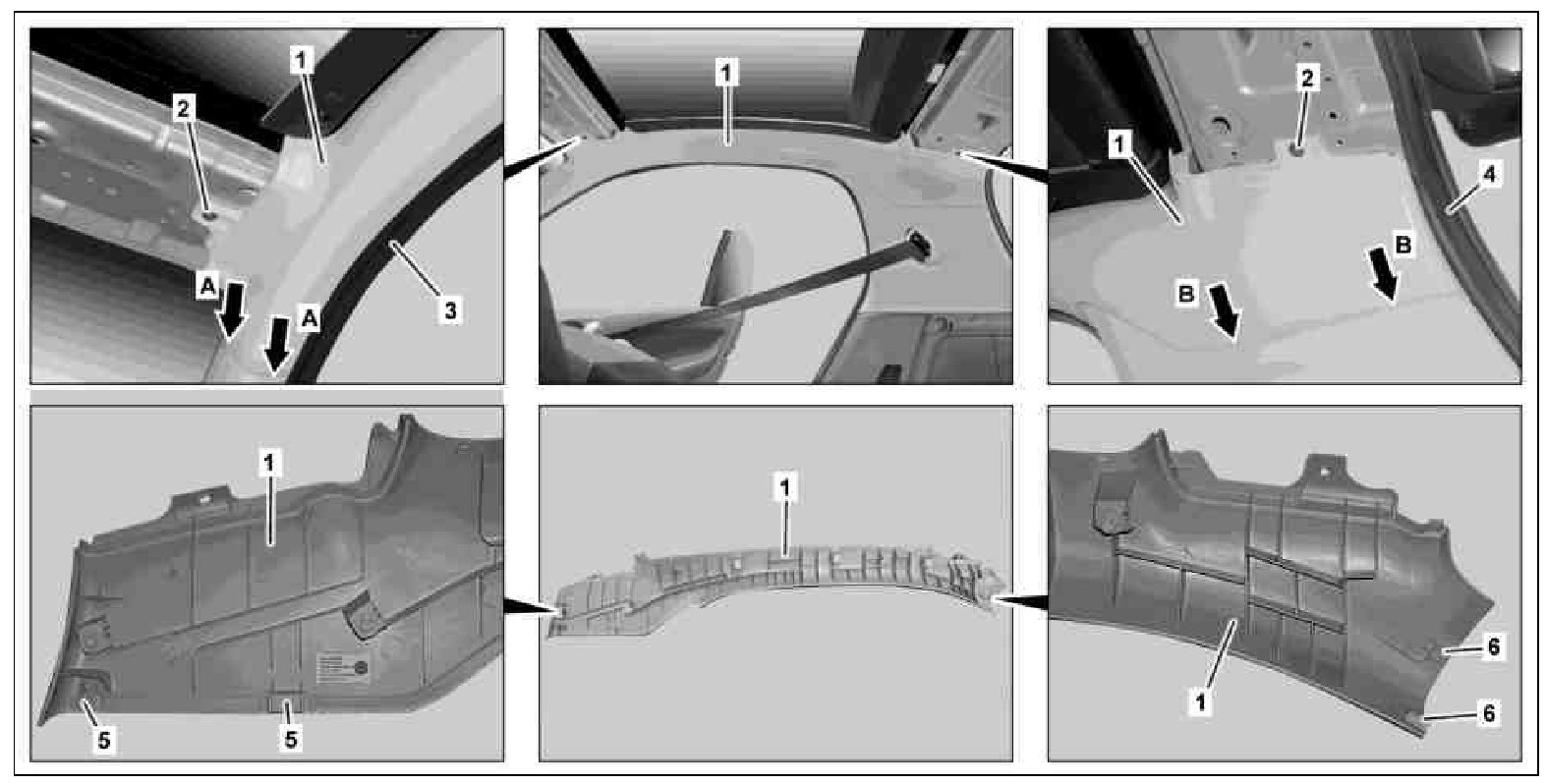

1 Side roof frame paneling
2 Screw
3 Edge guard
4 Edge guard
5 Bracket
6 Bracket
