AR68.30-P-4470MCC Remove/install rear roof frame paneling

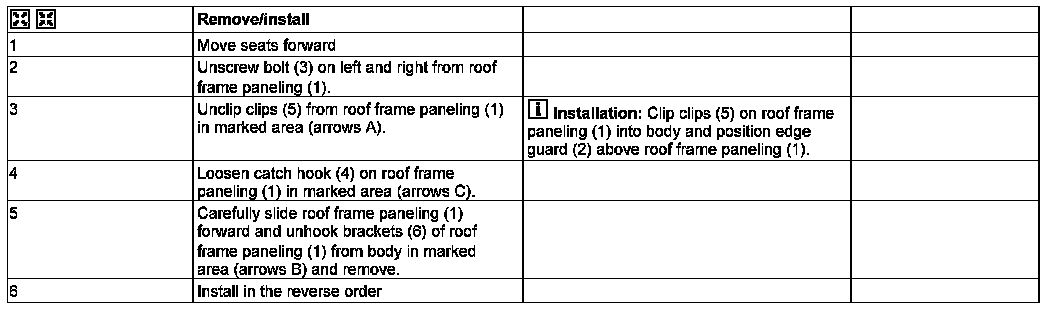

AR68.30-P-4470MCC Remove/Install Rear Roof Frame Paneling

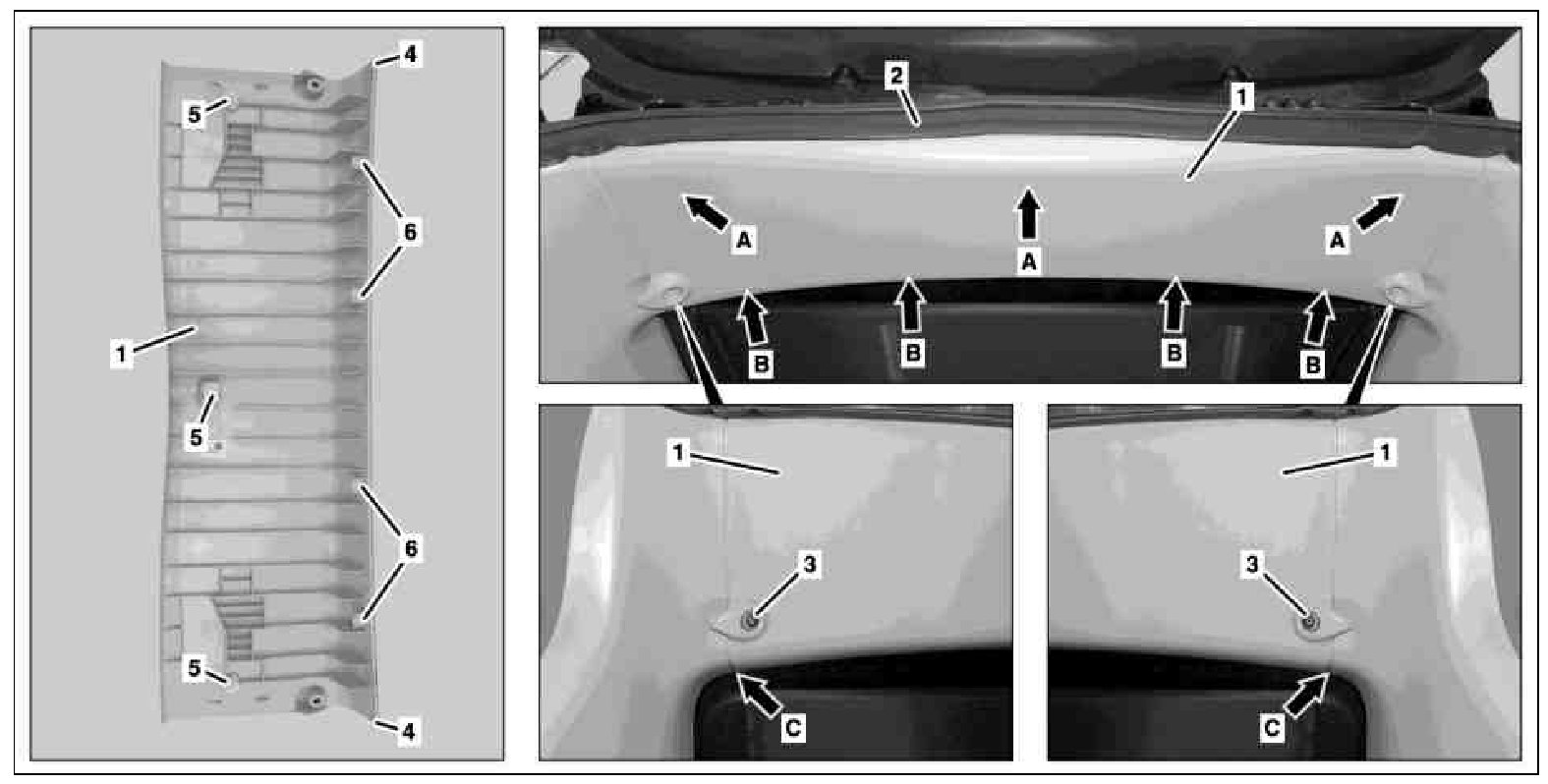

1 Roof frame paneling
2 Edge guard
3 Bolt
4 Catch hook
5 Clip
6 Bracket
