AR68.10-P-1400MCU Remove/install glove compartment

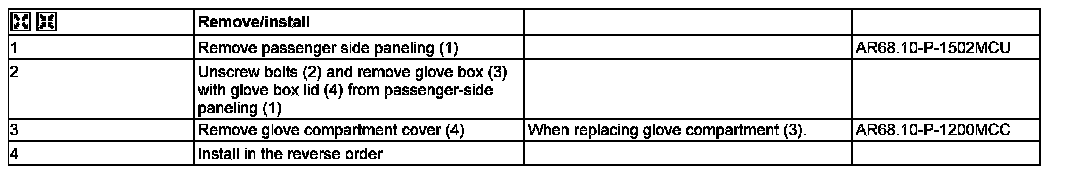

AR68.10-P-1400MCU Remove/Install Glove Compartment

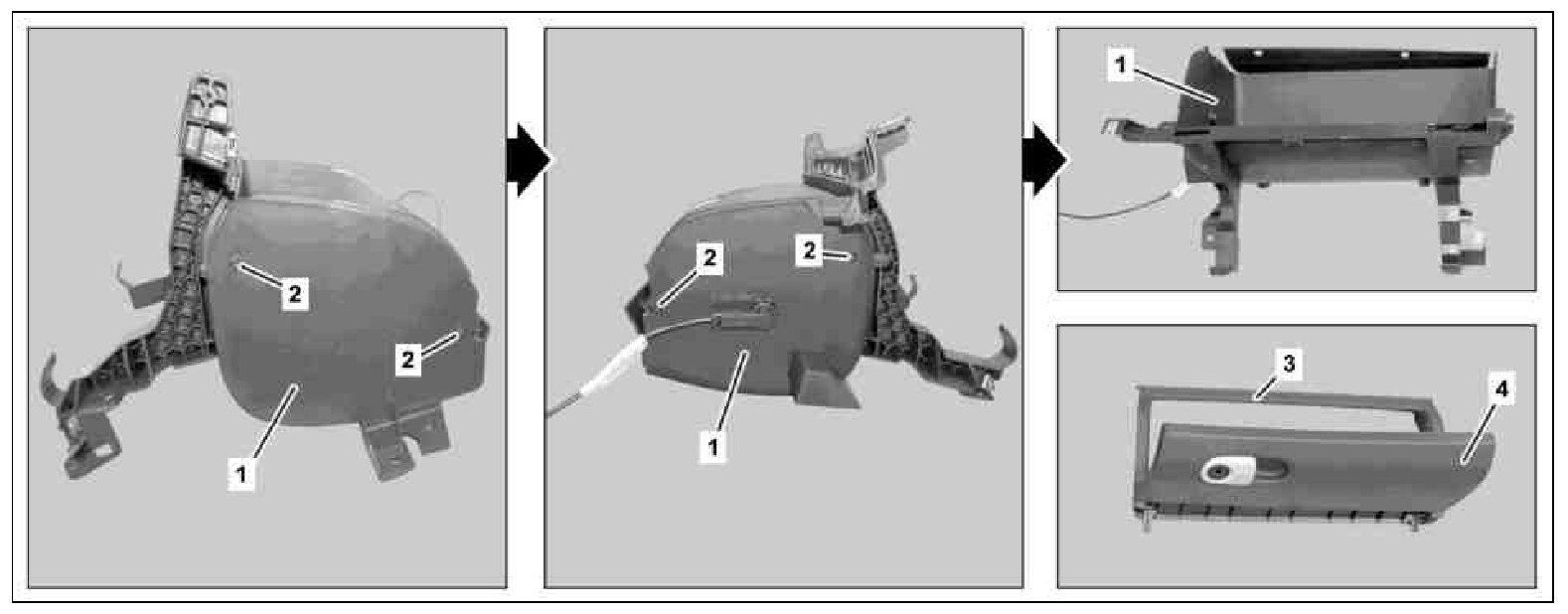

1 Passenger side paneling
2 Screw
3 Glove compartment
4 Glove box lid
