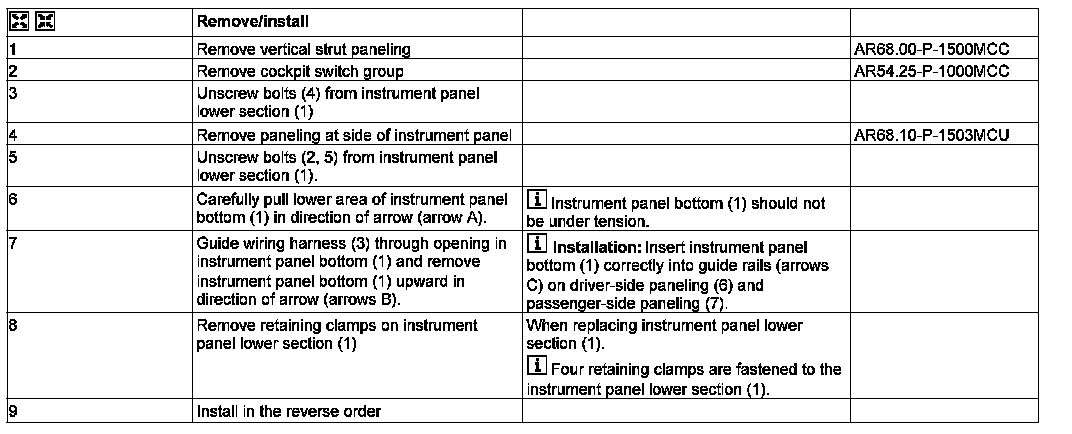

AR68.10-P-1040MCU Remove/Install Lower Section of Instrument Panel

AR68.10-P-1040MCU Remove/Install Lower Section Of Instrument Panel

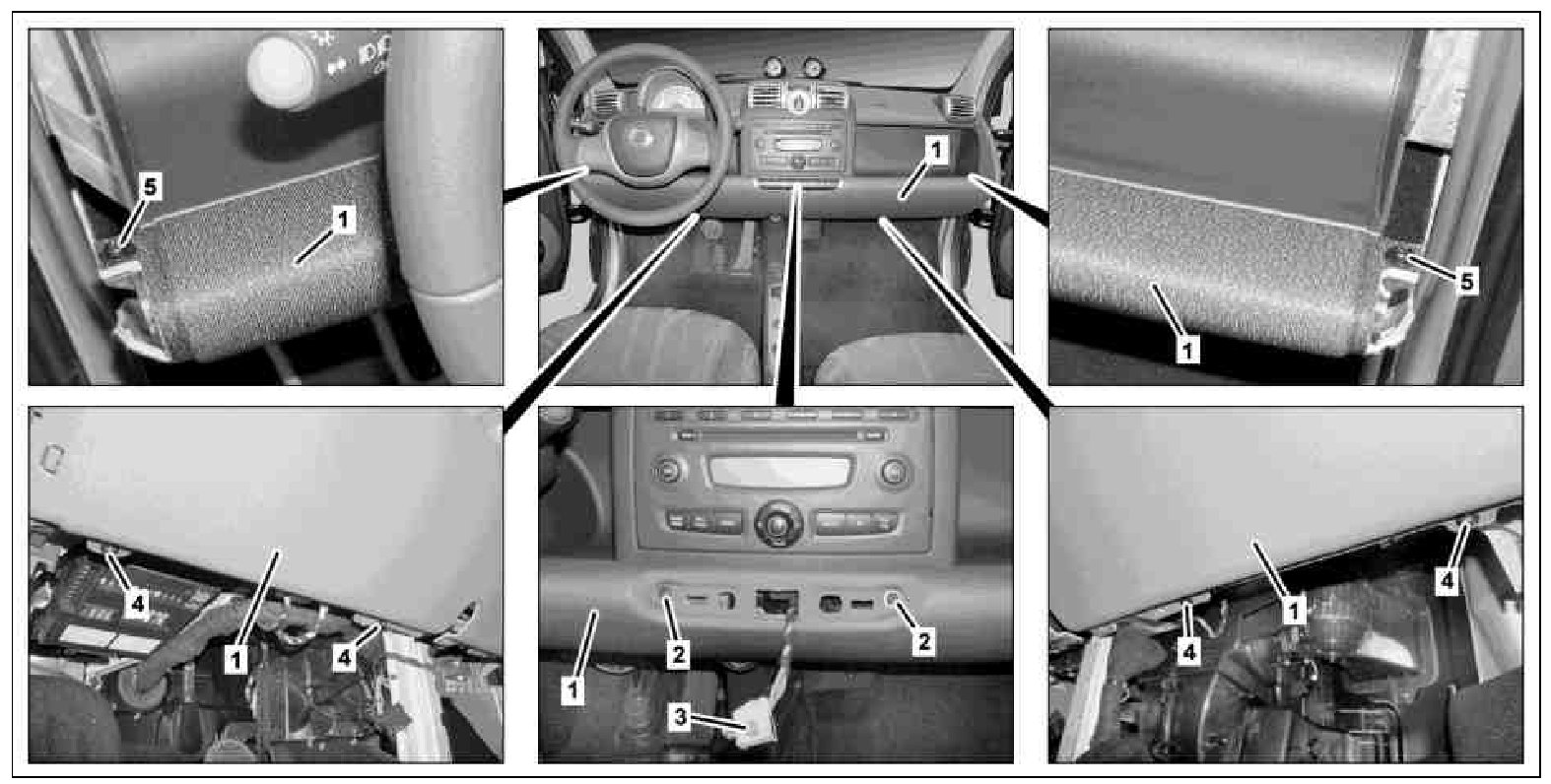

1 Lower section of instrument panel
2 Screw
3 Wiring harness
4 Screw
5 Screw

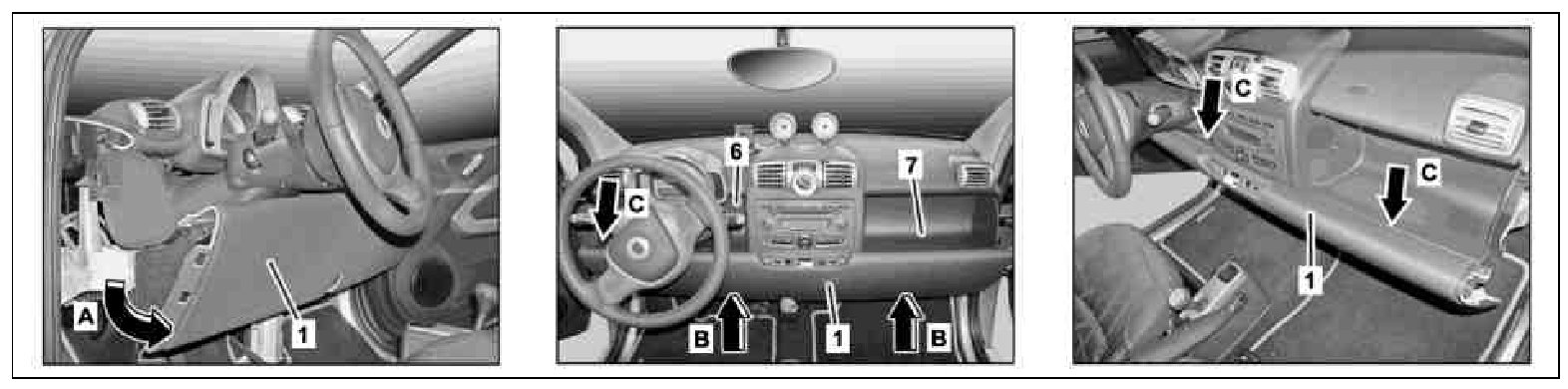

1 Lower section of instrument panel
6 Driver-side paneling
7 Passenger side paneling
