AR68.10-P-1000-06MCC Remove/Install Paneling on Instrument Panel

AR68.10-P-1000-06MCC Remove/Install Paneling On Instrument Panel

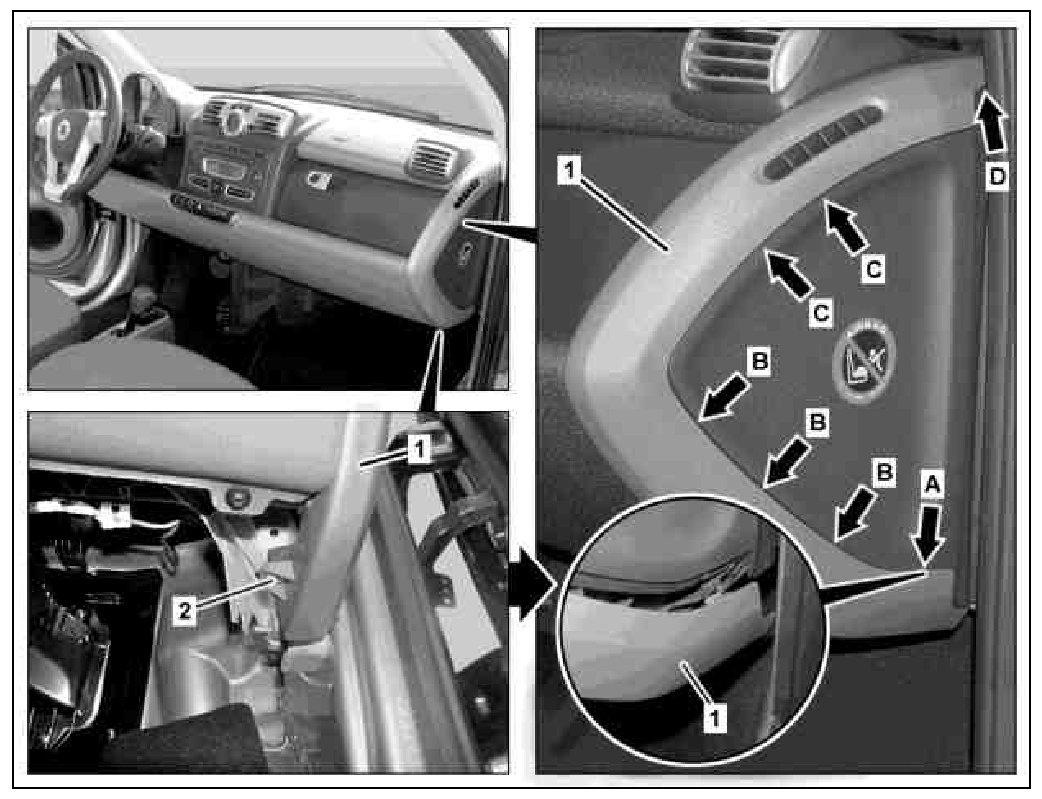

1 Unscrew bolt (2).
2 Pull paneling (1) toward outside in marked area (arrow A) and unclip.
3 Carefully pull paneling (1) toward rear in lower area (arrows B) and then pivot upward so that paneling (1) can be loosened in upper area (arrows C).
4 Loosen paneling (1) in upper area (arrow D) and remove toward rear.
5 Install in the reverse order.
