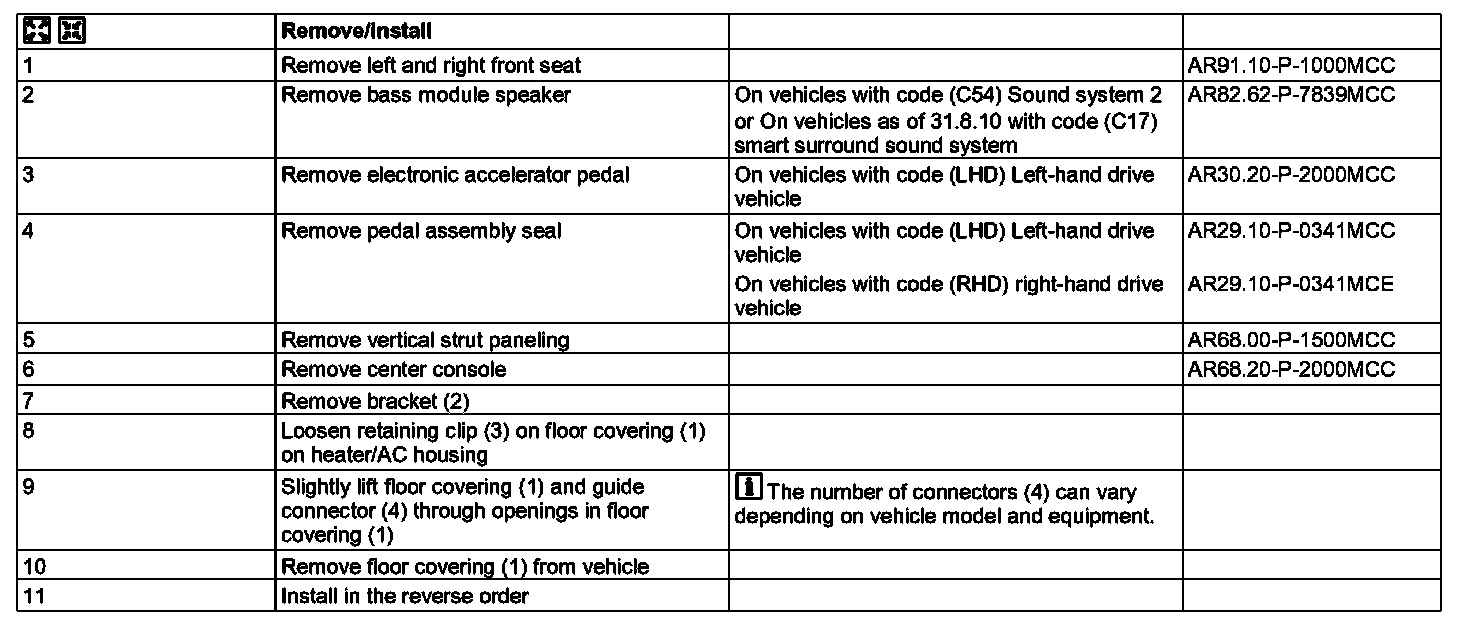

AR68.20-P-2040MCC Remove/Install Floor Covering




AR68.20-P-2040MCC Remove/Install Floor Covering

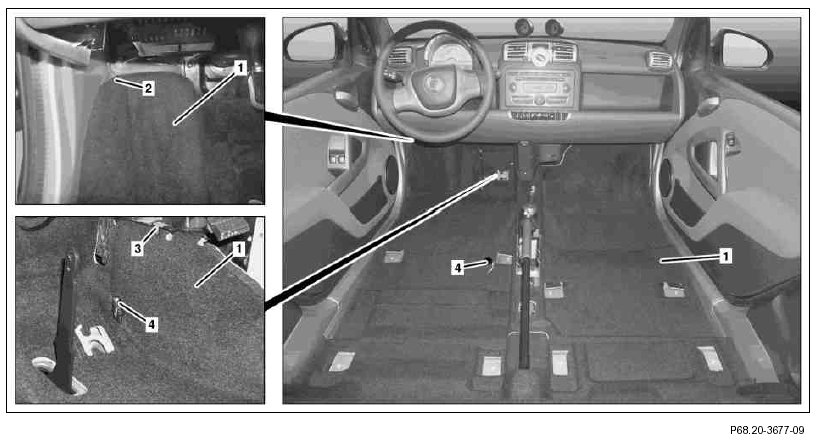

1 Floor Covering
2 Bracket
3 Retaining clip
4 Connector
