AR68.10-P-1620MCC Remove/install center stowage compartment

AR68.10-P-1620MCC Remove/Install Center Stowage Compartment
- up to 30.8.10
- except CODE (C50) smart radio 10
- except CODE (C57) smart radio 9

- as of 31.8.10
- except CODE (516) RADIO WITH USB INTERFACE

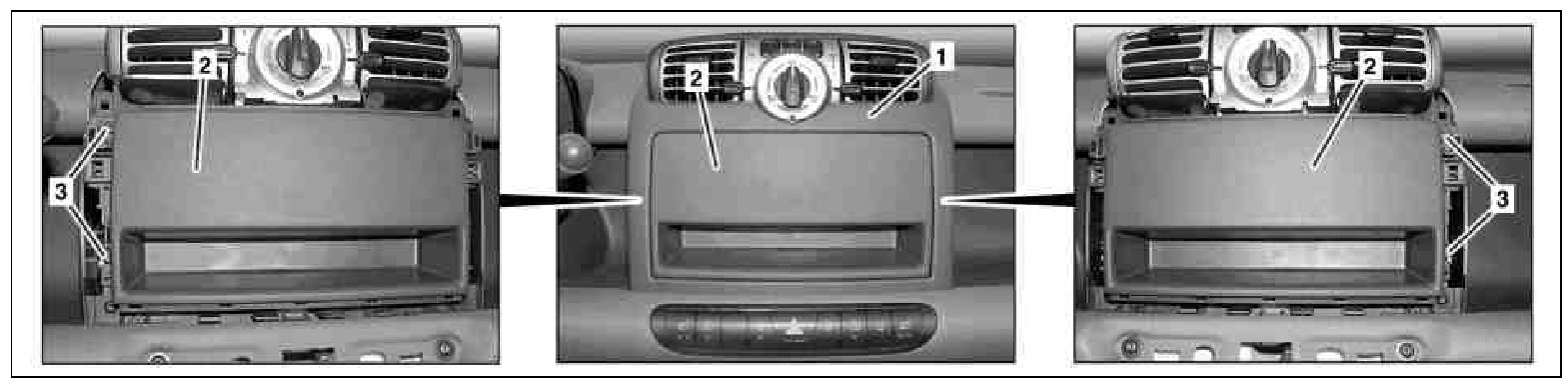

1 Cover
2 Center stowage compartment
3 Bolts
