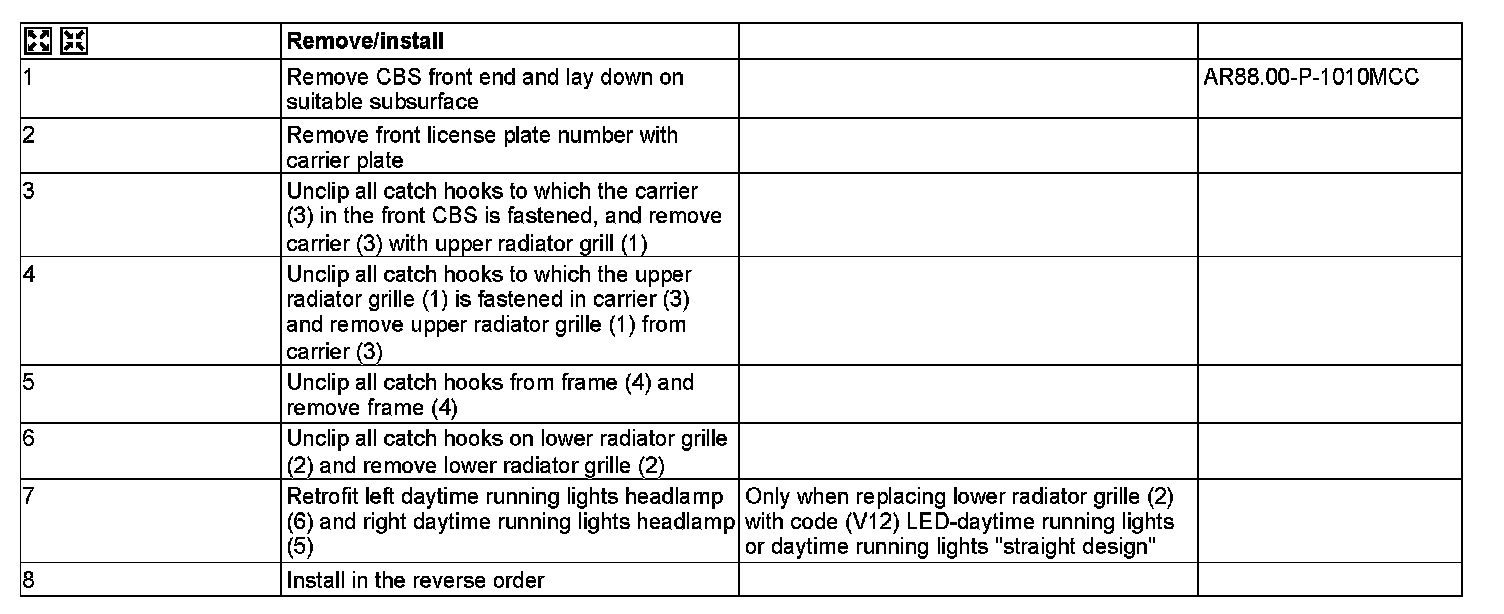

AR88.40-P-4001MCF Remove/Install Radiator Grille

AR88.40-P-4001MCF Remove/install Radiator Grille
- MODEL 451.3 /4 as of 20.3.12

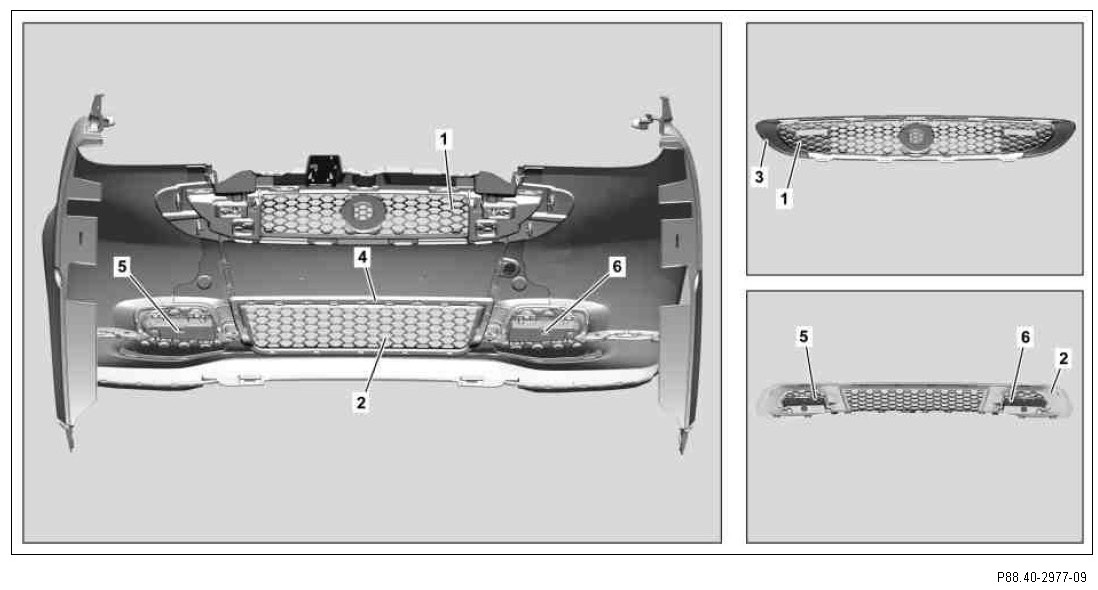

Shown on vehicle with code (V12) LED-daytime running light
1 Top radiator trim panel
2 Bottom radiator trim panel
3 Carrier
4 Frame
5 Left headlamp daytime running light (with code (V12) LED-daytime running light
6 Right daytime running light headlamp (with code (V12) LED-daytime running light
