AR33.10-P-0100MCC Remove/Install Front Axle

AR33.10-P-0100MCC Remove/Install Front Axle

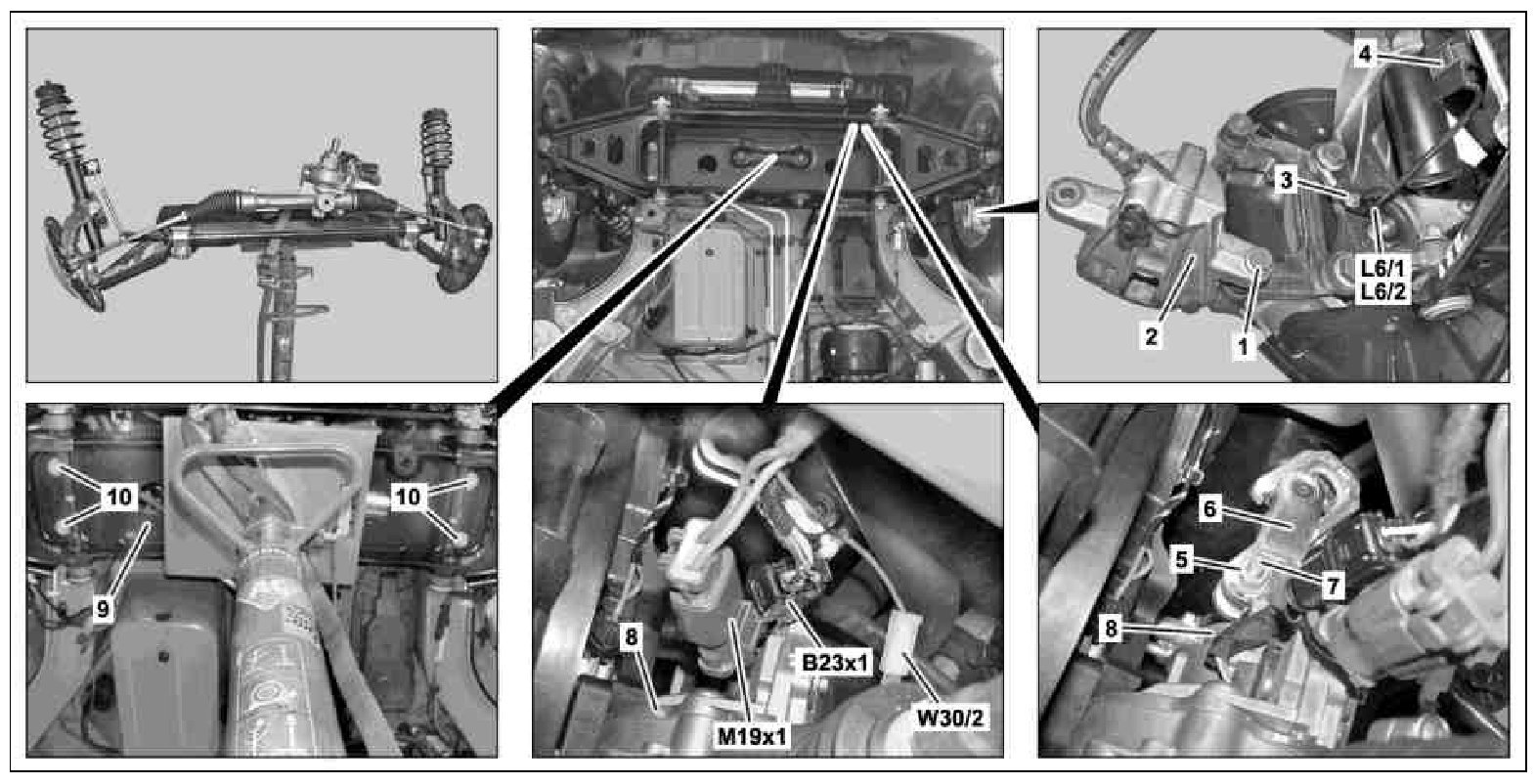

1 Screw

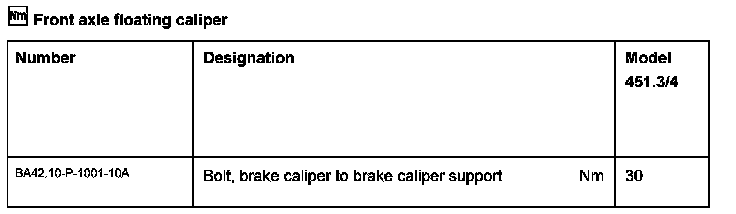

2 Brake caliper
3 Screw
4 Bracket
5 Nut

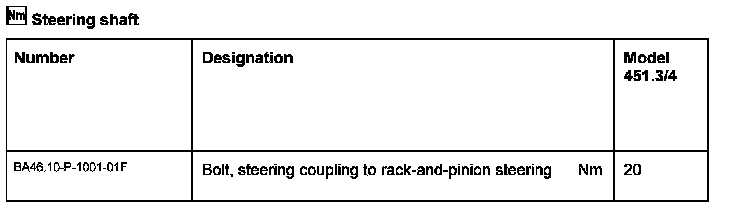

6 Steering coupling
7 Screw
8 Rack-and-pinion steering
9 Front axle carrier
10 Bolts
B23x1 Power steering torque sensor connector (with code (V26) Power steering, EPS (FFO))
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
M19x1 Power steering connector (with code (V26) Power steering, EPS (FFO))
W30/2 Ground; power steering pump noise suppression (with code (V26) Power steering, EPS (FFO))

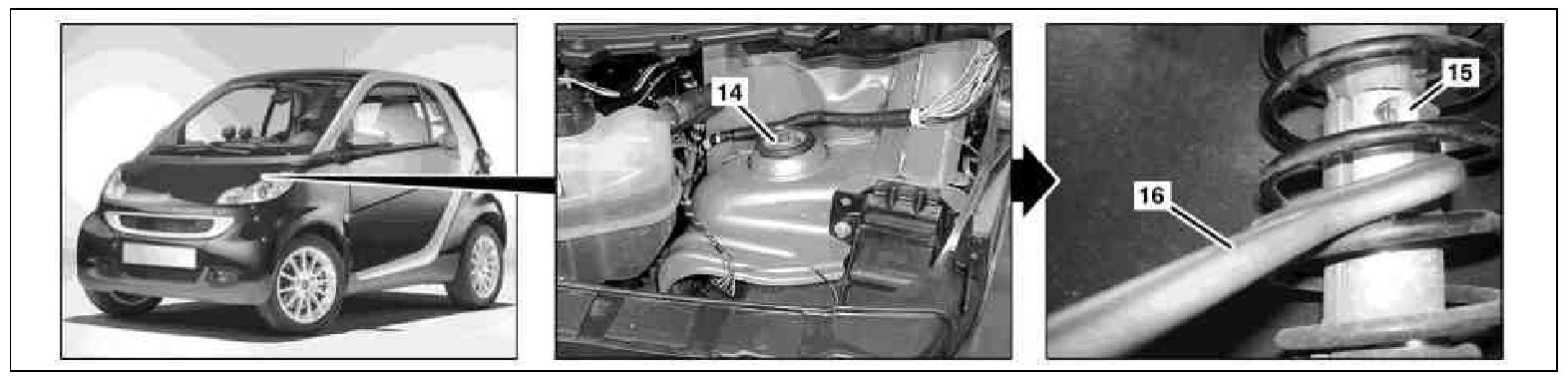

14 Nut
15 Retaining device
16 Open end wrench

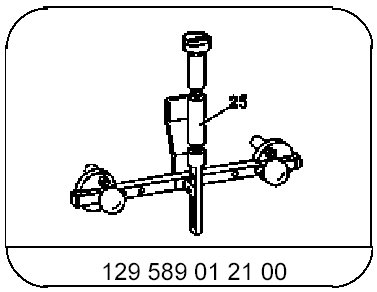

129 589 01 21 00, Holding device







450 589 01 01 00, Open end wrench







450 589 02 62 00, Removal assembly







450 589 08 99 00, Assembly tool set







451 589 00 63 00, Holding device
