AR33.10-P-0002MEV Remove/Install Support of Front Axle Carrier.

AR33.10-P-0002MEV Remove/install Support Of Front Axle Carrier.

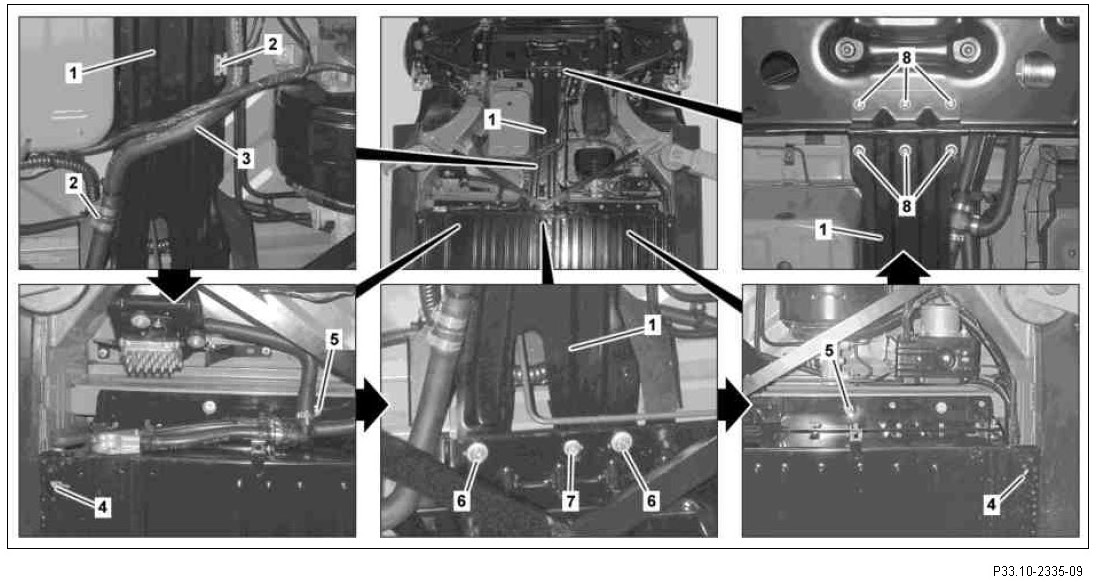

- MODEL 451.391/ 491







1 Front axle carrier support
2 Clip
3 Coolant hose
4 Screw
5 Screw
6 Screw
7 Screw
8 Bolts
