AR61.10-P-5138-02MCU Unfasten/Fasten Diagonal Struts





AR61.10-P-5138-02MCU Unfasten/Fasten Diagonal Struts

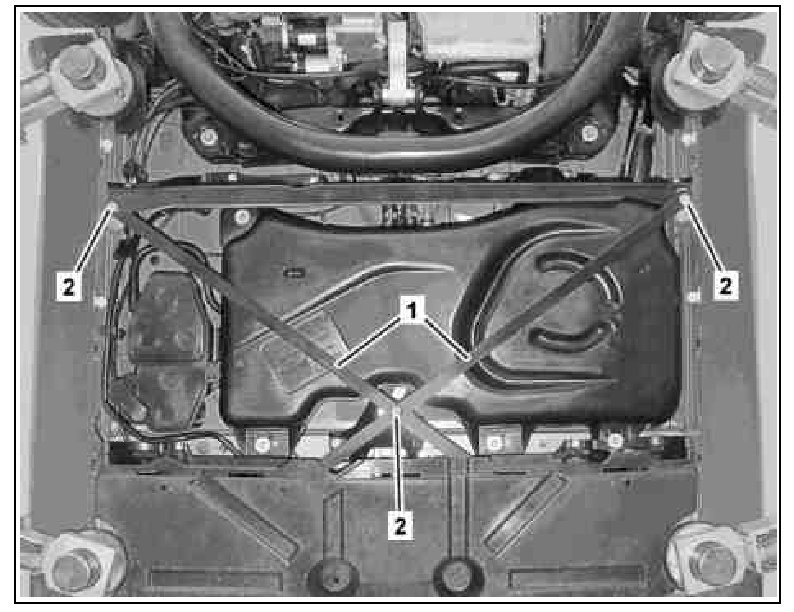

1 Unscrew bolts (2) on diagonal struts (1).
2 Fasten in reverse order
