AR61.10-P-5138-01MCC Remove, Install Bracket For Diagonal Struts

AR61.10-P-5138-01MCC Remove, Install Bracket For Diagonal Struts

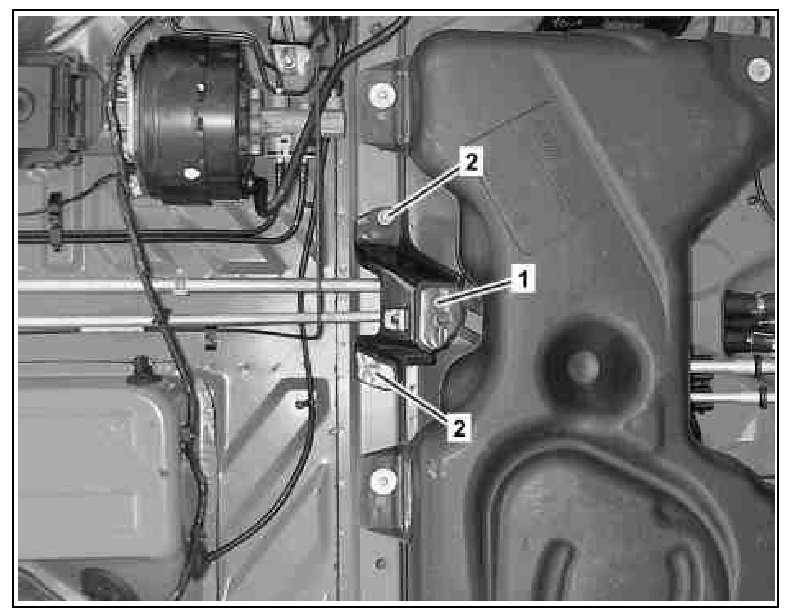

Shown on removed diagonal struts

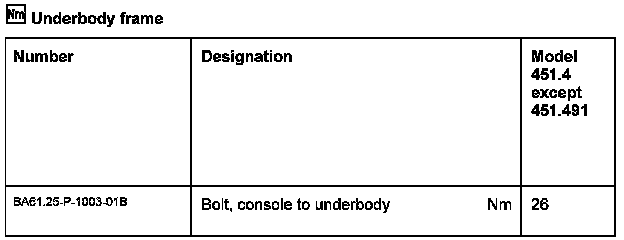

1 Unscrew bolts (2) and remove bracket (1) from underfloor.
Note the installation position of the bracket (1).
2 Install in the reverse order.
