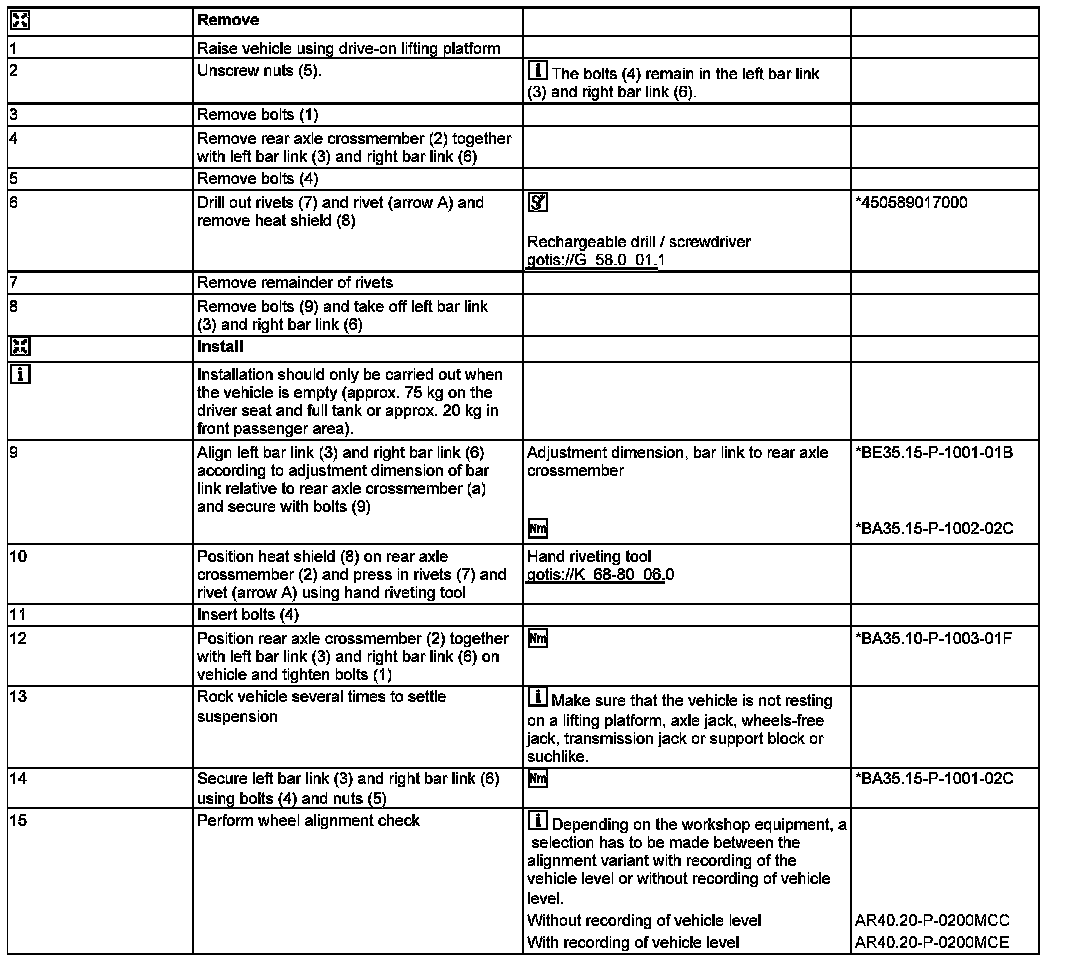

AR35.15-P-0250MCC Remove/Install Rear Axle Crossmember

AR35.15-P-0250MCC Remove/Install Rear Axle Crossmember

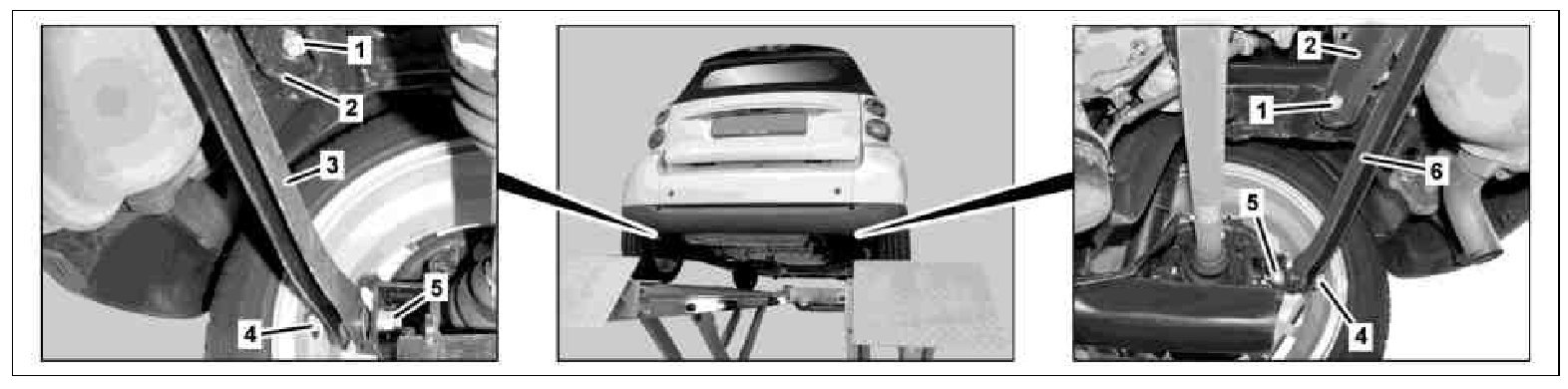

1 Screw
2 Rear axle crossmember
3 Left bar link
4 Screw
5 Nut
6 Right bar link

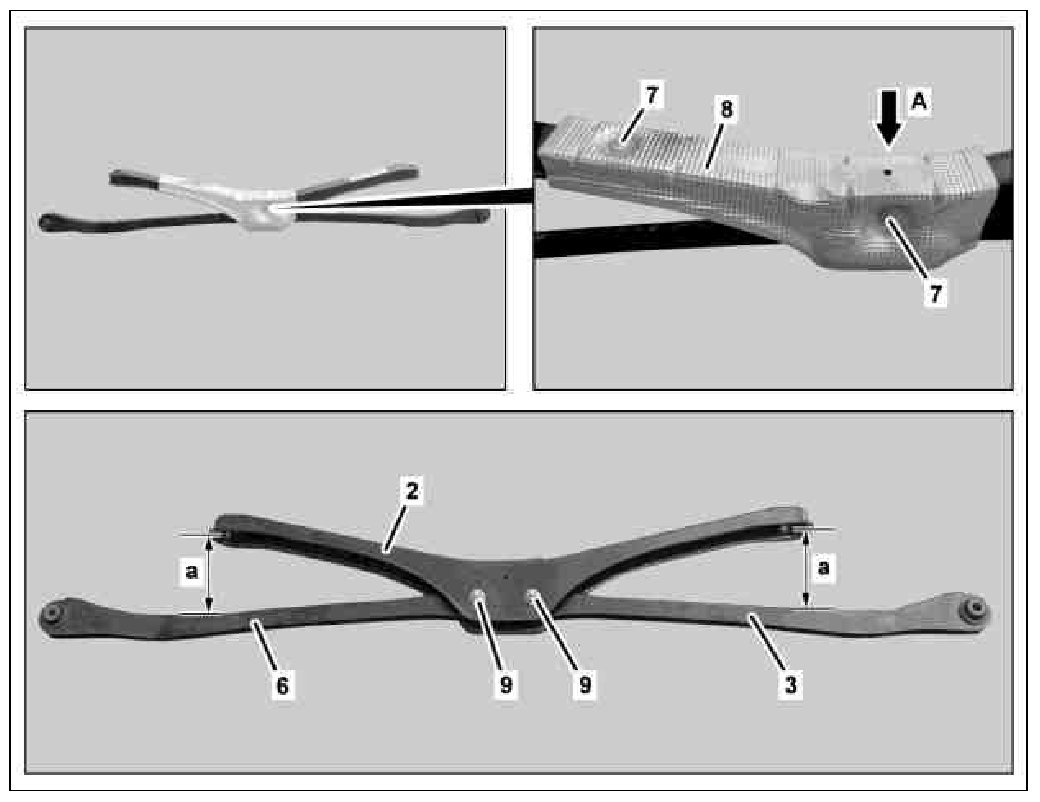

2 Rear axle crossmember
3 Left bar link
6 Right bar link
7 Rivet
8 Heat protection
9 Screw

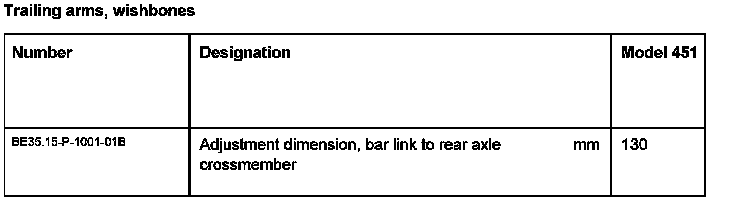

a Adjustment dimension, bar link to rear axle crossmember
































450 589 01 70 00, Twist drill bit set
