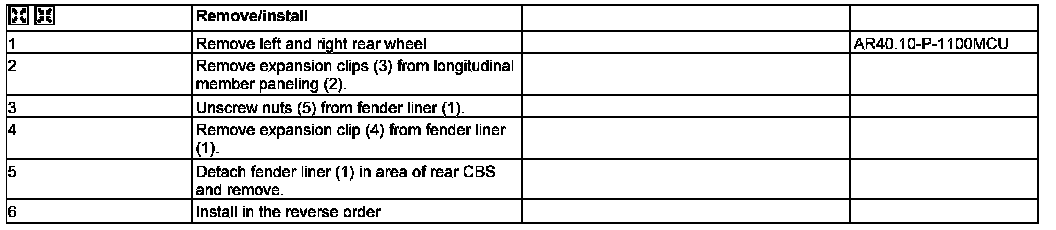

AR88.10-P-1400MCU Remove/Install Fender Liner In Rear Fender



AR88.10-P-1400MCU Remove/Install Fender Liner In Rear Fender

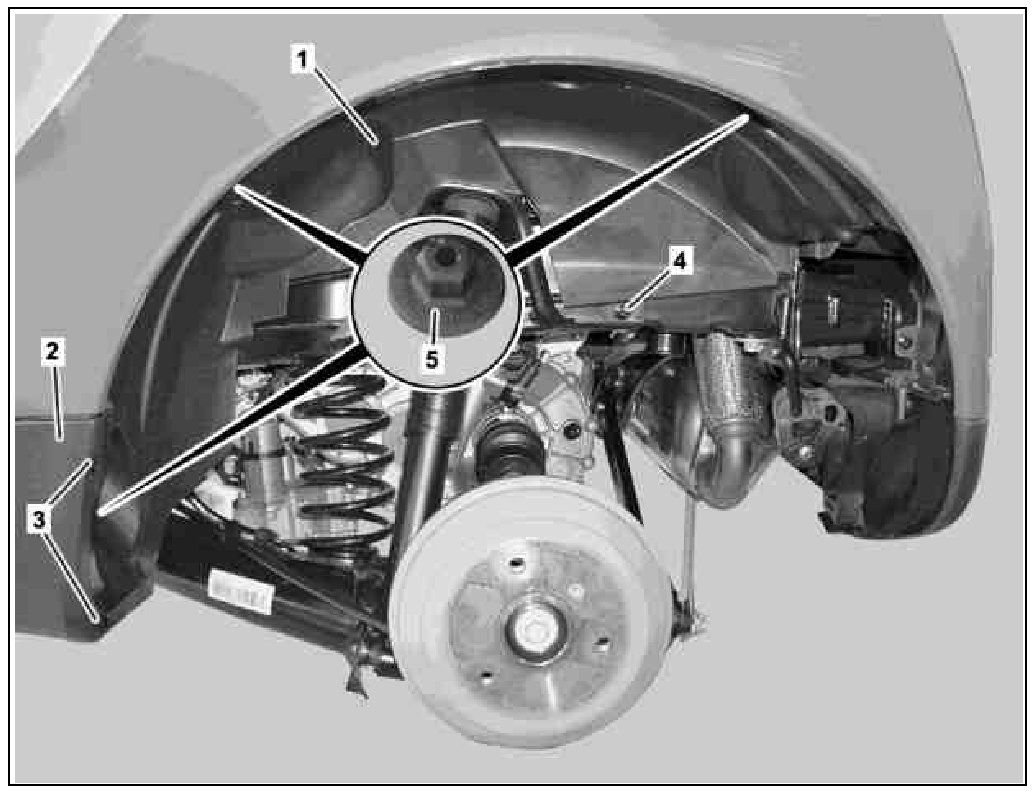

1 Fender liner
2 Longitudinal member paneling
3 Expansion clip
4 Expansion clip
5 Nut
