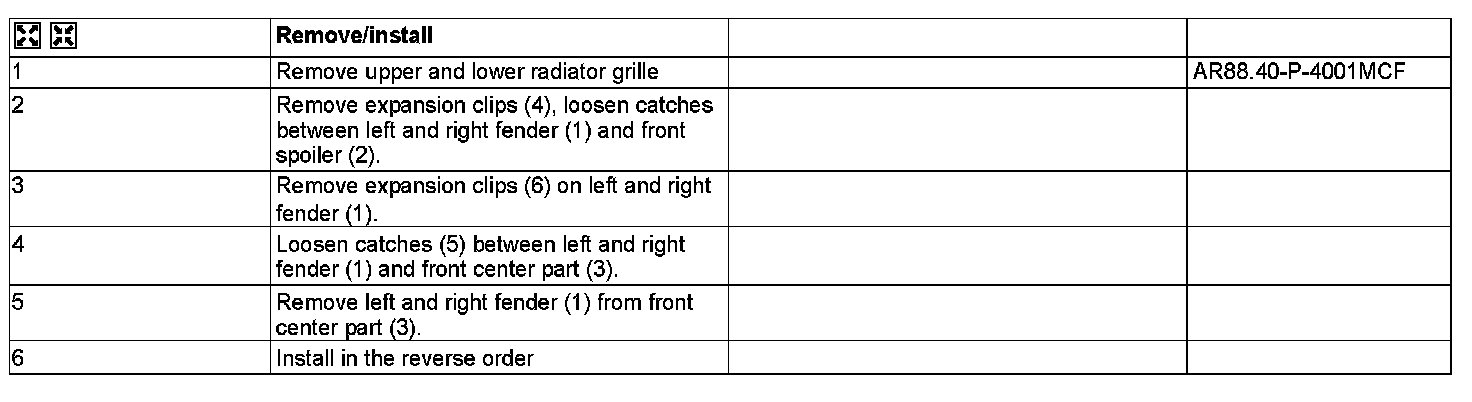

AR88.10-P-1000MCF Remove/Install Front Fender

AR88.10-P-1000MCF Remove/install Front Fender
- MODEL 451.3 /4 as of 20.3.12

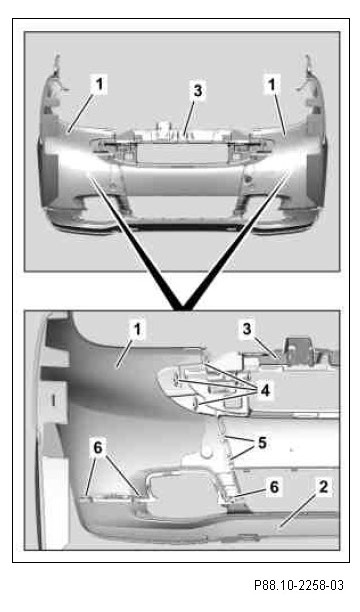

1 Fenders
2 Front spoiler
3 Front center part
4 Expansion clips
5 Catches
6 Expansion clips
