AR88.00-P-1010-04MCC Partially Loosen Front CBS And Fasten

AR88.00-P-1010-04MCC Partially Loosen Front CBS And Fasten

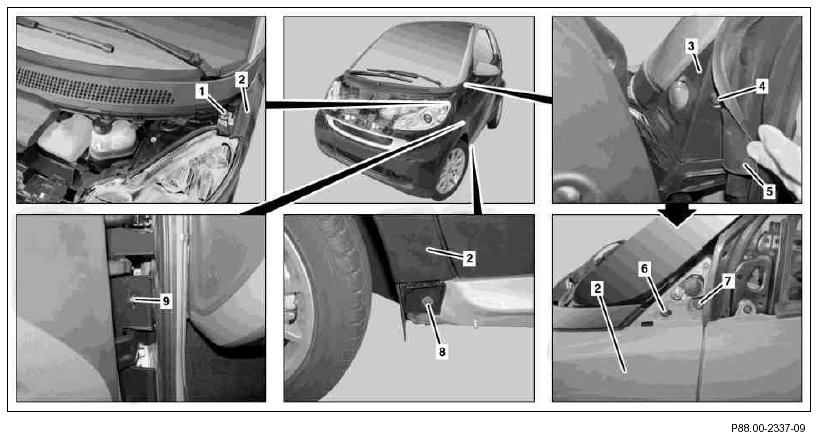

Work procedure shown on left side of vehicle
1. Unscrew bolt (1) on front CBS (2) in area of left front lamp unit.
2. Unscrew bolt (8) on front CBS (2) in area of rocker panel.
3. Remove antenna rod.
Only on left-hand side of the vehicle.

4. Open left door.
5. Press edge guard (5) in area of fender covering (3) to side and remove expansion clip (4).
6. Slightly slide fender covering (3) upward and remove from front CBS (2).
7. Unscrew bolts (6, 7) on front CBS (2).
Installation: Ensure that bushing is seated correctly in area of bolt (7).

8. Unscrew bolt (9) on front CBS (2) in area of door.
9. Fasten in reverse order
