AR88.10-P-1300MCU Remove/Install Fender Liner In Front Fender

AR88.10-P-1300MCU Remove/Install Fender Liner In Front Fender

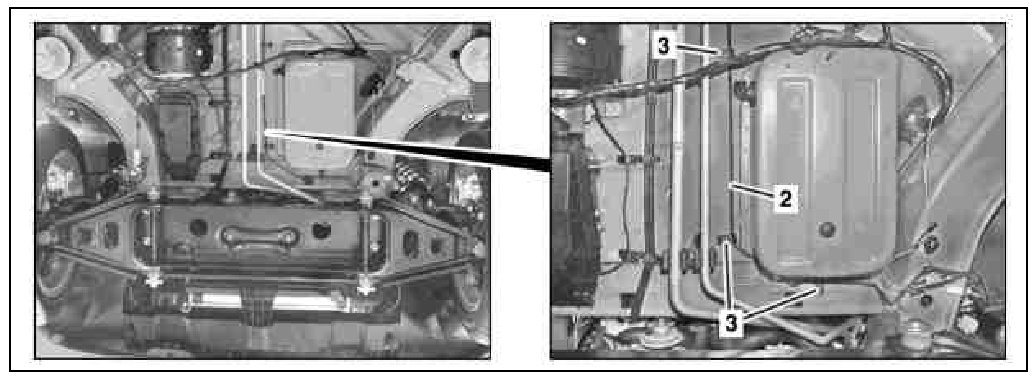

2 Brake line
3 Retaining clip

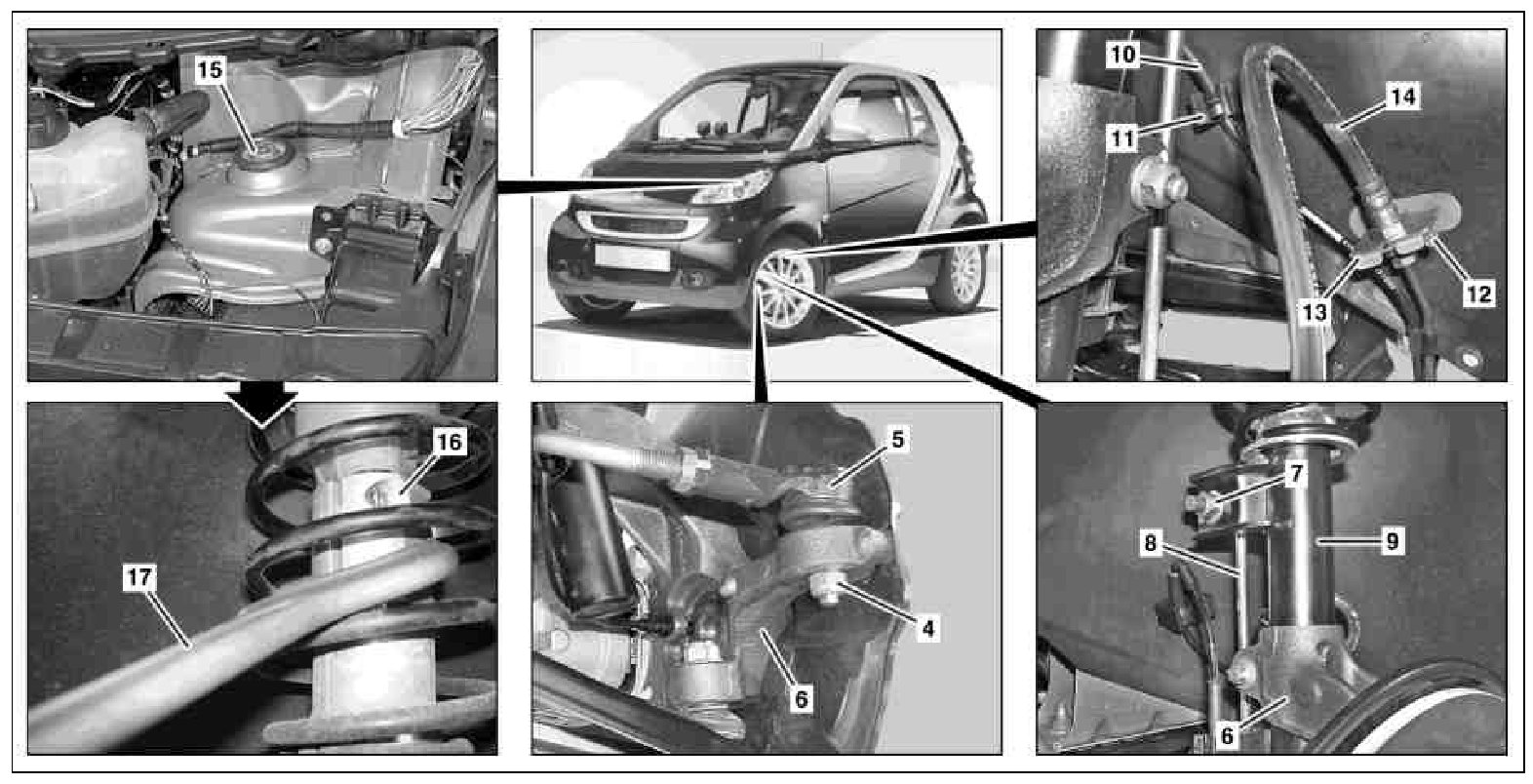

4 Nut
5 Tie rod end
6 Steering knuckle
7 Nut
8 Link rod
9 Suspension strut
10 Cable
11 Bracket
12 Retaining clamp
13 Bracket
14 Brake hose
15 Nut
16 Retaining device
17 Open end wrench

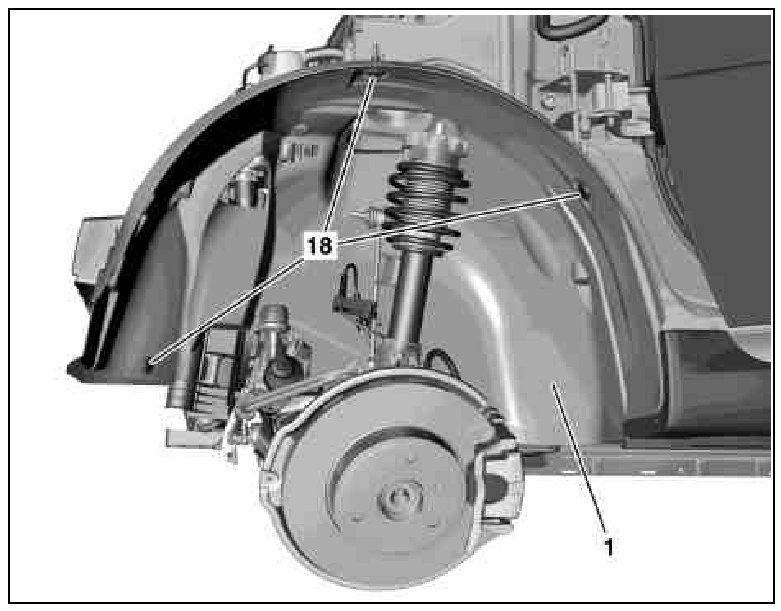

1 Fender liner
18 Expansion clip

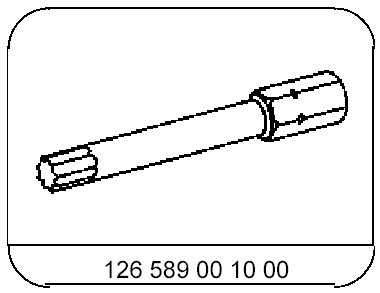

126 589 00 10 00, Screwdriver bit

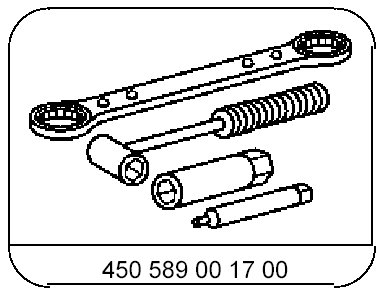

450 589 00 17 00, Tool assortment for stabilizer assembly

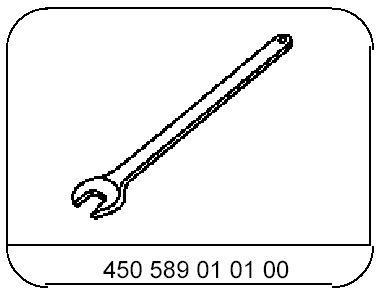

450 589 01 01 00, Open end wrench







450 589 01 33 00, Puller

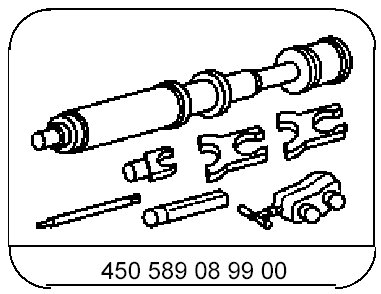

450 589 08 99 00, Assembly tool set

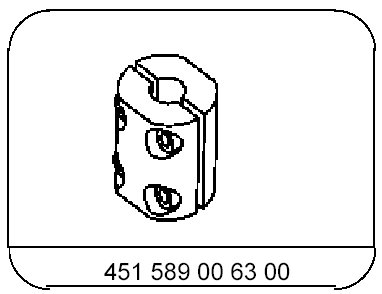

451 589 00 63 00, Holding device
