Trunk / Liftgate Stop: Service and Repair

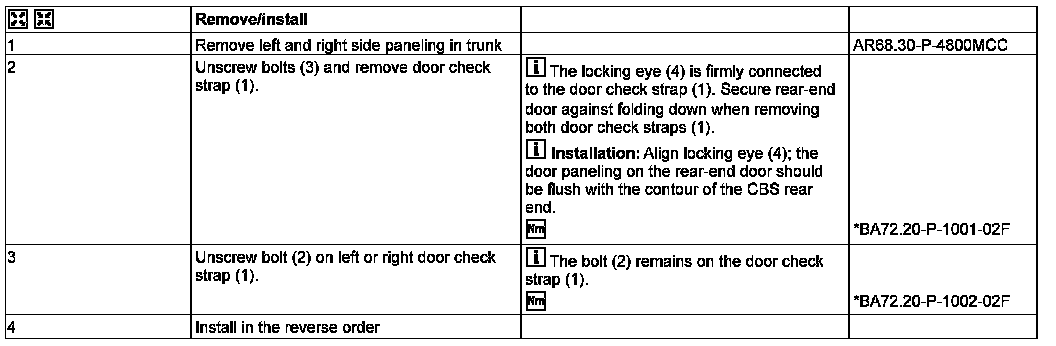

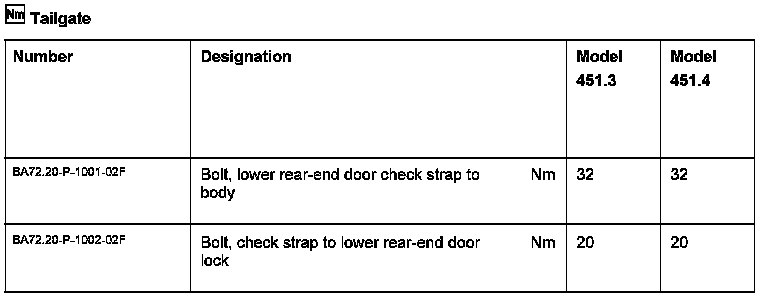

AR72.20-P-2570MCC Remove/Install Rear-end Door Check Strap

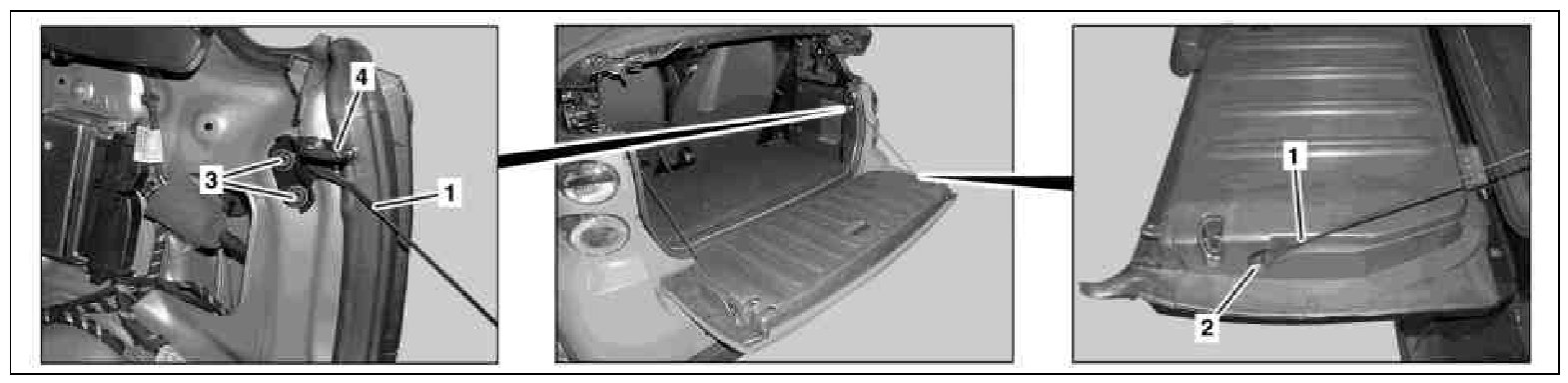

Shown on right side of vehicle on model 451.4







1 Door check strap
2 Bolt
3 Bolts
4 Locking eye
