Trunk / Liftgate Shock / Support: Service and Repair

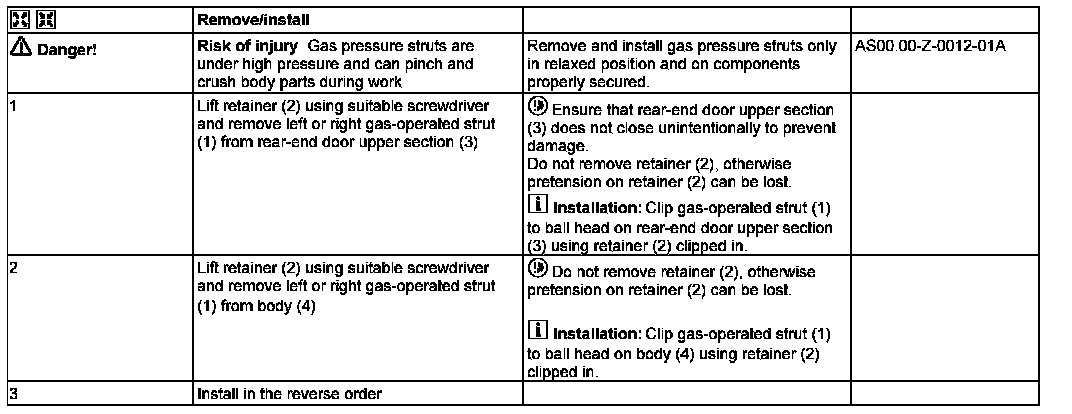

AR72.20-P-3600MCU Remove/Install Gas-Operated Strut To Rear-end Door

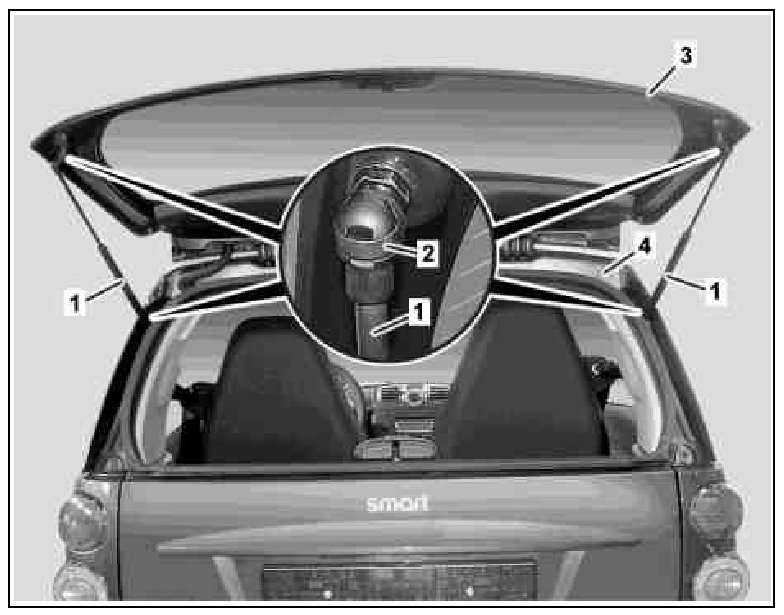

1 Gas-operated strut
2 Retainer
3 Rear-end door top
4 Bodywork
