AR72.20-P-2560MCC Remove/install rear-end door hinge (Bottom)

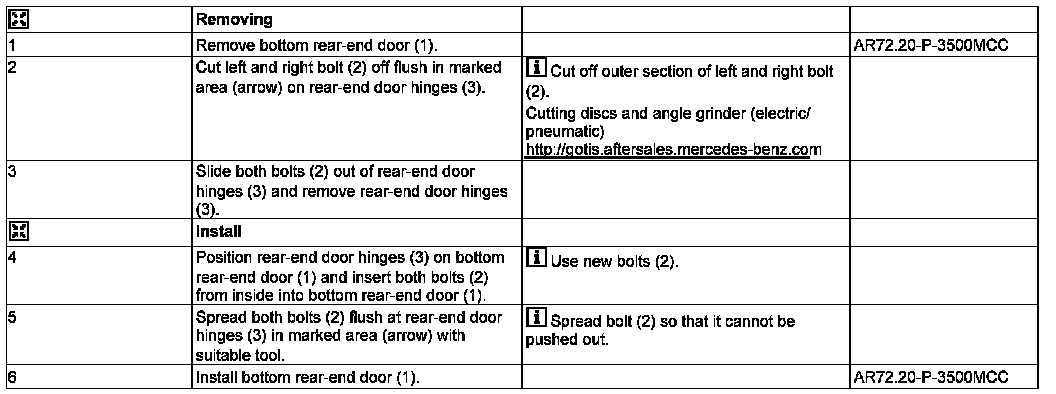

AR72.20-P-2560MCC Remove/Install Rear-end Door Hinge

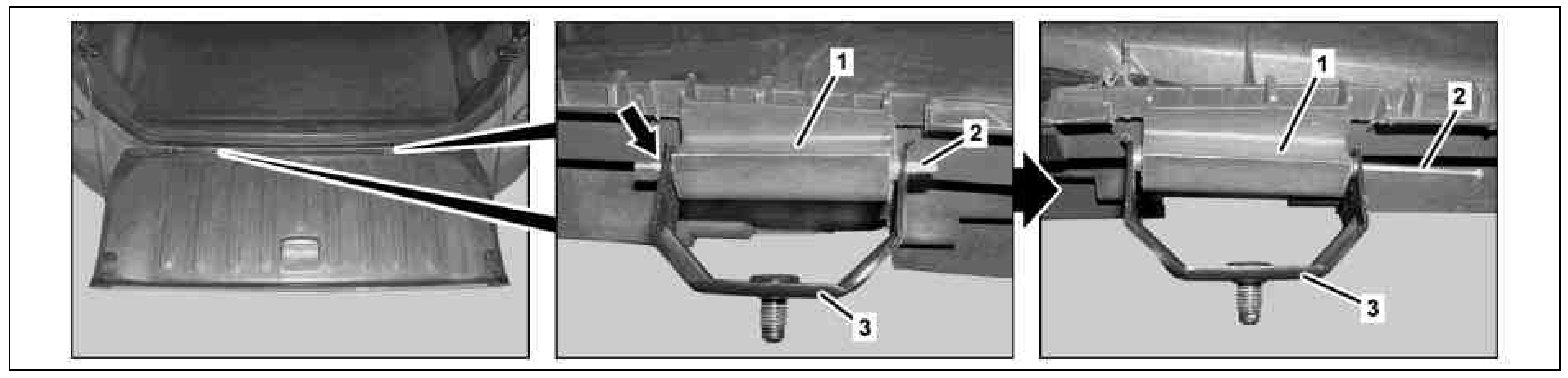

1 Rear-end door bottom
2 Pin
3 Door hinge for tailgate
