AR72.20-P-3500MCC Remove/install rear-end door (Bottom)

AR72.20-P-3500MCC Remove/Install Rear-end Door
- Bottom rear-end door

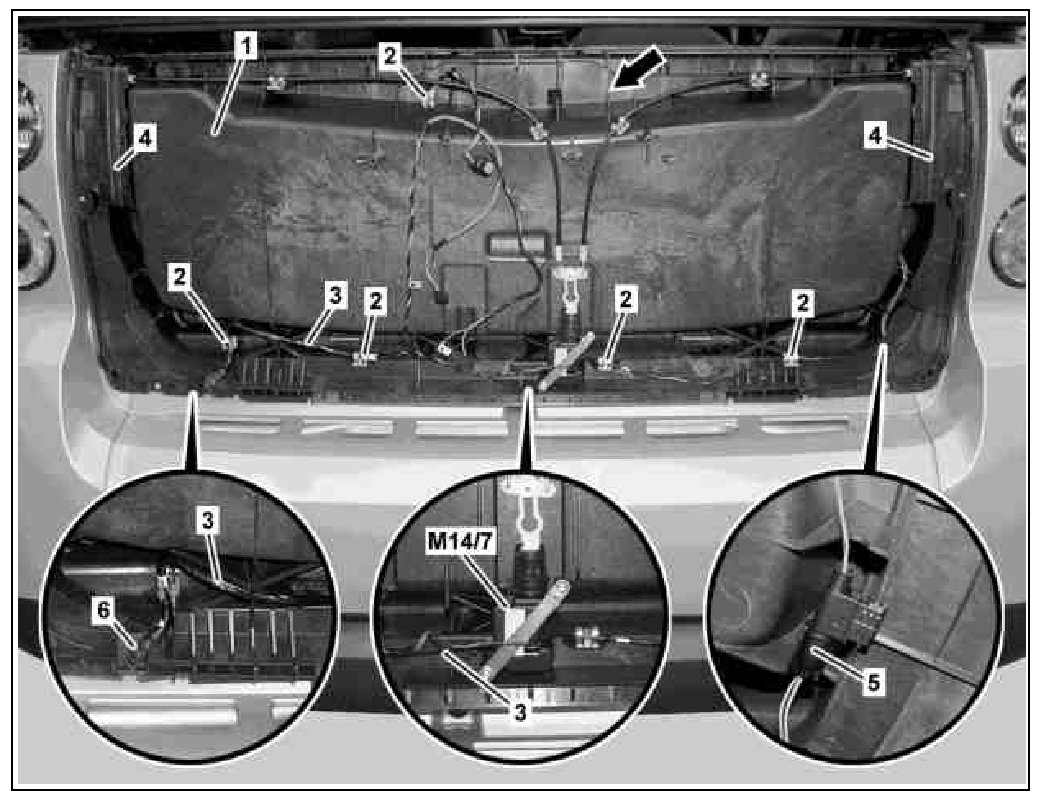

Illustrated on model 451.4







1 Rear-end door
2 Retaining clamp
3 Rear-end door wiring harness
4 Cover
5 Electrical connector
6 Grommet
M14/7 Rear-end door CL [ZV] motor

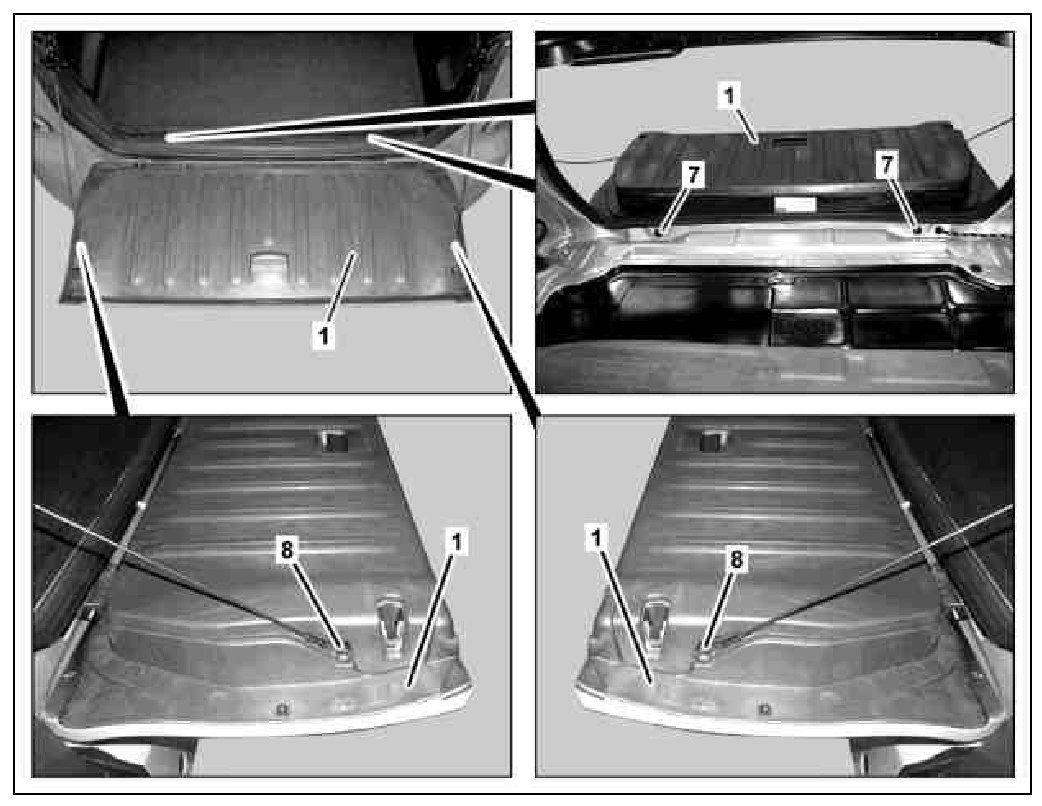

Illustrated on model 451.4







1 Rear-end door
7 Nut
8 Bolt
