AR88.60-P-2000MCC Remove/install tank recess

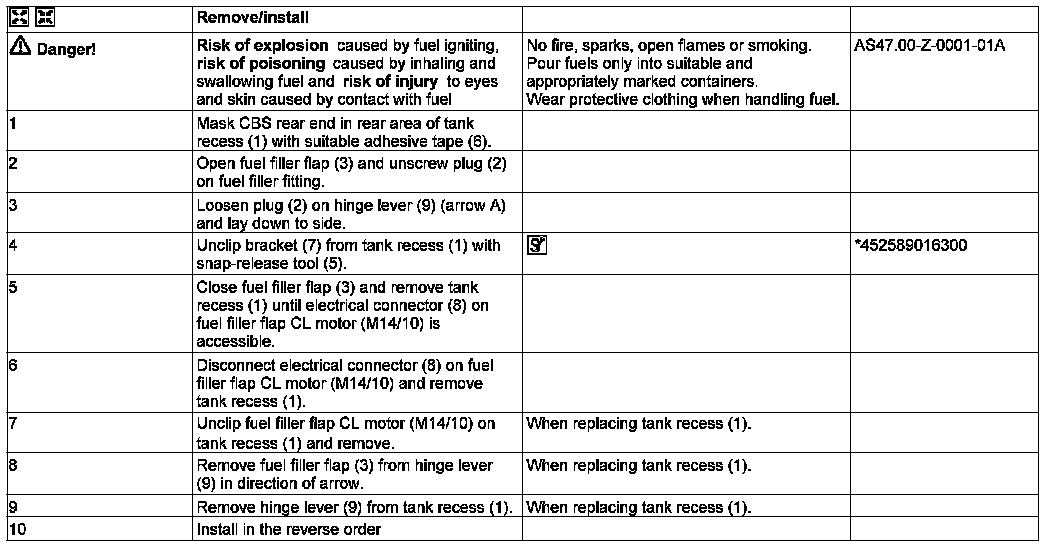

AR88.60-P-2000MCC Remove/Install Tank Recess

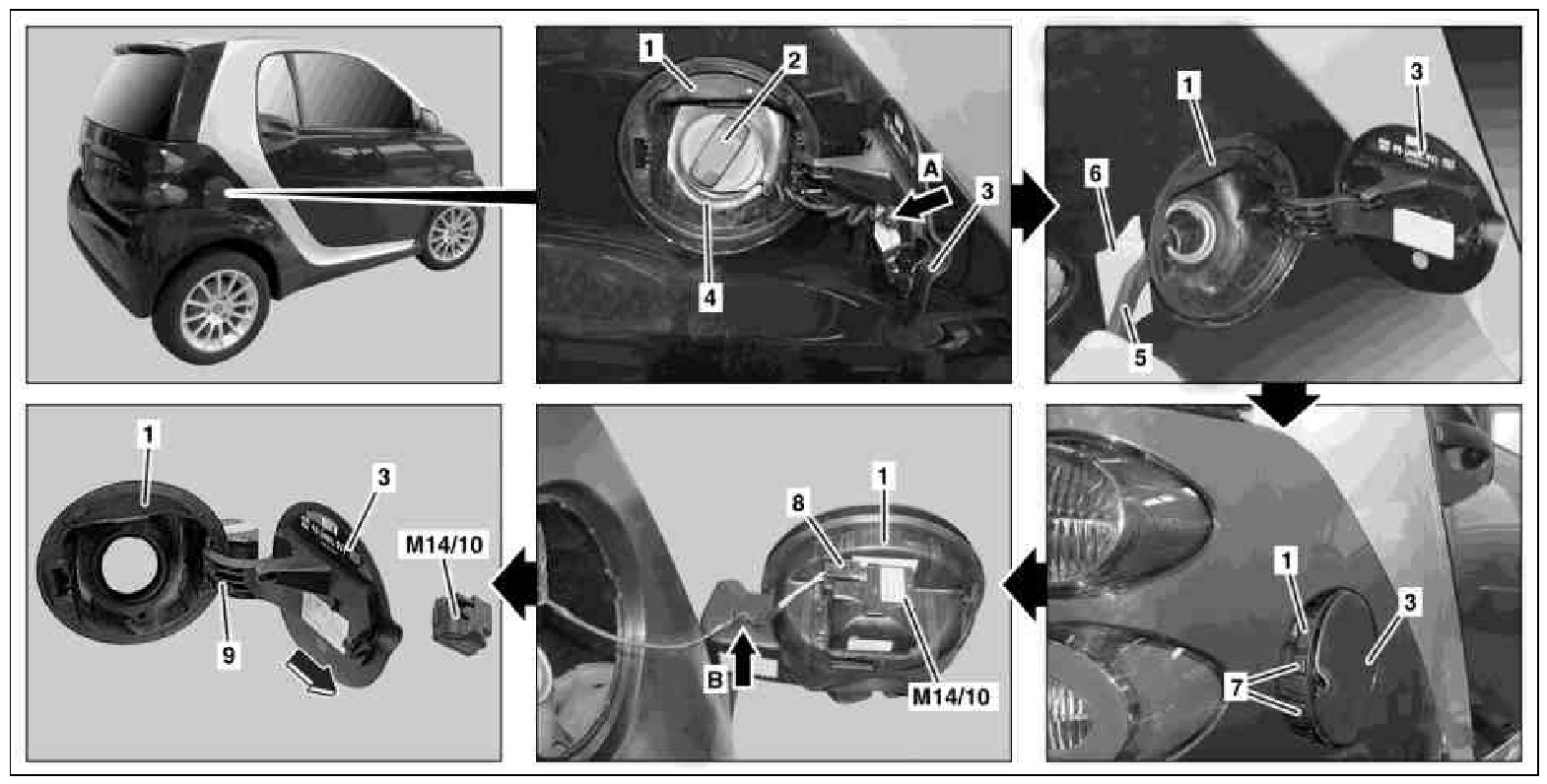

1 Tank recess
2 Catch
3 Fuel filler flap
4 Seal
5 Snap-release tool
6 Adhesive tape
7 Bracket
8 Electrical connector
9 Hinge bracket
M14/10 Fuel filler flap CL [ZV] motor

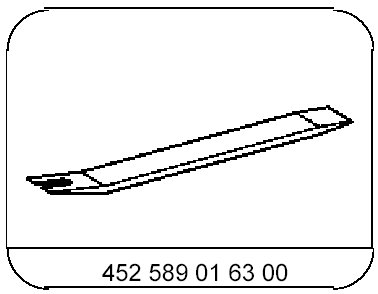

452 589 01 63 00, Snap-release tool
