AZ82.60-P-0003MCD Retrofit Radio

AZ82.60-P-0003MCD Retrofit Radio
- MODEL 451.3 /4 as of 31.8.10 with CODE (C08) Radio preinstallation incl. rod antenna (FFO)

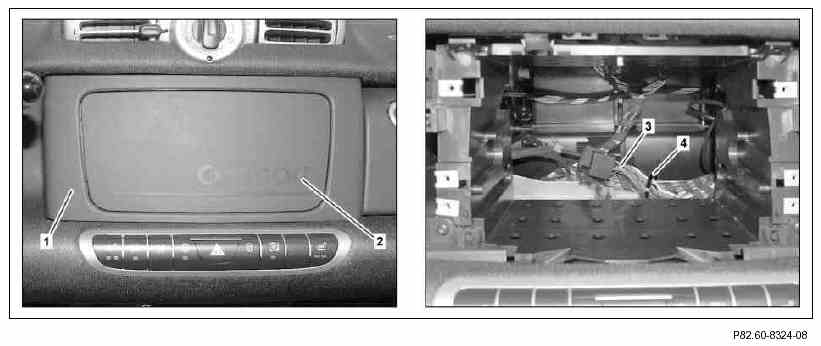

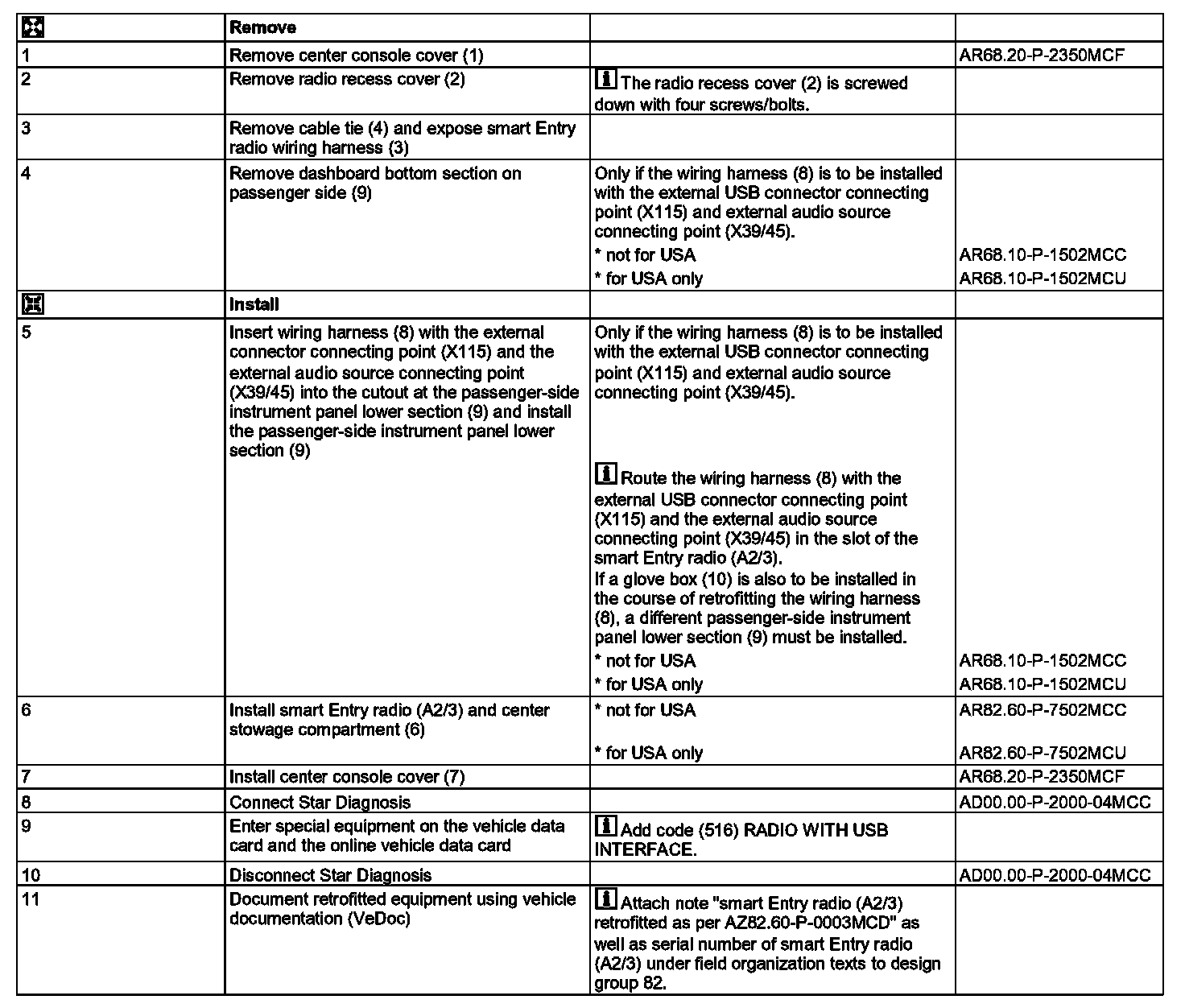

1 Center console cover
2 Radio recess cover
3 smart Entry radio wiring harness
4 Cable tie







Parts scope for smart Entry radio (A2/3)
5 Operating instructions
6 Center stowage compartment
7 Center console cover
A2/3 smart Entry radio

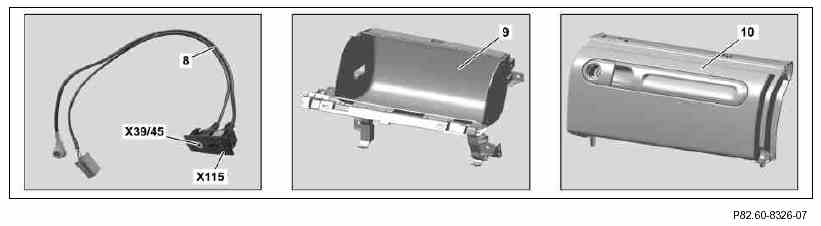

Parts scope for external USB connector connecting point (X115) and external audio source connecting point (X39/45)
8 Wiring harness
9 Dashboard lower section on passenger side
10 Glove compartment
X39/45 External USB connector connecting point
X115 External audio source separation point
