Antitheft System - Replace Microwave Sensor

Date: June 25, 2012

Order No.: SM-B-80.50/01

Group: 80

SUBJECT:
Model 451 up to 03.20.12 with Code V01 Anti-Theft Alarm System (FFO)

Replace Microwave Sensor

The as-built configuration of the microwave sensor has changed. Only the microwave sensor with 6-pin connection is now available from parts.

Therefore, for vehicles up to production date 3.20.2012, a new connector housing (A 038 545 72 28) with new holder (A 451 820 05 14) has to be used when replacing the microwave sensor.

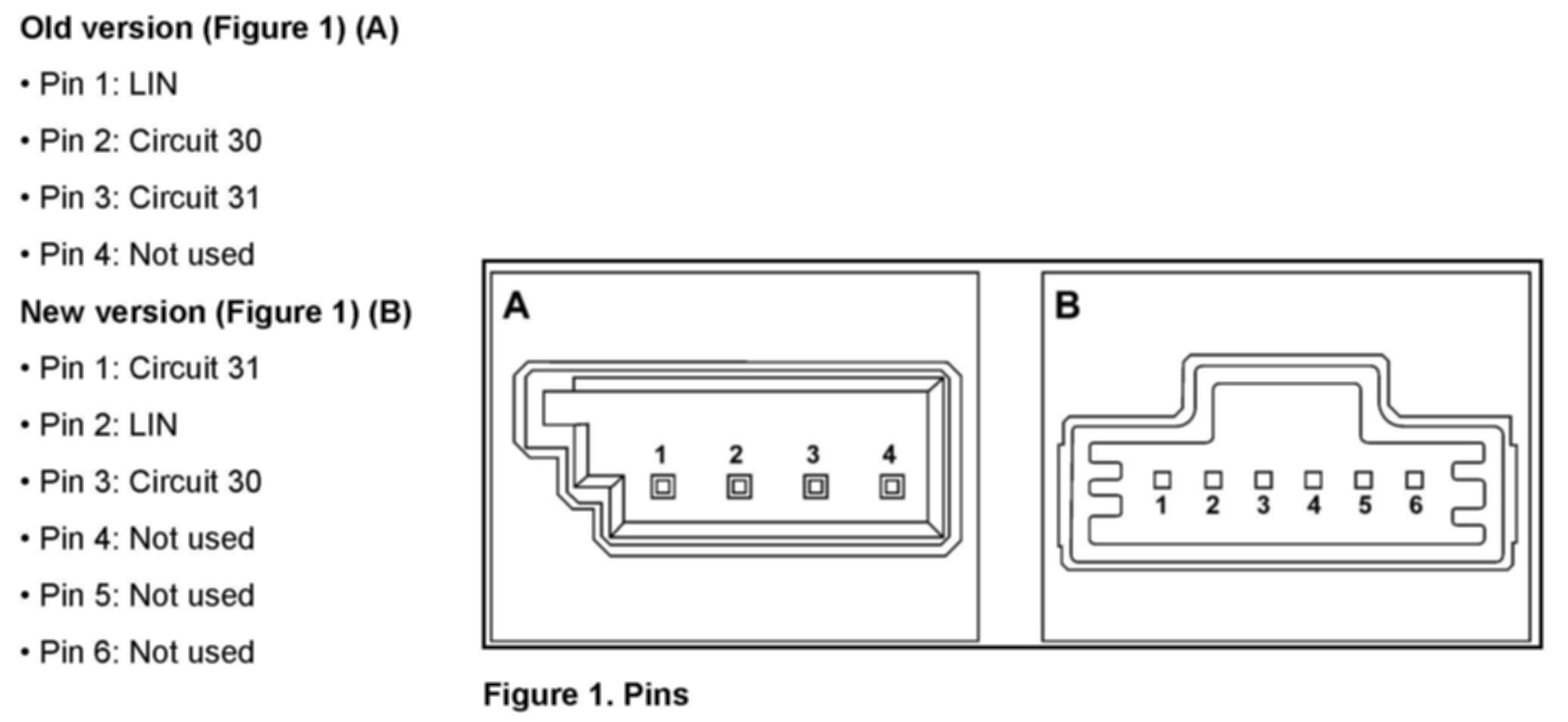

Convert the connector housing on the wiring harness as shown above.

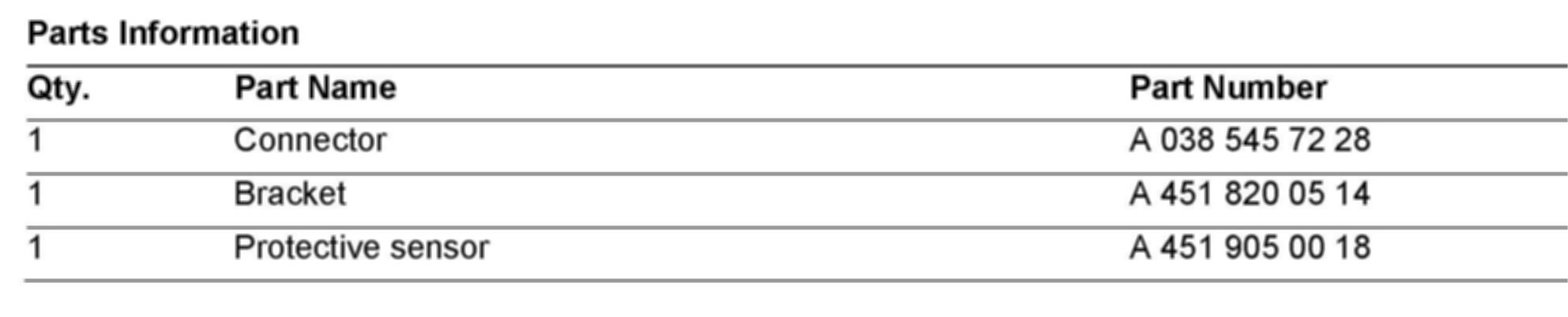

Parts Information
