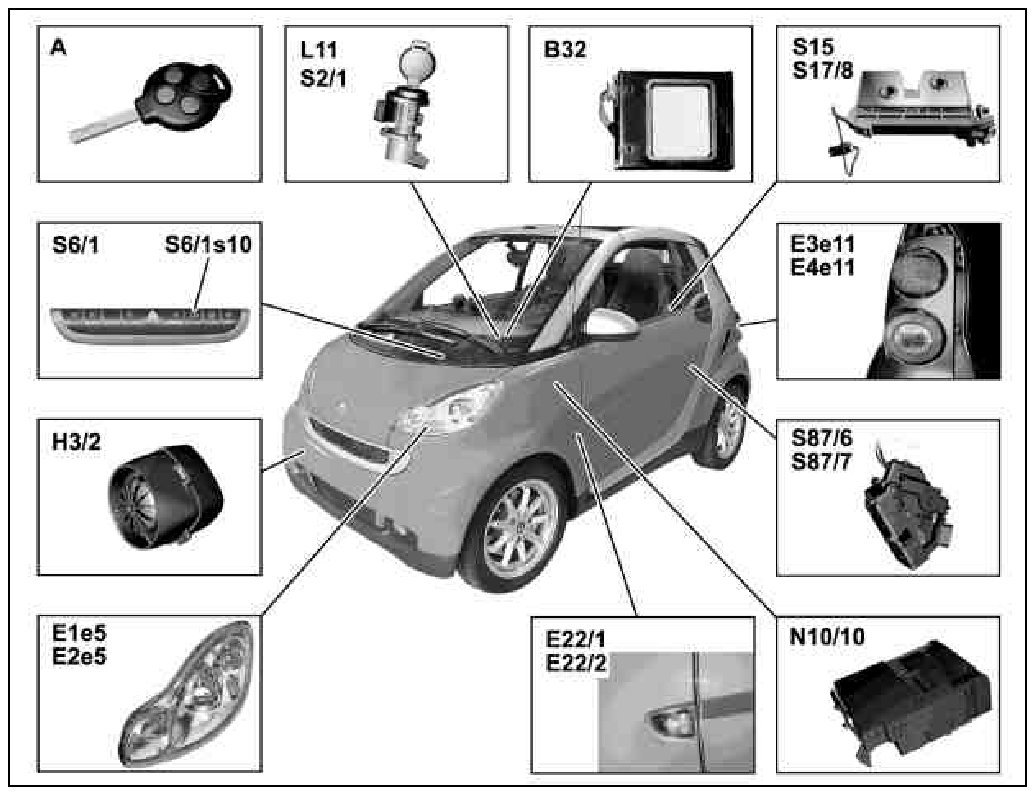

GF80.50-P-0001-02MCU Anti-theft alarm system (ATA), location of components

GF80.50-P-0001-02MCU Anti-theft Alarm System (ATA), Location Of Components







B32 Microwave sensor
E1e5 Left turn signal lamp
E2e5 Right turn signal lamp
E3e11 Left brake/turn signal light
E4e11 Right brake/turn signal light
E22/1 Left additional turn signal lamp
E22/2 Right additional turn signal lamp
H3/2 Alarm siren with inclination sensor
L11 Transponder coil
N10/10 SAM control unit
S2/1 Ignition/starter switch
S6/1 Cockpit switch group
S6/1s10 Tow-away protection/interior protection switch
S15 Remote trunk opening switch (on model 451.3)
S17/8 Trunk lid rotary tumbler microswitch (on model 451.4)
S87/6 Right door rotary tumbler microswitch
S87/7 Left door rotary tumbler microswitch
A Transmitter key
