Alarm Horn: Service and Repair

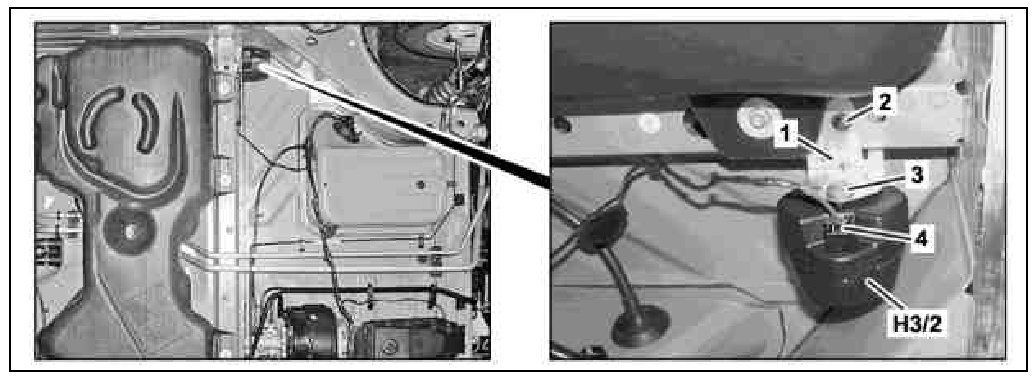

AR80.50-P-9840MCC Remove/Install ATA Alarm Siren
- with CODE (V01) Antitheft alarm system (FFO)
1
Bracket
2
Screw
3
Screw
4
Electrical connector
H3/2
Alarm siren with inclination sensor
