Drive Motor Mount: Service and Repair

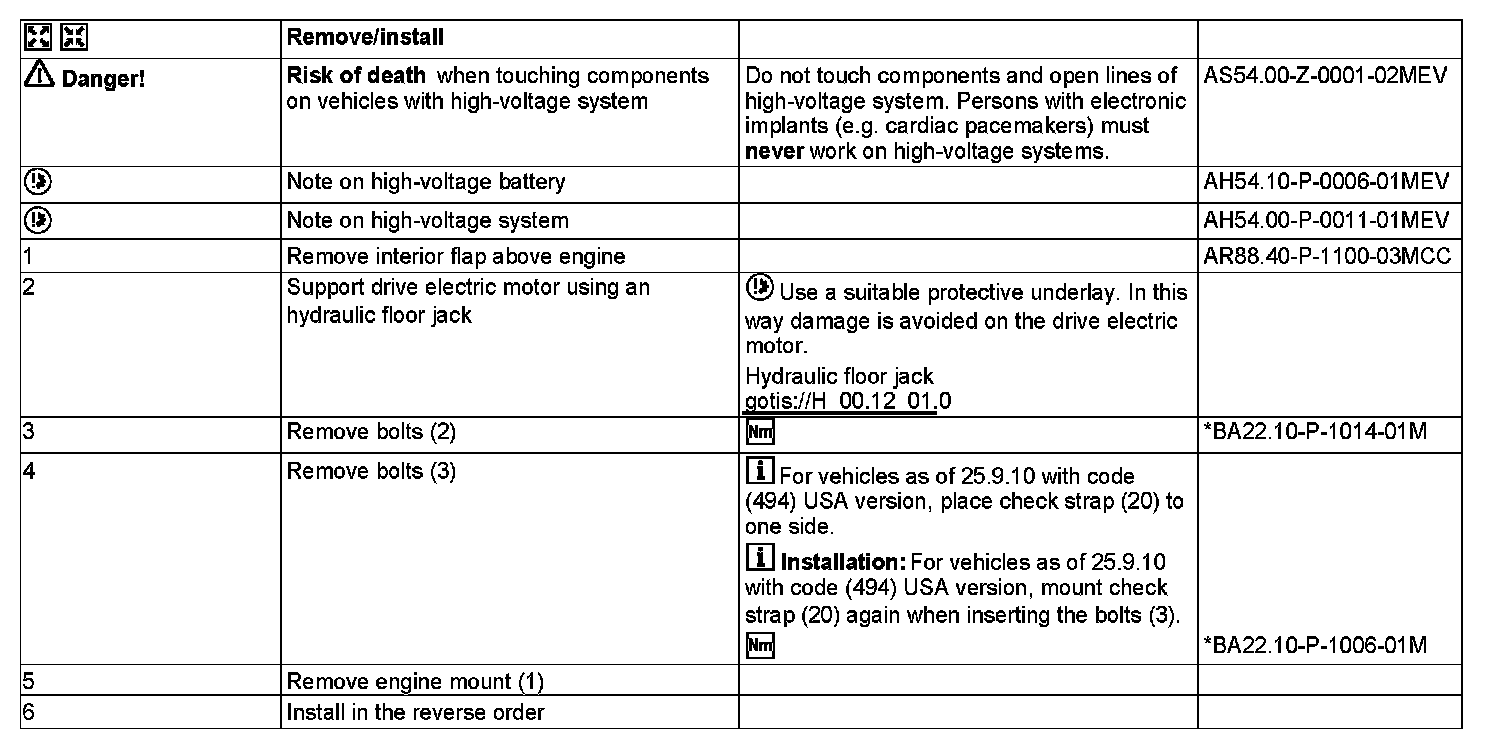

AR22.10-P-1102MEV Remove/install Right Engine Mount
- ENGINES 780.009 in MODEL 451.391 /491

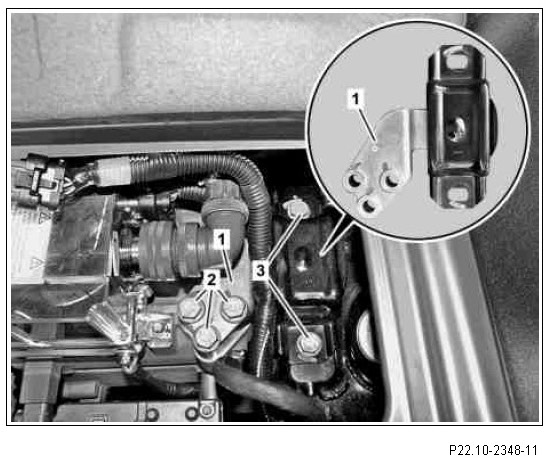

1 Engine mount
2 Bolts
3 Bolts







3 Bolts

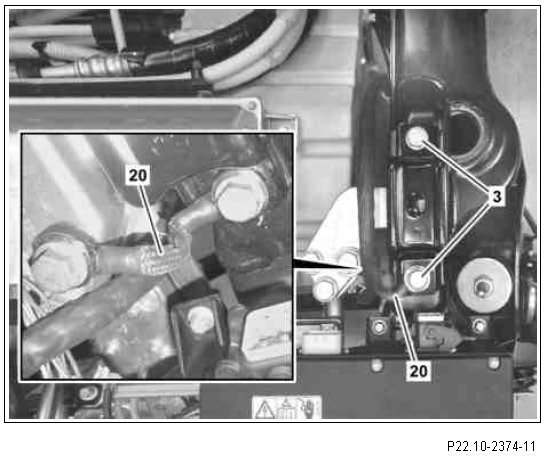

20 Check strap (only for code (494) USA version as of 25.9.10)
