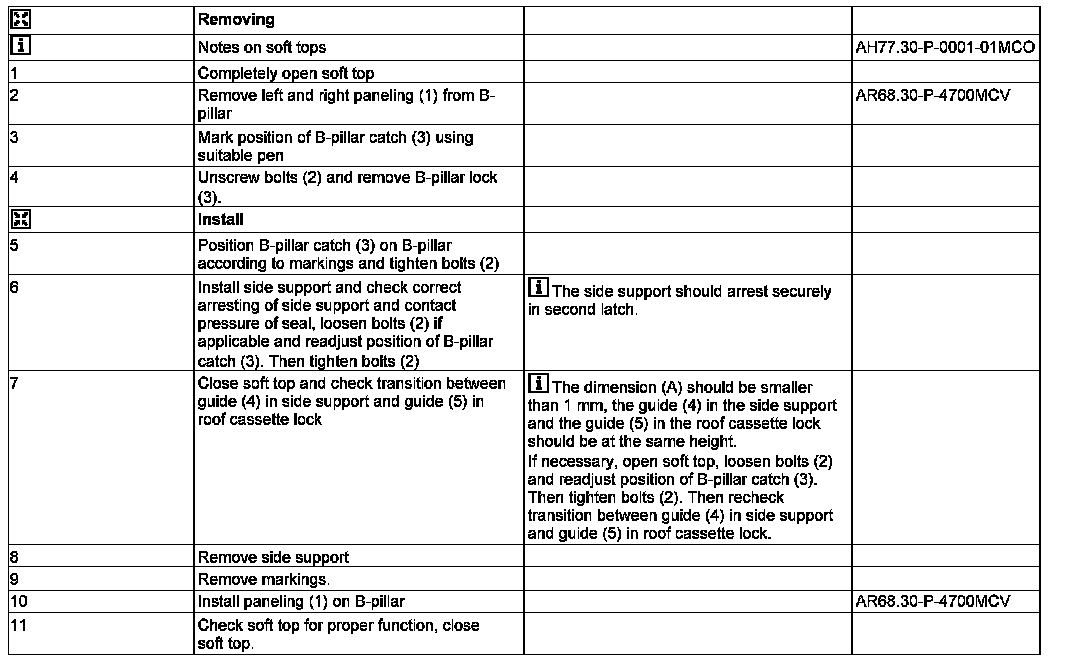

AR77.33-P-2100MCU Remove/install B-pillar catch

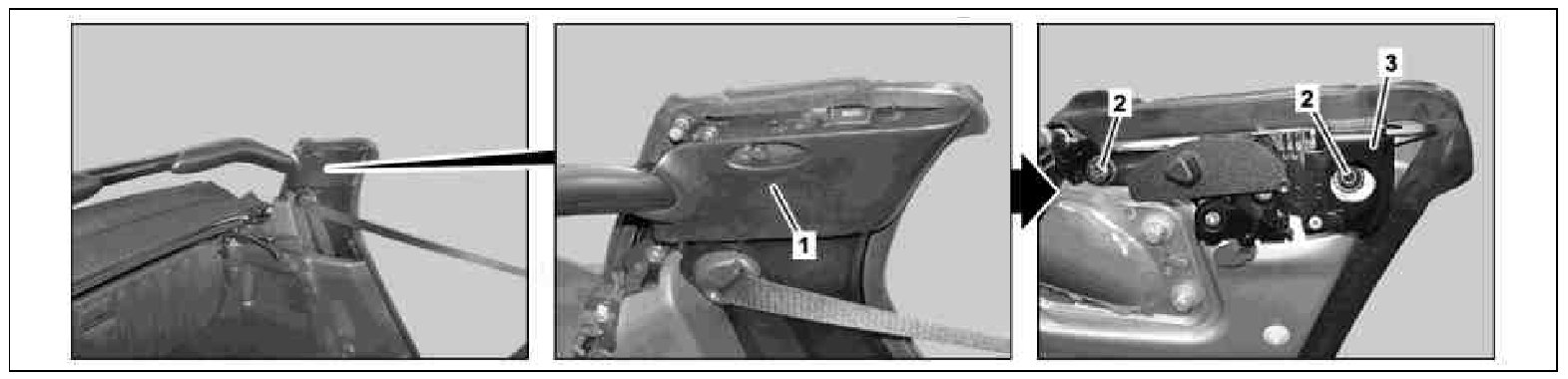

AR77.33-P-2100MCU Remove/Install B-Pillar Catch







1 Trim
2 Screw
3 B-pillar catch







4 Guide
5 Guide

Dimensions:
A <1 mm
